Description

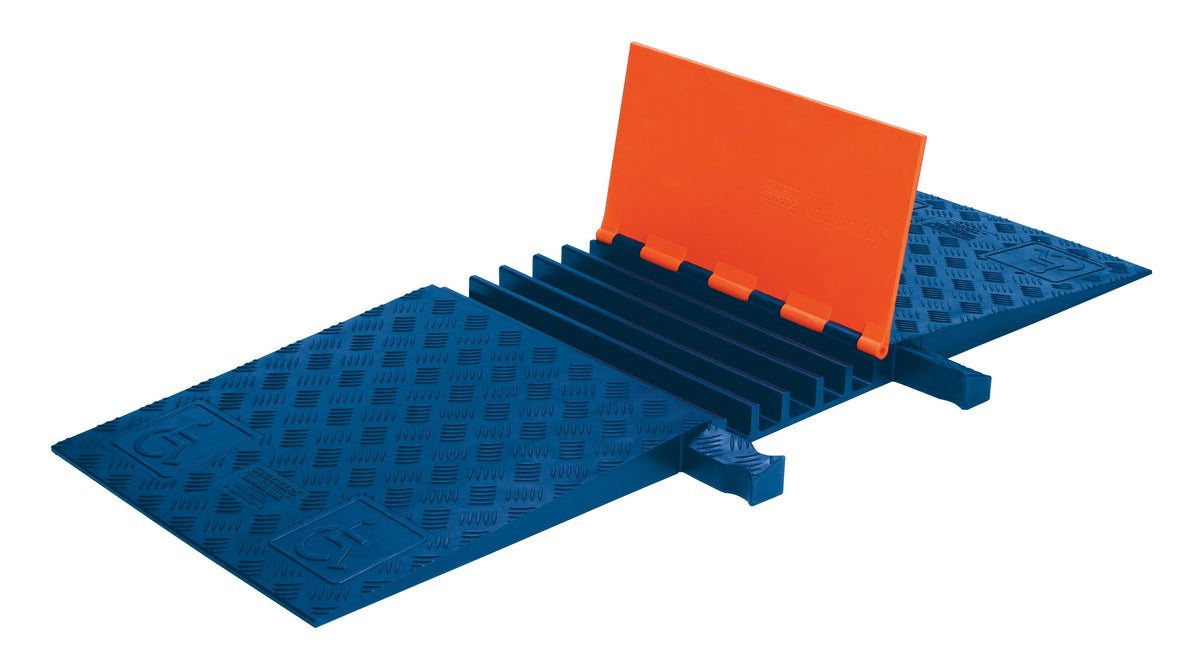

Made of all-weather polyurethane and featuring a patented 5-bar tread surface. Guard Dog's 5-channel ADA cable protectors are equipped with built-in accessibility ramps. This allows them to provide safe passage for both vehicle and foot traffic without the need for separate connectors. Featuring a modular, interlocking design available in lightweight 18" sections, this protector is ideal for virtually any use.
A reinforced hinged lid allows for easy cable placement, while a recessed carrying handle on the protector's underside makes transportation easy. The product is compatible with all standard 5 channel Dog Bone Connector Models, meaning you don't need specialized equipment in order to extend it to whatever length you need.
Personalize cable protectors with your logo or colors. Request a quote now.
Specifications
| Model No | GD5X125-ADA-O/B / GD5X125-ADA-B/B / GD5X125ADAO/BLU | Brand | Checkers Safety™ | Quantity Included | 1 |
|---|---|---|---|---|---|
| Load Capacity Per Axle | 21000 lbs | Load Capacity Per Tire | 10500 | Length (Inches) | 18 |
| Width (Inches) | 50 | Height (Inches) | 1.875 | Max Cable Outside Diameter (Inches) | 1.325 |
| Number of Channels | 5-Channels | Connector Type | Dog Bone Connector | Channel Width | 1.339 |
