NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE
With Installed Accessories: 38RG (Reg & Gauge)
NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

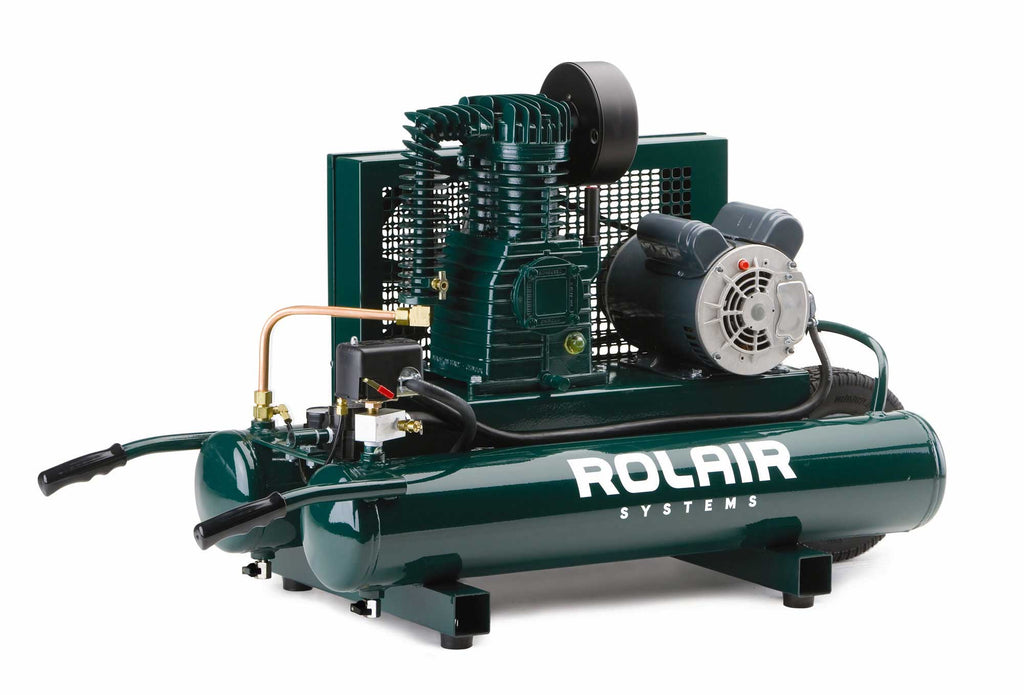

Model 6820MK103D is a sister model to 6820K17D. This model provides nearly as much air as the 6820K17D and is equipped with a dual-voltage switch, allowing you to run on 110 or 220 Volt as needed.
NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE
Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon ASME Tank.
NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE
ABOUT THE PUMP
Heavy Duty, Two Cylinder, Single Stage, Splash Lubricated, High-Efficiency Reed Valve Design, Aluminum Alloy Connecting Rods, Multi-Finned 10" Flywheel, Oil Sight Gauge and 17 oz. Oil Reservoir
ABOUT THE MOTOR
2 HP, 1740 RPM, Open Drip Proof, 115/230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset
STANDARD EQUIPMENT
- Dual Control Operation
- Square D Pressure Switch w/Unloader
- Pressure Gauge 0-200 in 5 lb. Graduations
- Accessory Support Clip
- Intake Filter with Silencer and Replaceable Element
- Air-Cooled Aftercooler
- Totally Enclosed Steel Belt Guard
- Safety Relief Valve

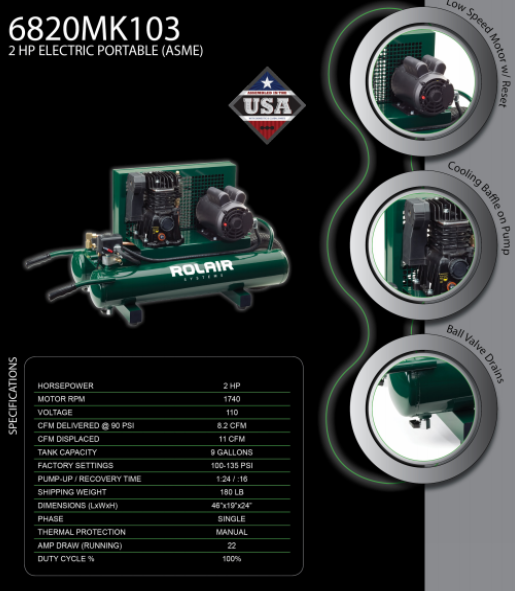

| HORSE POWER | 2 HP |
| CFM DISPLACED | 11.0 CFM |
| CFM DELIVERED | 8.2 CFM @ 90 PSI |
| PUMP/MOTOR RPM | 1740 RPM |
| OVERLOAD PROTECTION | Yes (Manual Reset Standard) |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 17 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| TANK CAPACITY | 9 Gallons |
| L X W X H | 46"x19"x24" |
| DECIBEL RATING | Unavailable |
