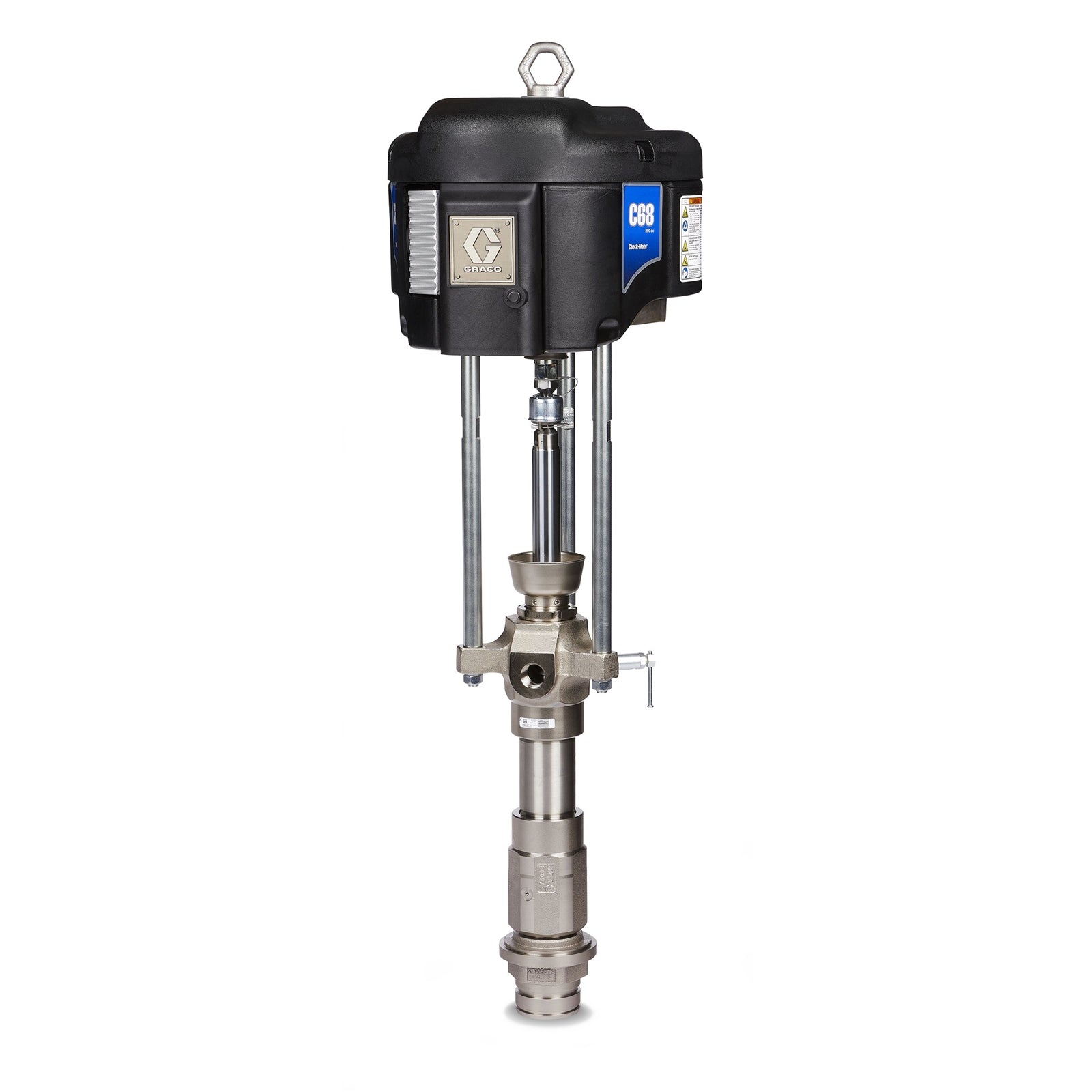

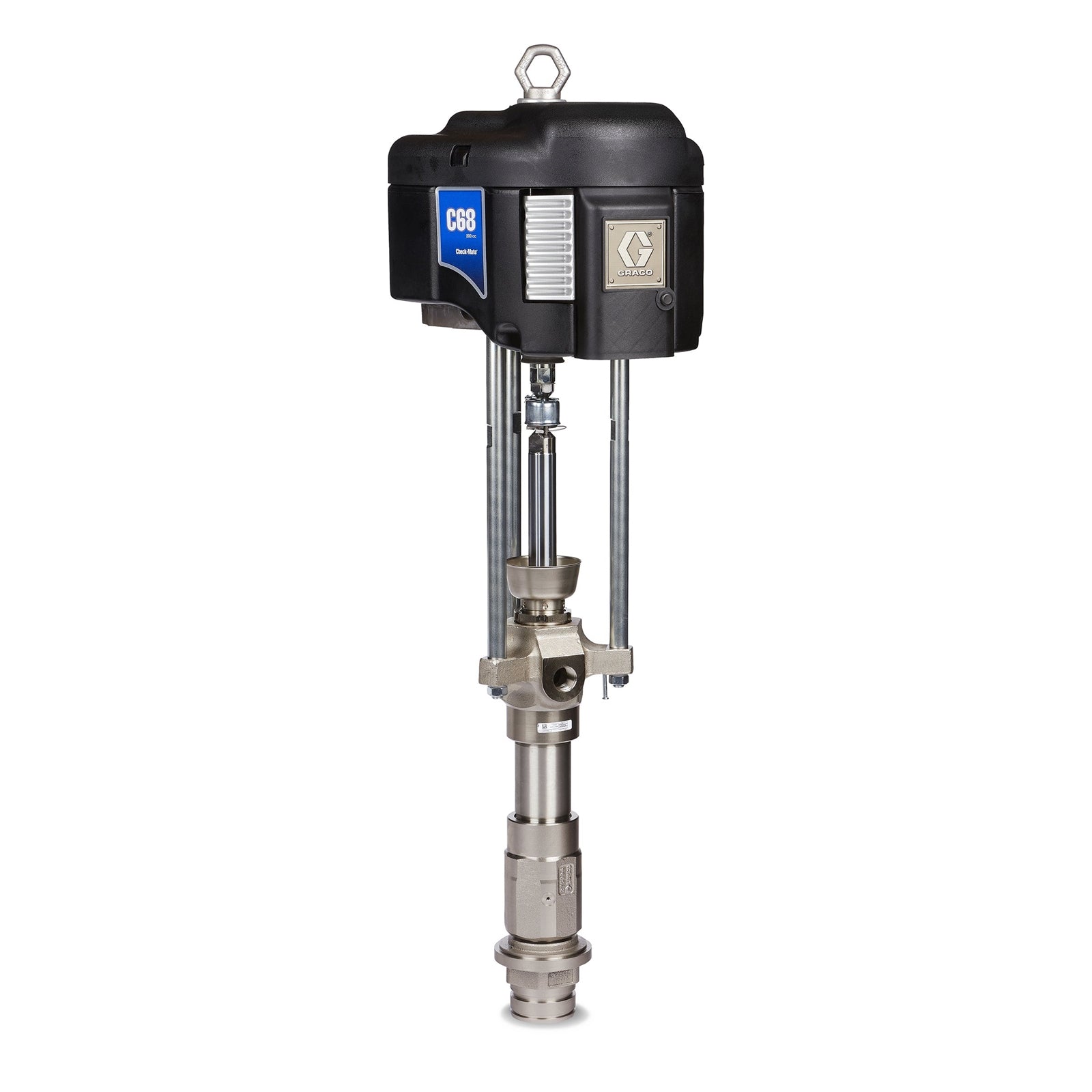

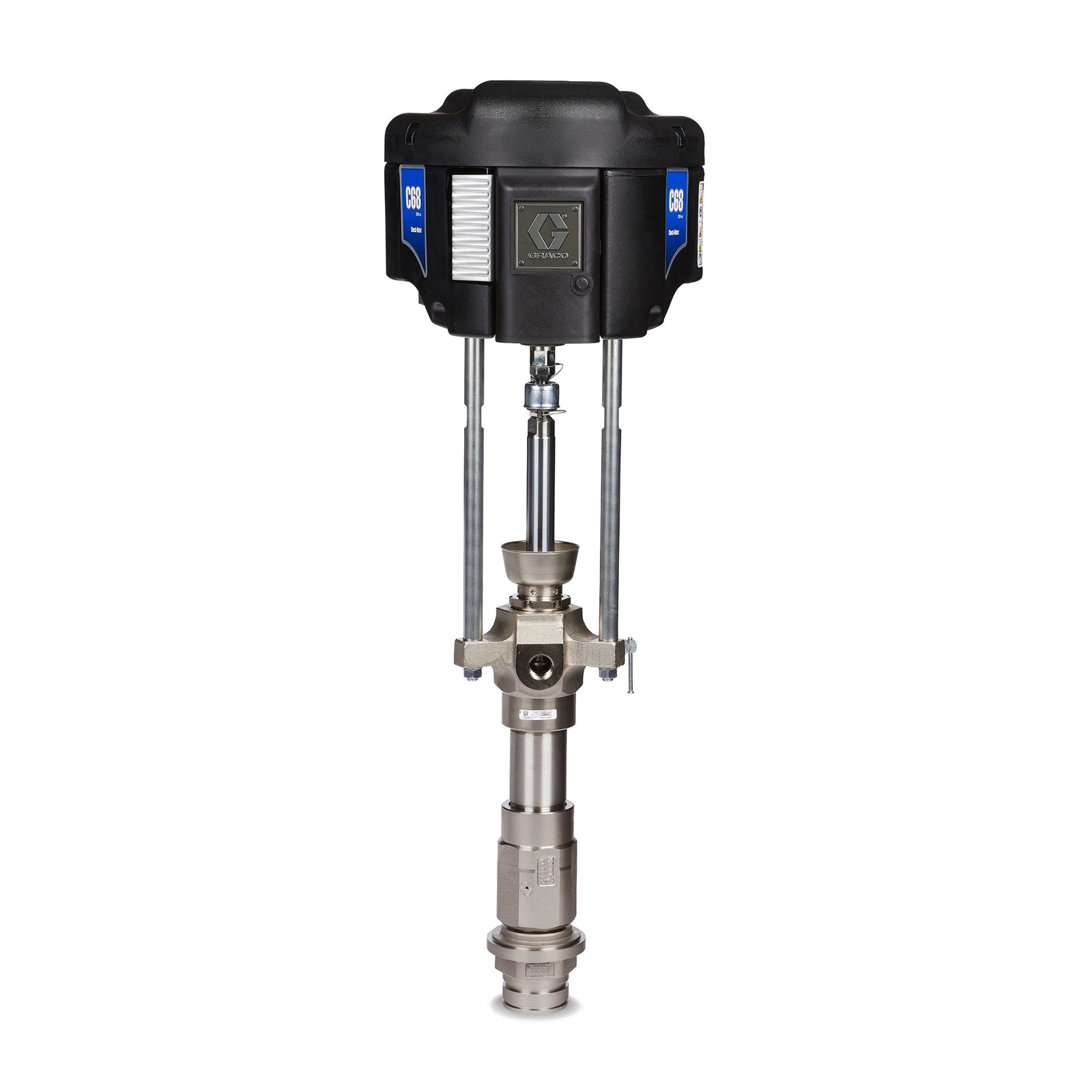

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Features
- NXT 6500 Air Motor Low Noise, Remote Data TrackModular design for easier maintenanceRugged body armor won't rust or dentHighest technology air motor on the market
- Low Noise, Remote Data Track
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
- 200cc Check-Mate Lower Severe Duty coatings on rods and cylinder Extends production time
- Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection Quick-disconnect coupler for easy maintenance
- Quick-disconnect coupler for easy maintenance
- 1"-11 1/2 NPT Female outlet
- Replaceable Seat Minimizes service costs
- Minimizes service costs
- Cast Outlet and Inlet Housing Improves structural integrity
- Improves structural integrity
- NEW Xtreme® Coupler Quick-disconnect coupler for easy maintenance
- Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting Reduces repair costs
- Reduces repair costs
- Piston Valve with Floating Piston Seal For maximum pressure balance over a range of material viscosities
- For maximum pressure balance over a range of material viscosities
- Replaceable Seat Minimizes service costs
- Minimizes service costs
Specifications
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard, DataTrak Monitor |
| Material | Carbon Steel |
| Maximum Working Pressure (psi) | 6200 |
| Model | Check-Mate |
| Pump Ratio | 68:1 |
| Type | Piston Pump Package |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4000 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard, DataTrak Monitor |
| Material | Carbon Steel |
| Maximum Working Pressure (bar) | 434 |
| Model | Check-Mate |
| Pump Ratio | 68:1 |
| Type | Piston Pump Package |
