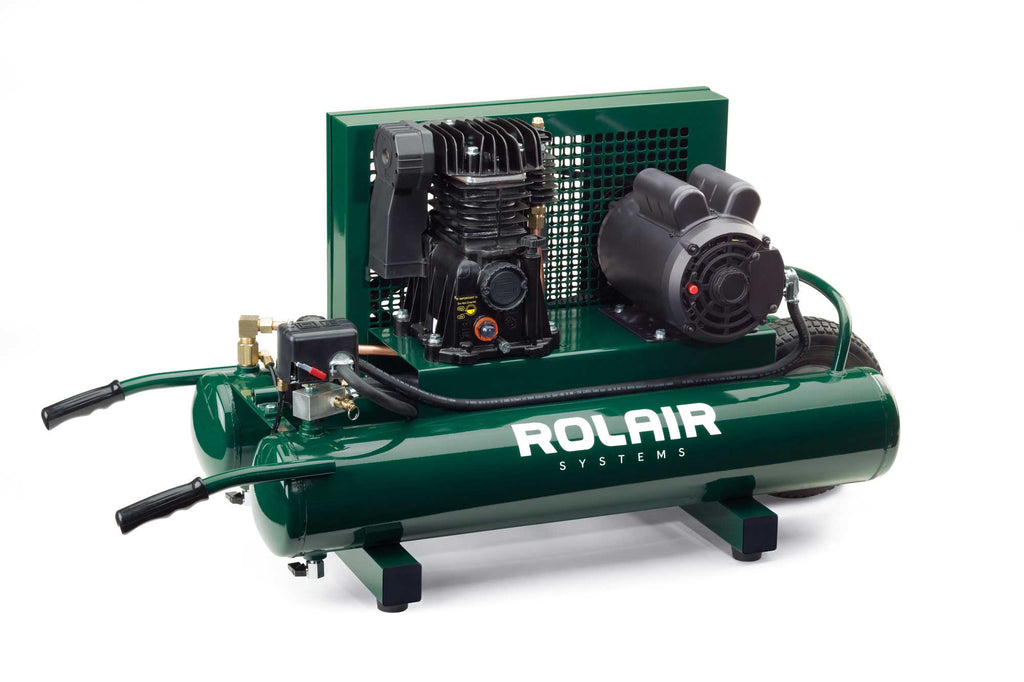

Rolair Systems 90 PSI @ 7.3 CFM Single Stage 115/230 Volt – 60 Hz 1.5HP 9gal. Electric Belt Drive Air Compressor
Rolair Systems 90 PSI @ 7.3 CFM Single Stage 115/230 Volt – 60 Hz 1.5HP 9gal. Electric Belt Drive Air Compressor

Rolair Systems 90 PSI @ 7.3 CFM Single Stage 115/230 Volt – 60 Hz 1.5HP 9gal. Electric Belt Drive Air Compressor

Regular price
$2,128.00
Sale price
$2,128.00
Quantity must be 1 or more


NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

 With Installed Accessories: 38RG (Reg & Gauge) & 450DV (Dual Voltage)

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

Model 5715MK103 is the entry-level choice when the job calls for more air than a direct drive can offer. Capable of running on a 20 Amp breaker, this model will deliver 7.3 CFM, doubling the output of many direct-drive units. Additionally, the low-RPM pump and motor combine for quiet operation.

Optional Equipment: Filter-Regulator-Lubricator Sets, Dual Voltage Switch, Dual Control Operation.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

ABOUT THE PUMP
Heavy Duty, Two Cylinder, Single Stage, Splash Lubricated, High-Efficiency Reed Valve Design, Aluminum-Alloy Connecting Rods, Multi-Finned 10" Flywheel, Oil Sight Gauge and 17 oz. Oil Reservoir

ABOUT THE MOTOR
1.5 HP, 1755 RPM, Low Speed, Open Drip Proof, 115/230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset

STANDARD EQUIPMENT

  • Pressure Gauge 0-200 in 5 lb. Graduations
  • Square D Pressure Switch with Unloader
  • Accessory Support Clip
  • Intake Filter with Silencer and Replaceable Element
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Safety Relief Valve

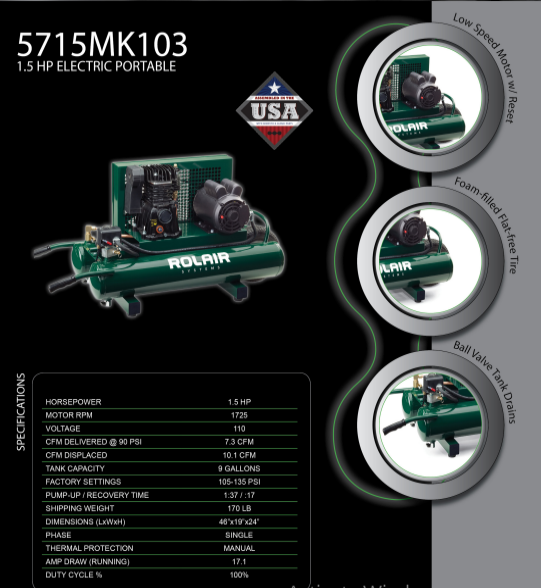

HORSE POWER 1.5 HP
CFM DISPLACED 10.1 CFM
CFM DELIVERED 7.3 CFM @ 90 PSI
PUMP/MOTOR RPM 1725 RPM
OVERLOAD PROTECTION Yes (Manual Reset Standard)
LUBRICATION TYPE Splash Lubrication
PUMP OIL CAPACITY 17 oz.
REED VALVE SYSTEM Yes (Standard)
NUMBER OF CYLINDERS 2
TANK CAPACITY 9 Gallons
L X W X H 46"x19"x24"
DECIBEL RATING Unavailable

;
