Description

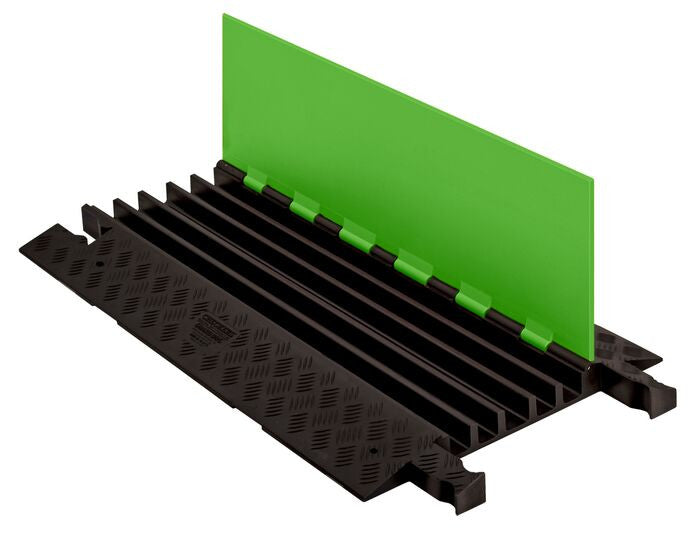

The Hi-Viz Green Guard Dog 5-Channel Cable Protector (model GD5X125- FLG/B) features a hinged lid, a modular, interlocking design, and the capacity to protect up to five cables and hoses with an outside diameter of up to 1.325". Its all-weather polyurethane construction gives it unmatched durability, and with the use of Dog Bone connectors, it can extend to any length. It also features a 5-bar tread surface, ensuring maximum traction for both vehicles and pedestrians.
Personalize cable protectors with your logo or colors. Request a quote now.
The Hi-Viz green coloring was created specifically for situations requiring high visibility, using SafeRay™ Technology that provides the best day and night visibility.
Because of its durability, it's equally suited for both commercial and industrial applications. Use it to keep electrical cables at an amusement park out of harm's way or protect critical hose lines from passing vehicles at an industrial site. Either way, it's more than up to the task, and its four through-holes ensure it can easily be secured to the base surface for a longer-term installation.
Customers use the GD5X125 model to maintain compliance with NEC Article 525 and OSHA 1910.305 regulations, and more. Each cable protector includes two warning labels for added precautions and safety - a trip hazard warning and an electrical power hazard warning. It is Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
Cable protectors ship assembled and ready for immediate use. Read More
Specifications
| Model No | GD5X125-FLG/B | Brand | Checkers Safety™ | Color | Green Lid / Black Base |
|---|---|---|---|---|---|
| Quantity Included | 1 | Pallet Quantity | 50 | Load Capacity Per Axle | 21000 lbs |
| Load Capacity Per Tire | 10500 | Length (Inches) | 39.5 | Width (Inches) | 19.5 |
| Height (Inches) | 2.13 | Max Cable Outside Diameter (Inches) | 1.325 | Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector | Channel Width | 1.339 |
