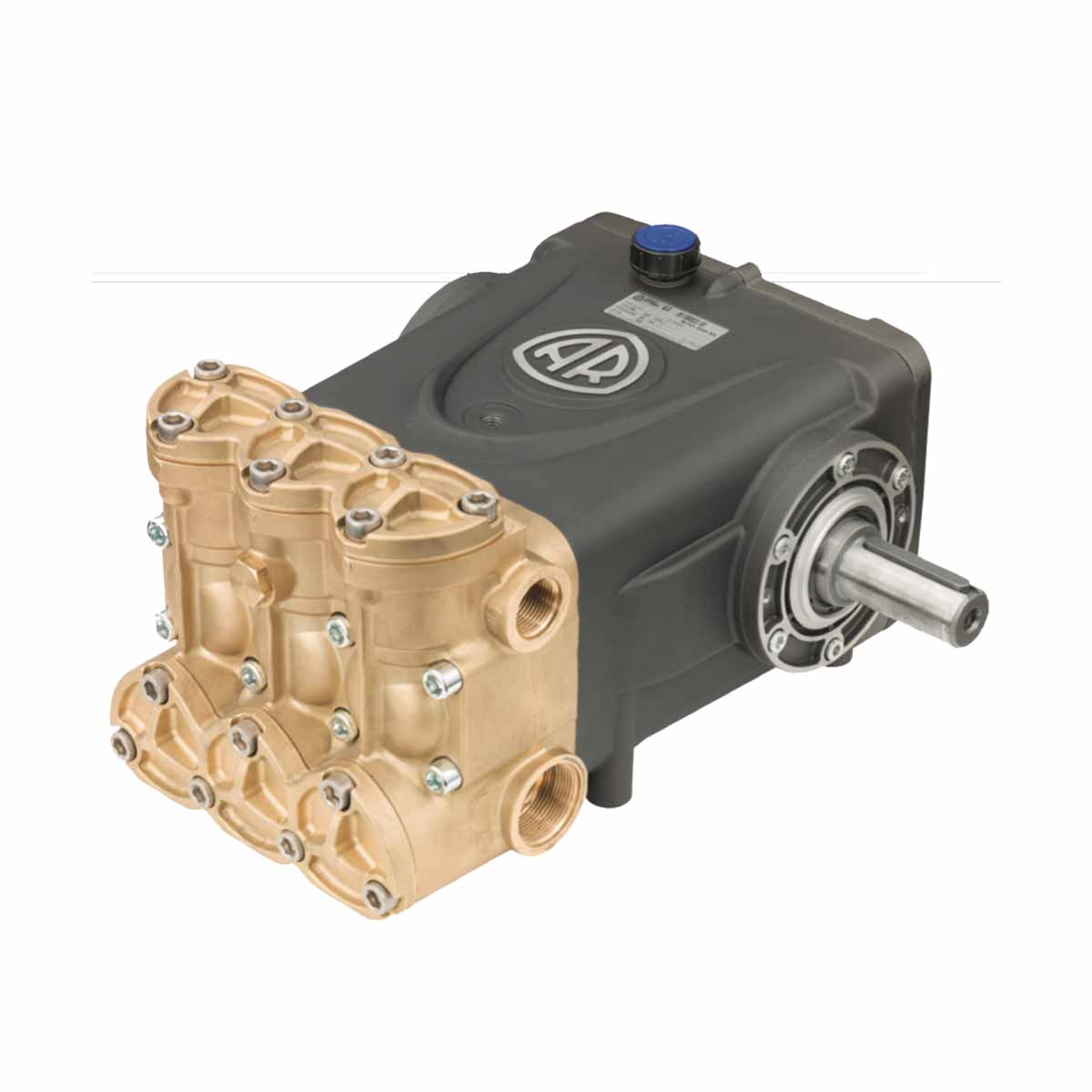

Annovi Reverberi AR RTD100-200 horizontal gas engine triplex plunger pump is rated up to 25 GPM at max 2900 PSI spins a 35mm solid shaft at 1000 RPM using a 1 ½” inlet and 1” discharge thread. N version with a gas engine flange.
Annovi Reverberi RTD100-200 Triplex Plunger Pump with 35MM solid shaft 1 1/2" inlet, 1" Outlet that spins at 1,000 RPM in the N version.
- Triplex reciprocating plunger pump
- Anodized aluminum crankcase
- Side cover with oil sight glass
- Rear cover with oil drain plug and oil sight glass
- Magnetic oil drain plug for a better cleaning inside the crankcase
- Bronze connecting rods
- Oversized tapered roller bearings
- Solid ceramic plungers
- Double gasket system
- Oversized inlet and outlet check valves
- Brass pump head
| Max GPM | 25 |
| Max L/Min | 94.6 |
| Max PSI | 2900 |
| MaxBar | 200 |
| Power EBHP | 49.8 |
| Bore Dia mm | 32 |
| Stroke mm | 42 |
| Crankshaft ID Stamp | 3 |
| Inlet | 1 1/2" |
| Outlet | 1" |
| Max Temp | 140° F |
| Oil Capacity (oz) | 110oz |
| Weight | 128 |
| RPM | 1000 |
| Shaft Size | 35MM |
| Shaft Version | Solid |
| Shaft Type | N Version |
