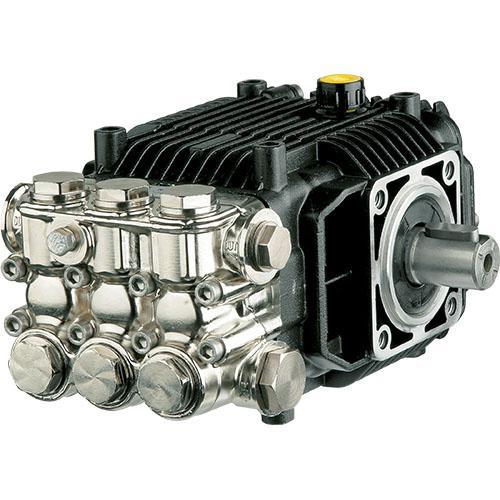

Annovi Reverberi AR XHW08.15N horizontal gas engine triplex plunger pump is rated up to 2.11 GPM at max 2200 PSI spins a 24mm solid shaft at 1450 RPM using a 3/4”F inlet and 3/8"F discharge thread. N version with a gas engine flange.
| Max GPM | 2.11 |
| Max L/Min | 8 |
| Max PSI | 2200 |
| MaxBar | 150 |
| Power EBHP | 3.2 |
| Bore Dia mm | 15 |
| Stroke mm | 10.6 |
| Crankshaft ID Stamp | 5 |
| Inlet | 3/4" F |
| Outlet | 3/8" F |
| Max Temp | 180° F |
| Oil Capacity (oz) | 32 |
| Weight | 14 |
| RPM | 1450 |
| Shaft Size | 24mm |
| Shaft Version | N |
| Shaft Type | Solid |
| Specialty | Hot Water |
