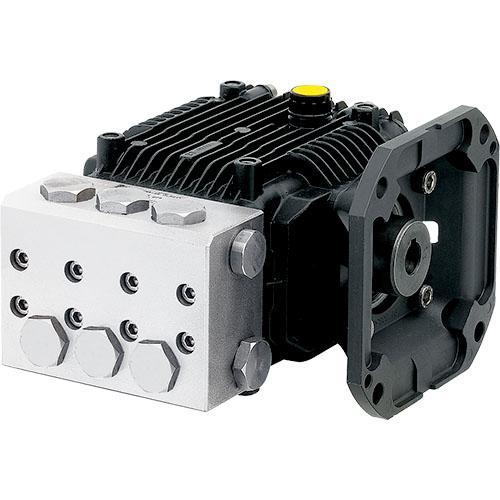

Annovi Reverberi AR XMASS25G15E-F33 horizontal gas engine triplex plunger pump is rated up to 2.5 GPM at max 2000 PSI at 1750 RPM using a ½ ”F inlet and ?”F discharge thread. E version 5/8” with a Nema 56-C gas engine flange.
| Max GPM | 2.5 |
| Max L/Min | 9.5 |
| Max PSI | 2000 |
| MaxBar | 140 |
| Power EBHP | 3.43 |
| Bore Dia mm | 15 |
| Stroke mm | 10.6 |
| Crankshaft ID Stamp | 5 |
| Inlet | 1/2" F |
| Outlet | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity (oz) | 14.5 |
| Weight | 17 |
| RPM | 1750 |
| Shaft Size | 5/8" |
| Shaft Version | E |
| Shaft Type | Hollow |
| Specialty | Stainless Steel |
