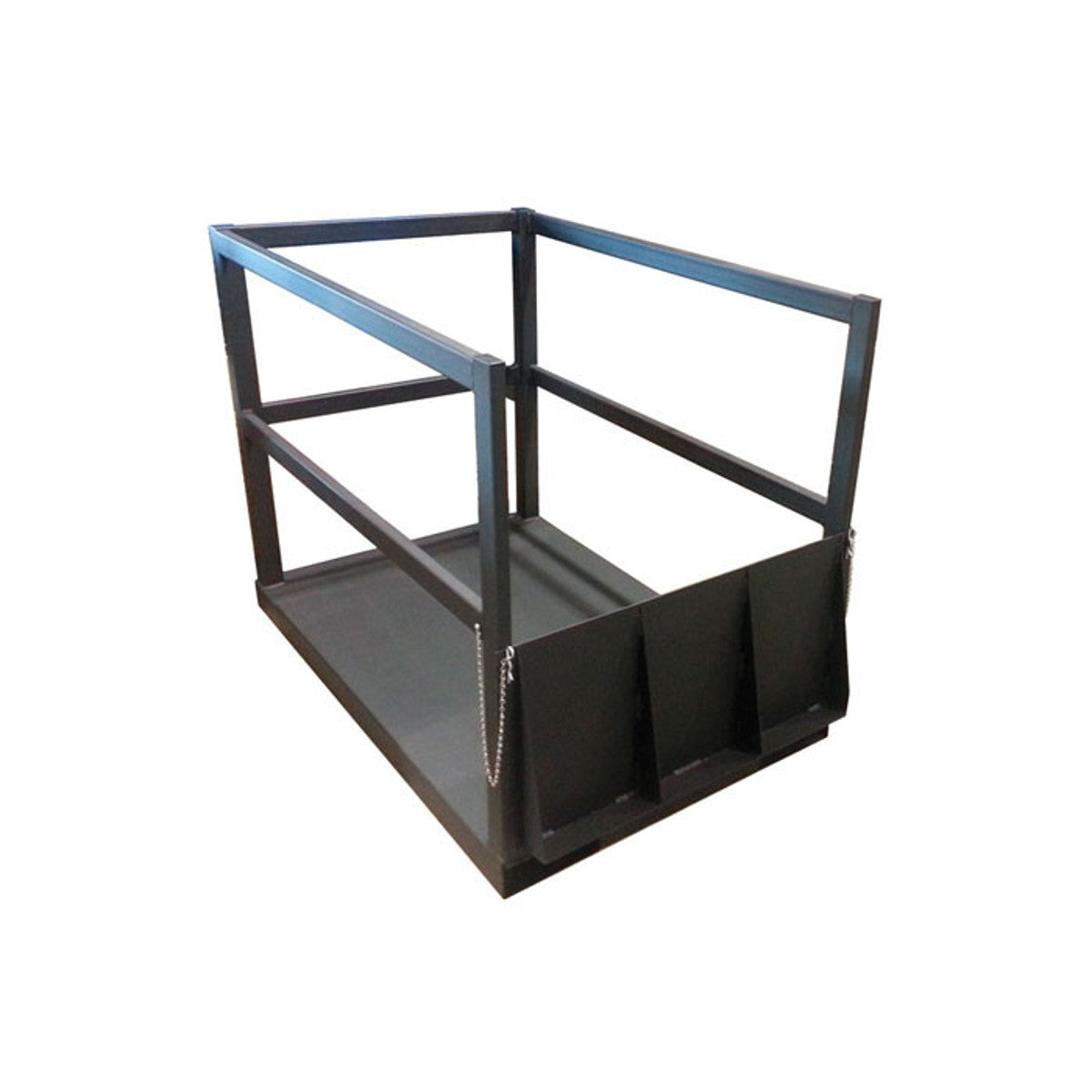

Transport multiple gas cylinders securely with a forklift using these end-load oriented pallets. Secure a group of gas cylinders using the 10,000-lb (4,536-kg) DOT compliant strap that attaches to frame at either 12-, 24- or 36-in (305-, 610- or 915-mm) from the deck. Fully welded construction from 11-gauge (3-mm) hot-rolled steel and structural tube steel, powder-coated to ensure longevity and chemical resistance. For easier loading and unloading, the pallets includes a 16-in (406-mm) hinged ramp. Once loaded, ramp lifts up to lie flat against unit for compact storage. Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Additional Specs
| Cylinder Capacity: | Varies |
| Cylinder Capacity with Max Cylinder Dia: | (14) 9 inch, (7) 12 inch, or (2) 21 inch |
| Ramp Equipped: | Yes |
| Mount Type: | Forklift |
| Weight Capacity (lb): | 3600 |
| Weight Capacity (kg): | 1633 |
| Strap Style: | Ratchet Binding |
| Straps Per Cylinder: | 1 Total |
| Material Specifications: | Steel |
| Complies with NFPA 1 Fire-Code: | Yes |
| NFPA 55: | Yes |
| OSHA Compliance: | Yes |
| CGA: | Yes |
| Net Weight, lbs: | 280 |
| Net Weight, kg: | 127 |
| Net Dimensions (W x D x H): | 32 x 66 x 38 inches |
| : | 813 x 1676 x 965 mm |
