Description

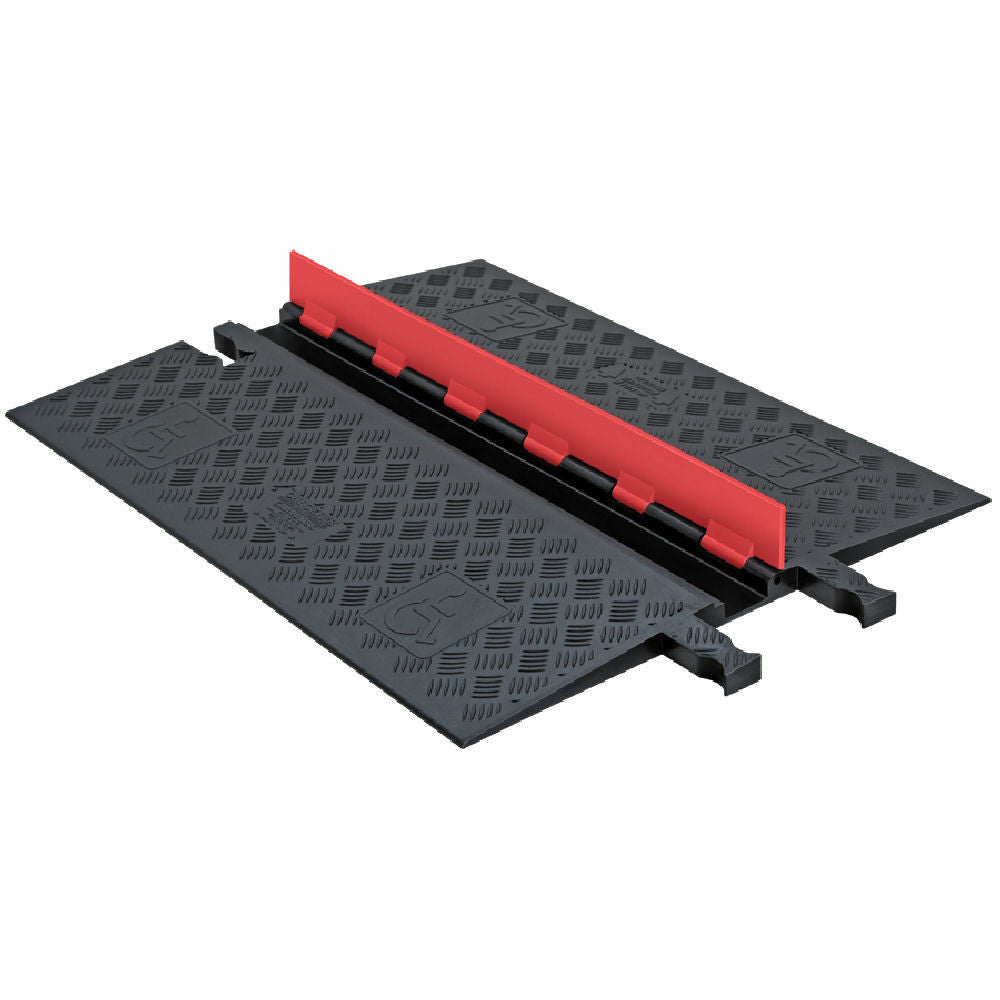

Guard Dog® low-profile models are the most compact top-loading cable protectors on the market. These fit cables up to 0.75" tall and 2.25" wide. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.
Personalize cable protectors with your logo or colors. Request a quote now.
Specifications
| Model No | GD1X75-O/B / GD1X75-B/B / GD1X75-O/BLU | Brand | Checkers Safety™ | Quantity Included | 1 |
|---|---|---|---|---|---|
| Load Capacity Per Axle | 46000 lbs | Load Capacity Per Tire | 23000 | Length (Inches) | 36 |
| Width (Inches) | 27.25 | Height (Inches) | 1.25 | Max Cable Outside Diameter (Inches) | 0.75 |
| Number of Channels | 1-Channel | Connector Type | Dog Bone Connector | Channel Width | 2.25 |
