Heavy-Capacity Short-Rise Power for Busy Bays

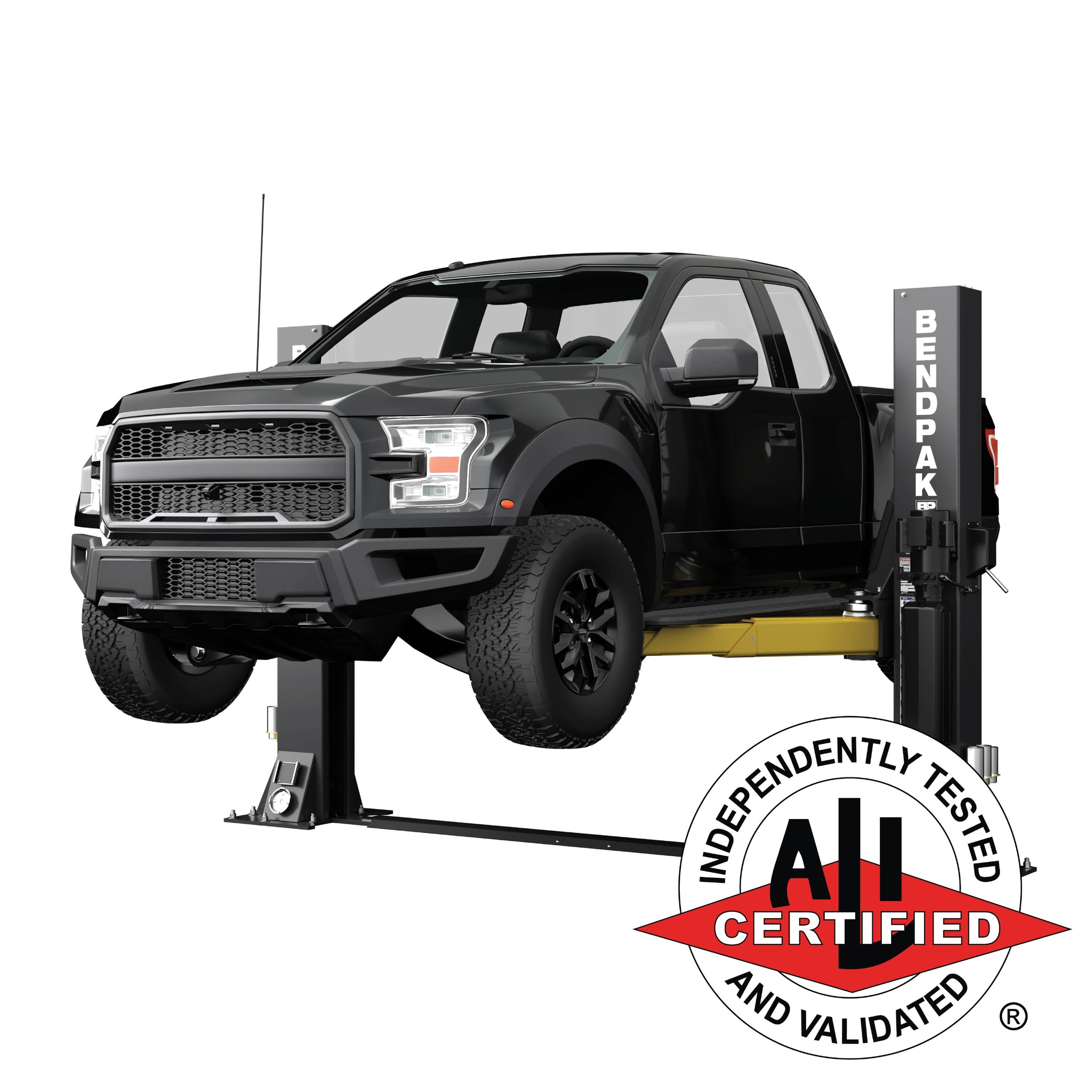

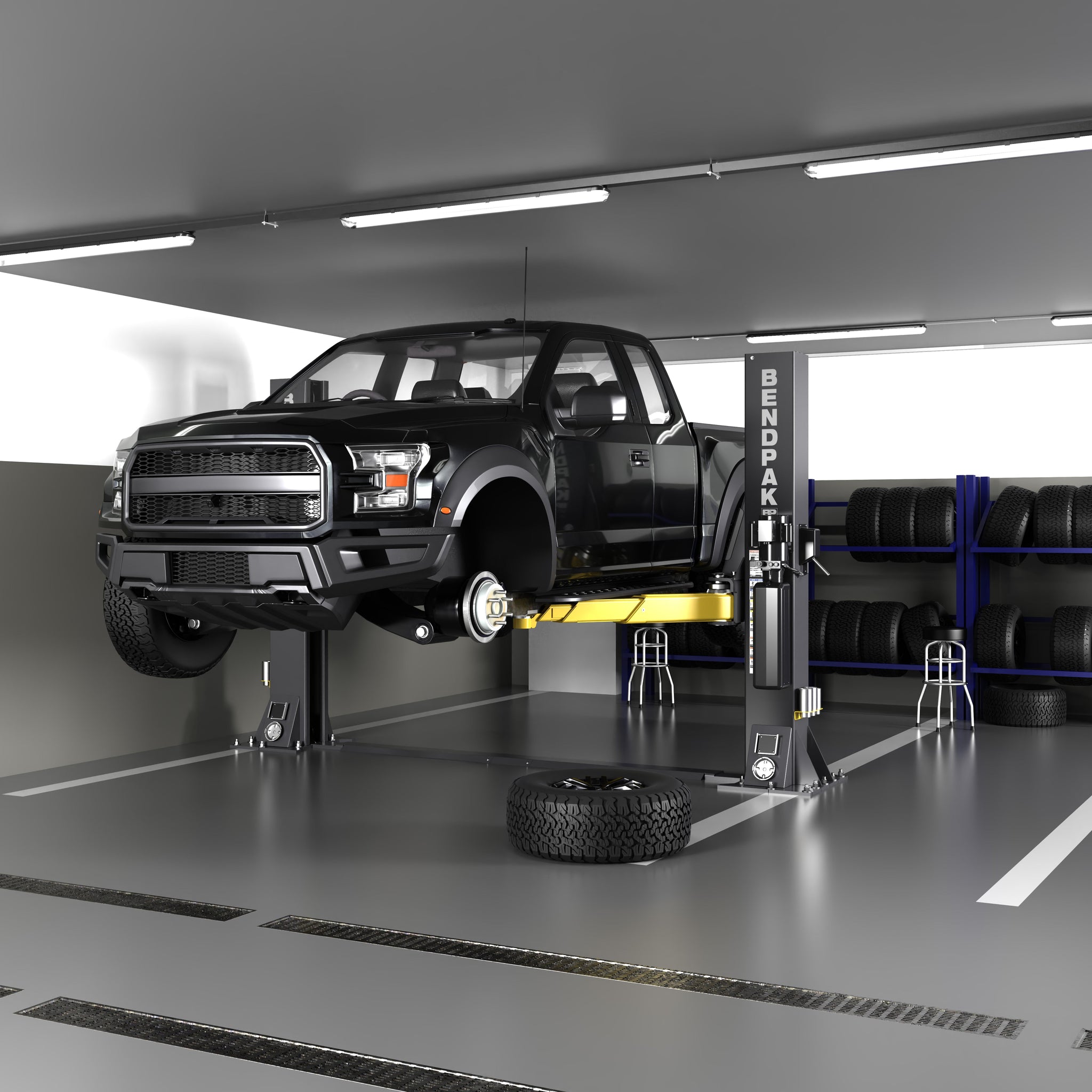

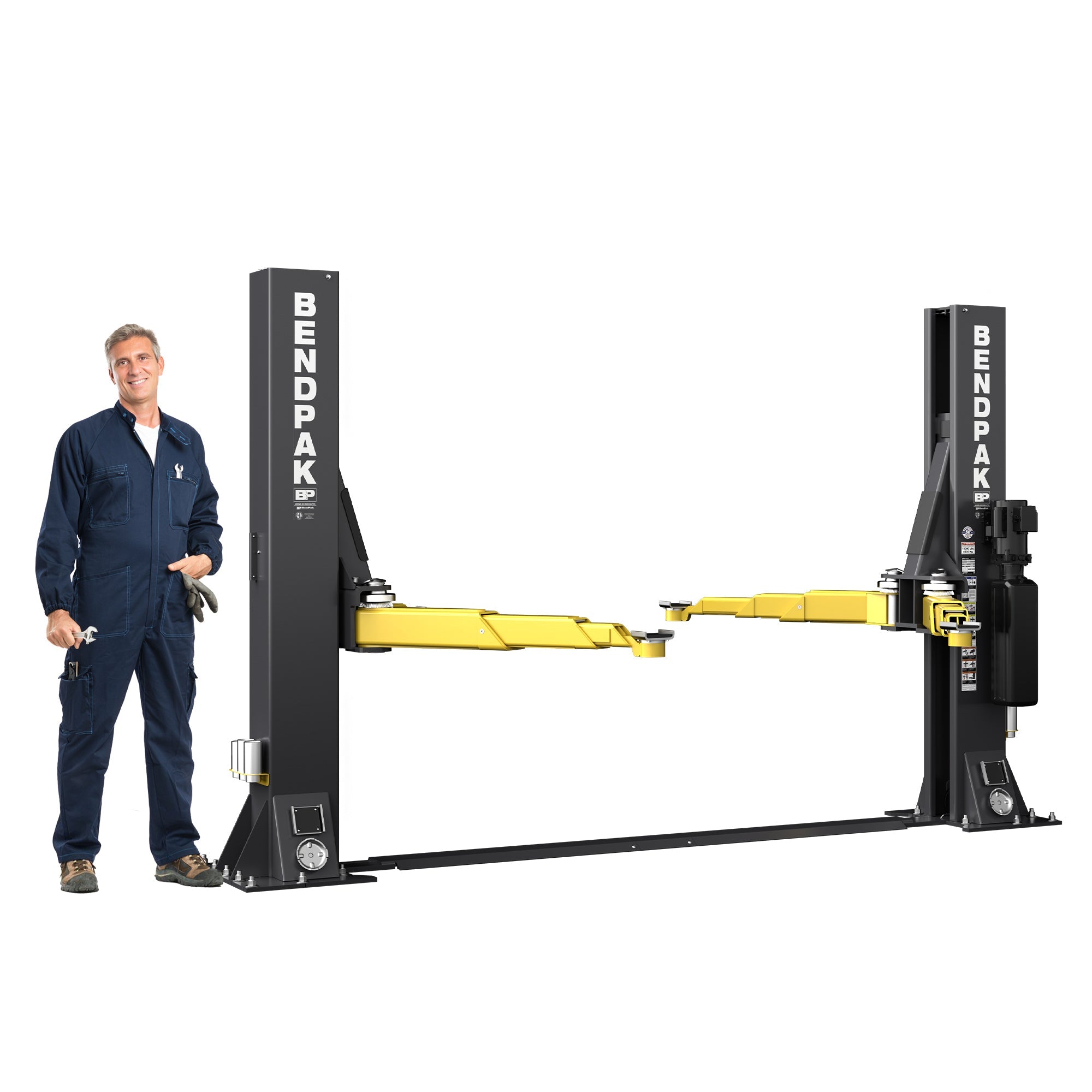

The BendPak 12AP-SRT is a short-rise two-post lift built for shops that need heavier lifting capability without always needing full standing-height undercar access. With a 12,000-lb. capacity and a compact floorplate design, it is a strong fit for tire service, wheel work, detailing, inspections, brakes, suspension access, and other service tasks where speed, support, and space efficiency matter.
This lift is especially useful for professional shops and serious garages that work on heavier vehicles but still want a short-rise platform. It keeps the lift focused on practical service height, helping technicians move quickly around vehicles without dedicating the ceiling height or footprint required by a traditional full-rise two-post lift.
Floorplate Layout with Wide and Narrow Installation Options

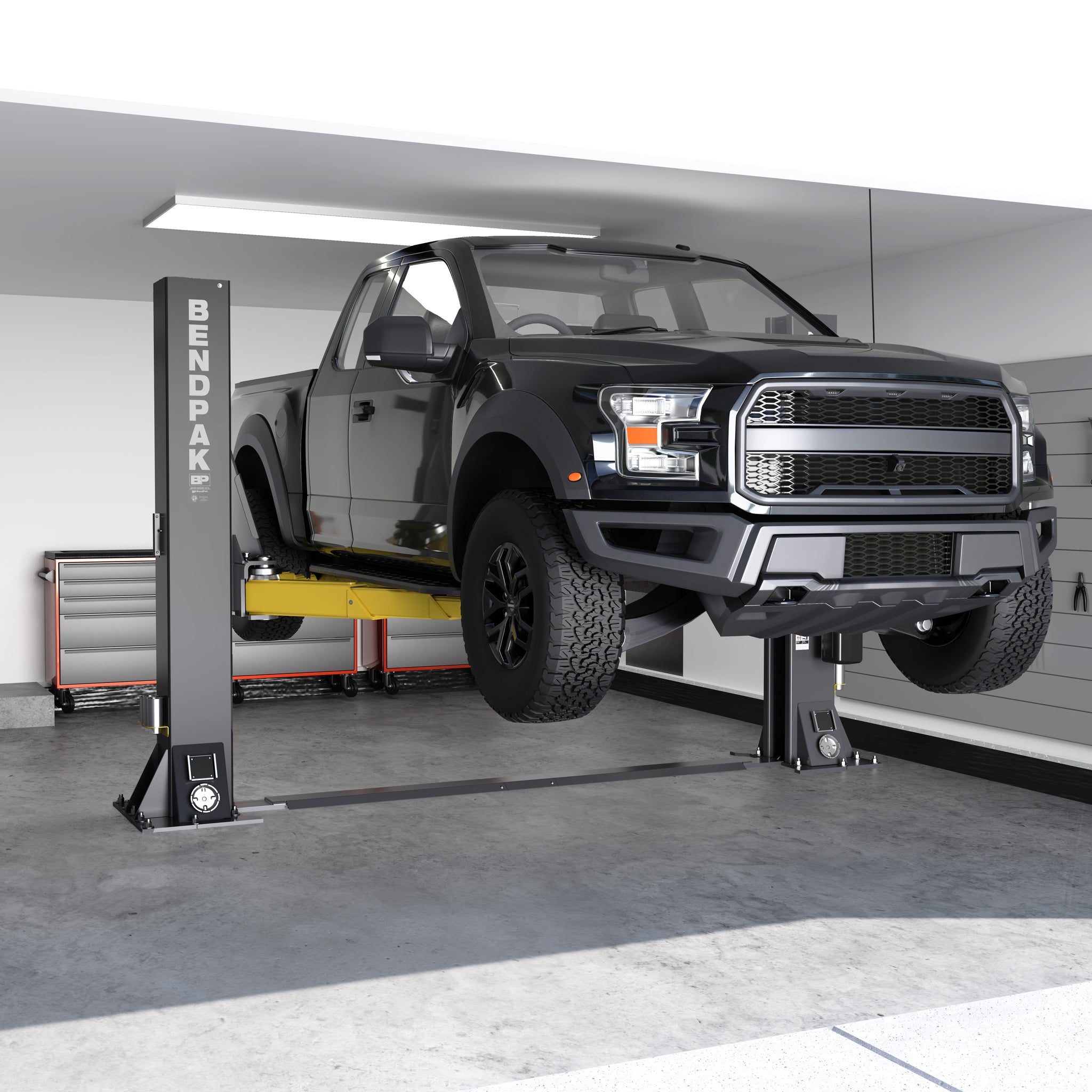

The 12AP-SRT uses a floorplate design that routes and protects key lines between the posts while helping keep the work area organized. Its compact short-rise layout makes it easier to fit into low-ceiling shops, personal garages, and quick-service areas where full-height columns are not the right answer.
The lift also offers wide and narrow installation options in a customizable package, giving shop owners more flexibility when planning bay layouts. That matters when you are trying to add lifting capacity to an existing service floor instead of designing the entire building around one piece of equipment.
Bi-Metric Arms and Triple-Telescoping Reach

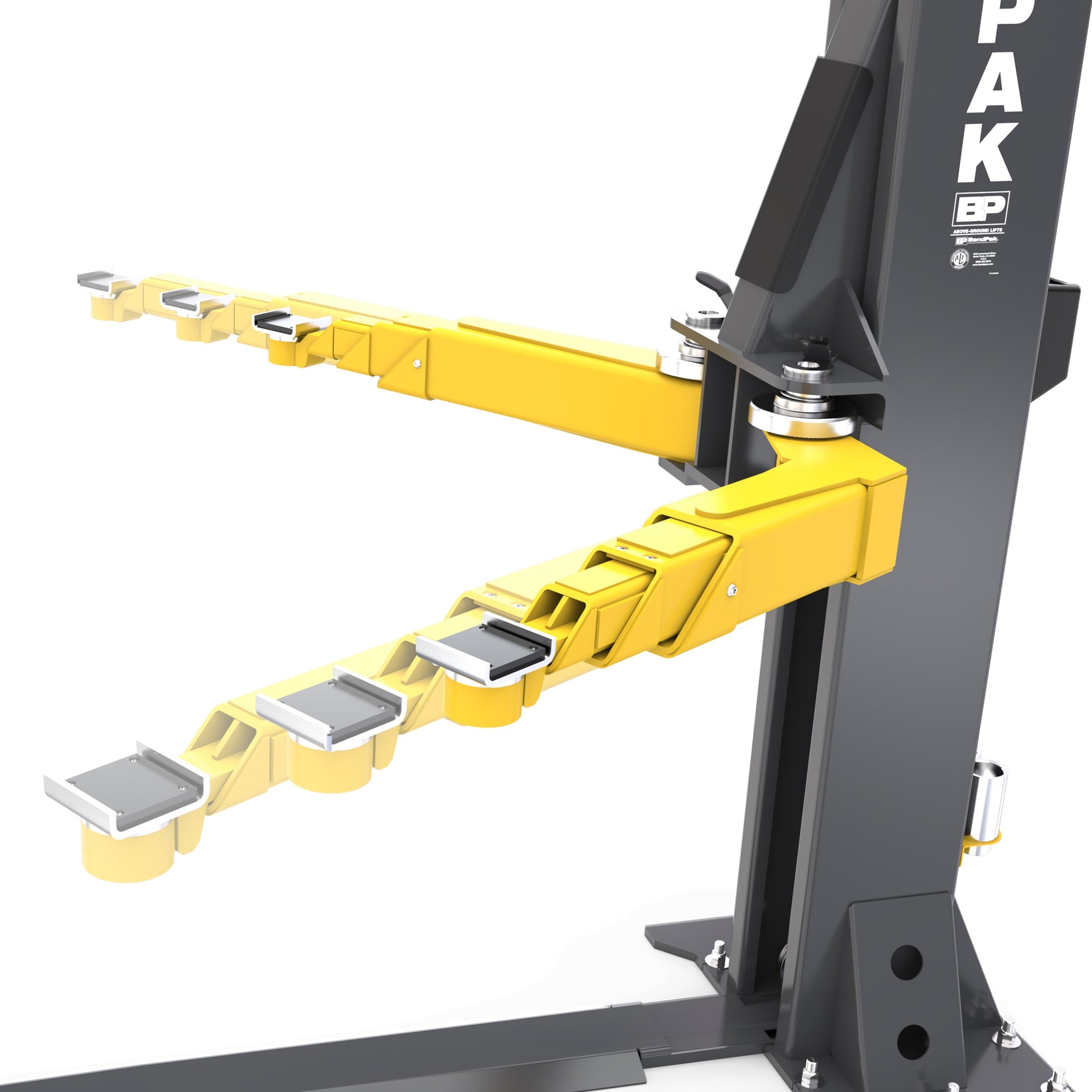

The 12AP-SRT uses BendPak’s Bi-Metric arm system to support both symmetric and asymmetric spotting needs. This gives technicians more freedom to balance vehicle position, door clearance, and access depending on the job. Triple-telescoping arms retract shorter and extend farther, helping reach a wider range of lift points on modern vehicles.
Drop-end arms create a lower pad height for easier placement under low-profile vehicles, while included cradle adapters support body-on-frame trucks and SUVs. The AP Series arm package is designed to reduce setup compromise, making the 12AP-SRT more adaptable than a basic short-rise lift.
AP Series Safety Systems for Heavier Short-Rise Work

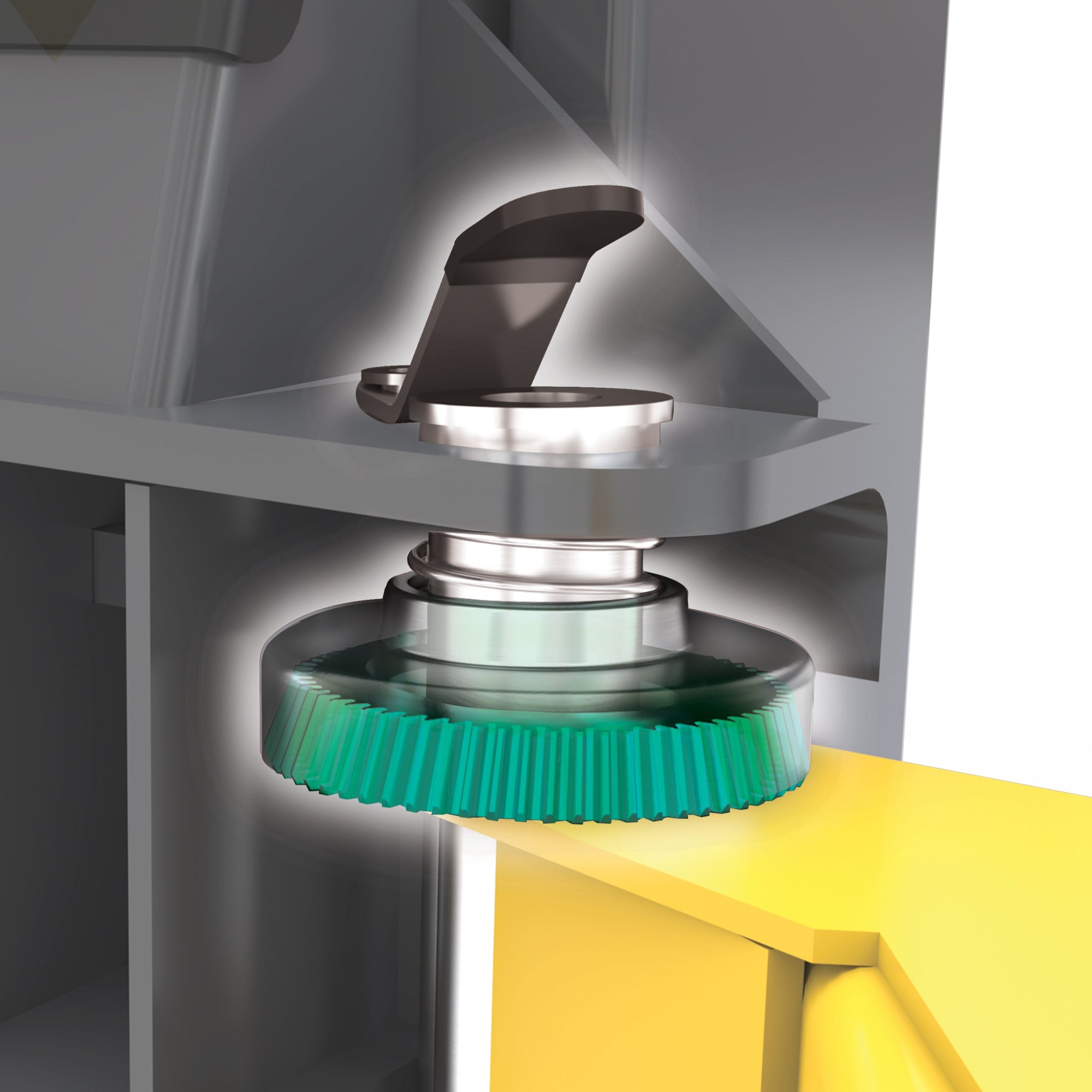

The 12AP-SRT includes BendPak’s patented automatic safety lock system and single-point release mechanism for controlled lifting and lowering. The Automatic Swing Arm Restraint System uses forged-steel construction and 360-degree grip to help keep arms locked firmly in place under real service loads.

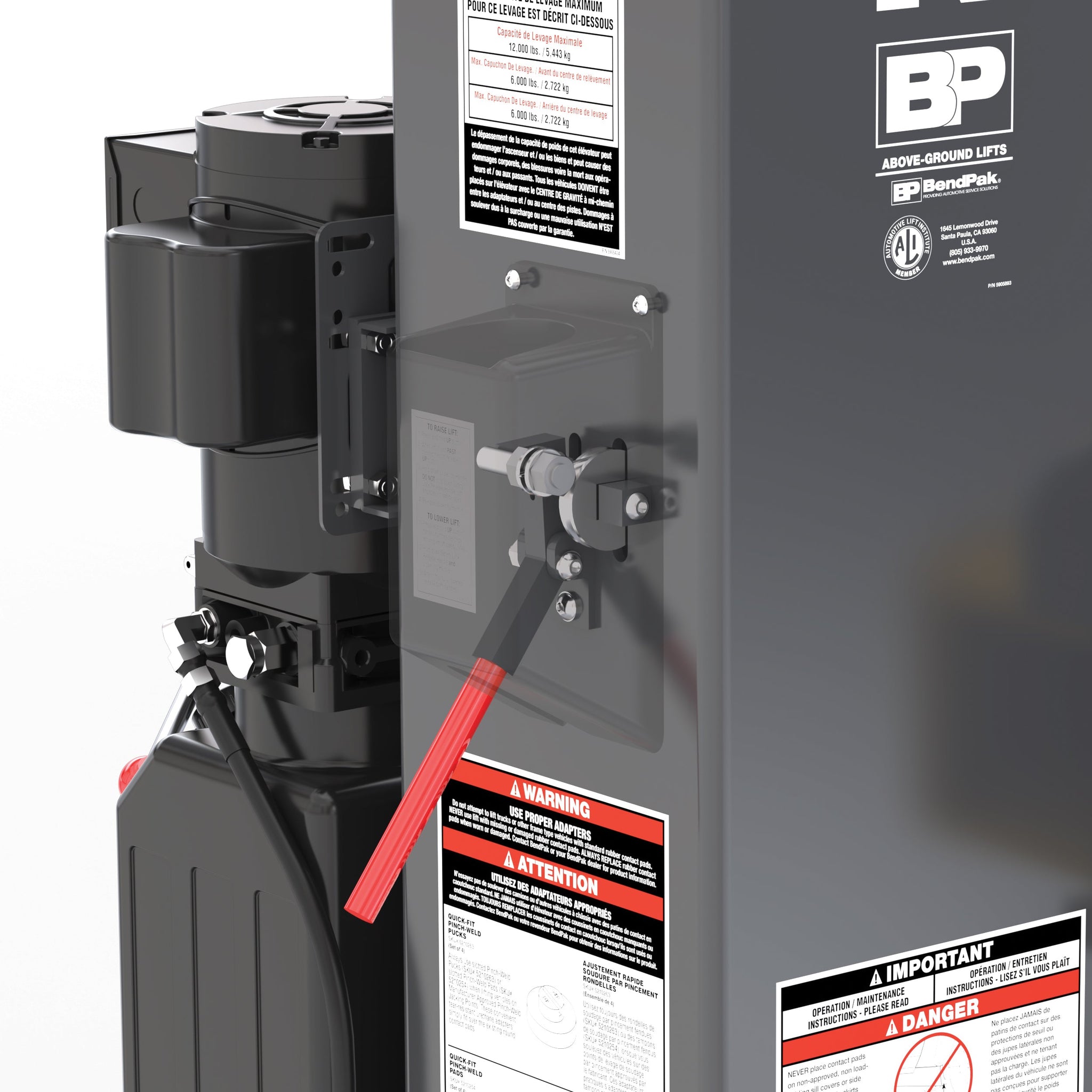

Dual hydraulic direct-drive cylinders, heavy-duty equalizer cables, self-lubricating Dura-Glide UHMW bearings, electric-hydraulic power, and safety locks in each column give the 12AP-SRT the strength and control needed for high-volume shop use. For heavier tire and wheel service, it brings short-rise convenience without acting lightweight.
12,000-lb. Short-Rise Power
Gives shops heavier short-rise lifting capacity for tire, wheel, brake, detailing, and inspection work.
Low-Ceiling Friendly
The compact floorplate design helps the lift fit into spaces where a full-height two-post lift is not practical.
Flexible Bay Layout
Wide and narrow installation options make it easier to fit the lift into existing service floors and garage layouts.
Bi-Metric Arm Design
Symmetric or asymmetric spotting helps technicians balance access, door clearance, and vehicle support.
AP Series Restraints
Automatic arm restraints help keep the arms locked in place with forged-steel construction and 360-degree grip.
Built for Heavier Service
Dual hydraulic cylinders, heavy-duty cables, and self-lubricating bearings support dependable short-rise operation.
Recommended Add-ons
Features
- 12,000-lb. lifting capacity
- Short-rise two-post lift for tire, wheel, brake, detailing, and service work
- Compact floorplate design for low-ceiling shops and garages
- Wide and narrow installation options in one customizable package
- Exclusive Bi-Metric arm design for symmetric or asymmetric spotting
- Four triple-telescoping arms for versatile lift-point access
- Drop-end arms provide a lower pad height
- Four cradle adapters included for trucks and SUVs
- Dual hydraulic direct-drive cylinders
- Electric-hydraulic HVLP power system
- Single-point safety release
- Safety locks in each column spaced every 3 inches
- Automatic arm restraints withstand over 2,000 pounds of side force
- Heavy-duty 1/2-inch aircraft-quality equalizer cables
- Self-lubricating Dura-Glide UHMW polyethylene bearing system
Specifications
| Lifting Capacity | 12000 lb |
| Max Capacity Per Arm | 3000 lb |
| Rise | 42.75 in |
| Max Lifting Height with Pad | 46 in |
| Min Lifting Height with Pad | 4.25 in |
| Lifting Time | 45 seconds |
| Height | 93.5 in |
| Width | 155 in |
| Outside Columns | 142 in |
| Inside Columns | 119 in |
| Drive-Thru Clearance | 102.25 in |
| Floorplate Height | 1.5 in |
| Floorplate Width | 9.5 in |
| Front Arm Reach Min | 26 in |
| Front Arm Reach Max | 55.25 in |
| Rear Arm Reach Min | 29.25 in |
| Rear Arm Reach Max | 60 in |
| Horsepower | 5 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound Level | < 85 dB |
| Shipping Dimensions | 30 x 116 x 44 in |
| Shipping Weight | 2320 lb |
| Shipping Method | LTL |
| Offload Requirement | Forklift |
Manuals & Downloads
- BendPak 10AP SRT 12AP SRT Mid Rise Two Post Lift 5175610 5175605 Brochure
- BendPak 10AP SRT 12AP SRT Installation Operation Manual
- BendPak Limited Warranty All Products
