Details:

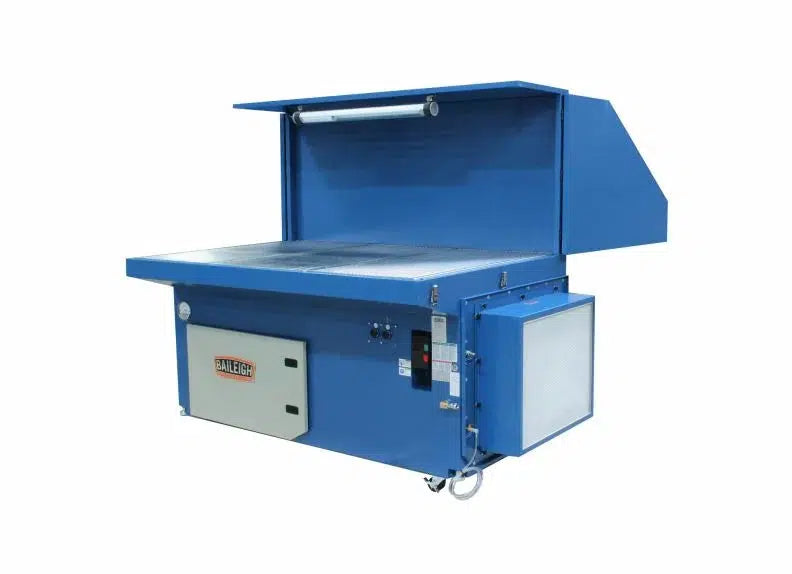

Downdraft Tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufacturing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.-Table Load Capacity – Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface. Concentrated Contact Surface Contact Weight 10% 221lbs (100gs) 20% 441lbs (200kgs) 30% 661lbs (300kgs) 40% 882lbs (400kgs) 50% 1102lbs (500kgs) 60% 1323lbs (600kgs) 70% 1543lbs (700kgs) 80% 1764lbs (800kgs).
Specifications:
- 78" x 52" Working area
- Air pulse cleaning
- 100% Tool free cleaning and filter maintenance/changes
- Fully Assembled – Simply uncrate, wire, and begin use
- CSA listed
- Safety – Under OSHA decibel limit (hearing protection not required)
- Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet
| Stock Number | BA9-1017590 |
|---|---|
| Filter Size (W x L x D) (In.) | Aluminum x 2 - 11.3" x 23.8" x 0.86", Cartridge x 6 - Ø11.25" x 13"L, HEPA - 18" x 20" x 5.9" |
| Maximum CFM | 2340.0000 |
| Model Number | DDTM-8052-HD |
| Motor (HP) | 5HP, 230V, 3PH |
| Motor Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Dust Collector |
| Weight (Lbs.) | 1650 |
| Filter Type | 3 Stage Filter |
