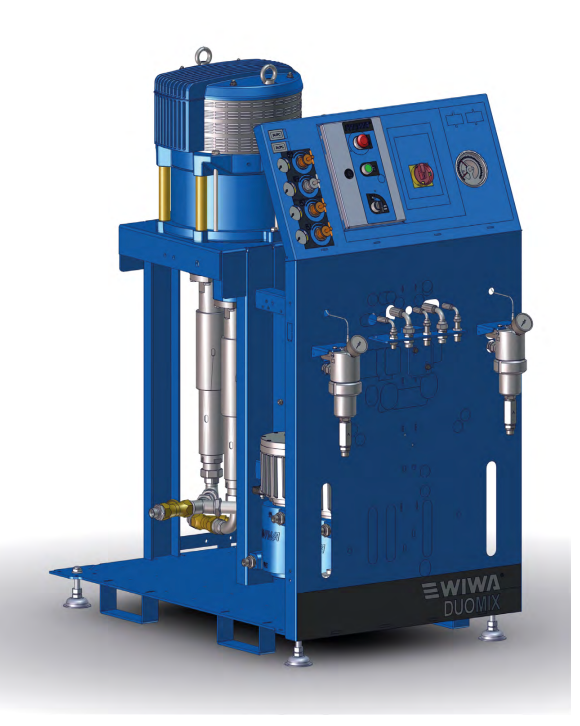

WIWA DUOMIX 333 GX
FOR HEAVY-DUTY COATINGS
WIWA DUOMIX high-performance coating systems. The reliable system concept for the wide range of 2K and 3K coating materials.
WIWA DUOMIX – probably the only 2K system in the world that offers you the flexibility of a variably adjustable 2K system and the security of a fixed mixing ratio and can also be used as a 3K system. In use worldwide for processing high-viscosity, solvent-free 2K or 3K materials. For materials with extremely short pot times (e.g. 30 seconds), the WIWA DUOMIX shows its particular strength. A glance at the extensive, optionally available range of accessories also opens up a multitude of equipment variants for innovative areas of application for this equipment series.
AREAS OF APPLICATION
-
Construction
-
Building renovation
-
Structural and civil engineering
-
Steel and hall construction
-
Steel processing industry
-
Heavy industry
-
Marine and offshore industry
-
Machine and vehicle construction
-
Pipes and pipelines
-
Energy industry
MATERIALS
-
Solvent-based coating materials
-
Low-solvent and solvent-free coating materials
-
Acrylics
-
Polyurethanes
-
Antifoulings
-
Silicone
-
Multicomponent
-
Coating materials
-
Flame retardant materials
-
Materials with short fibre fillers
-
Sprayable lacquers and paints
BASIC EQUIPMENT
-
WIWA dosing pump
-
Robust frame for accommodating all parts
-
Maintenance unit complete with all connections
-
Safety equipment (rupture discs) in the high pressure range for both components
-
High pressure filter for base component and hardener
-
Pressure gauge for base component and hardener
-
Complete pressure and proportioning monitoring for both components with automatic switch-off upon exceeding the set tolerances
-
Flushing pump for cleaning the parts that come into contact with the mixed material
-
EX-protected WIWA material fluid heater with a rating of 3.5 kW (can be controlled from 86 – 185 °F)
-
Pneumatic stroke counter for quantity control
-
Hose assembly, insulated or heated (electric or water heating)
-
Pneumatic mixing block with static mixer and flushing device
AUXILIARY EQUIPMENT
-
Feed pumps or inflow hoppers
-
Datalogger
Technical Data
| Technical data | |
| Output per cycle (cu in) | 5.1 up to 49 |
| Pressure Ratio | up to 85:1 |
| Max. air inlet pressure (psi) | 116 |
| Max. operating pressure (psi) | 6526 |
| Volumetric mixing ratio | 1:1 up to 10:1 |
| Order No. | On request |
