- Auto thickness control for repeatable results
- Three-motor system handles continuous loads
- Pneumatic belt tracking improves finish quality
- Centralized controls simplify operation
Description

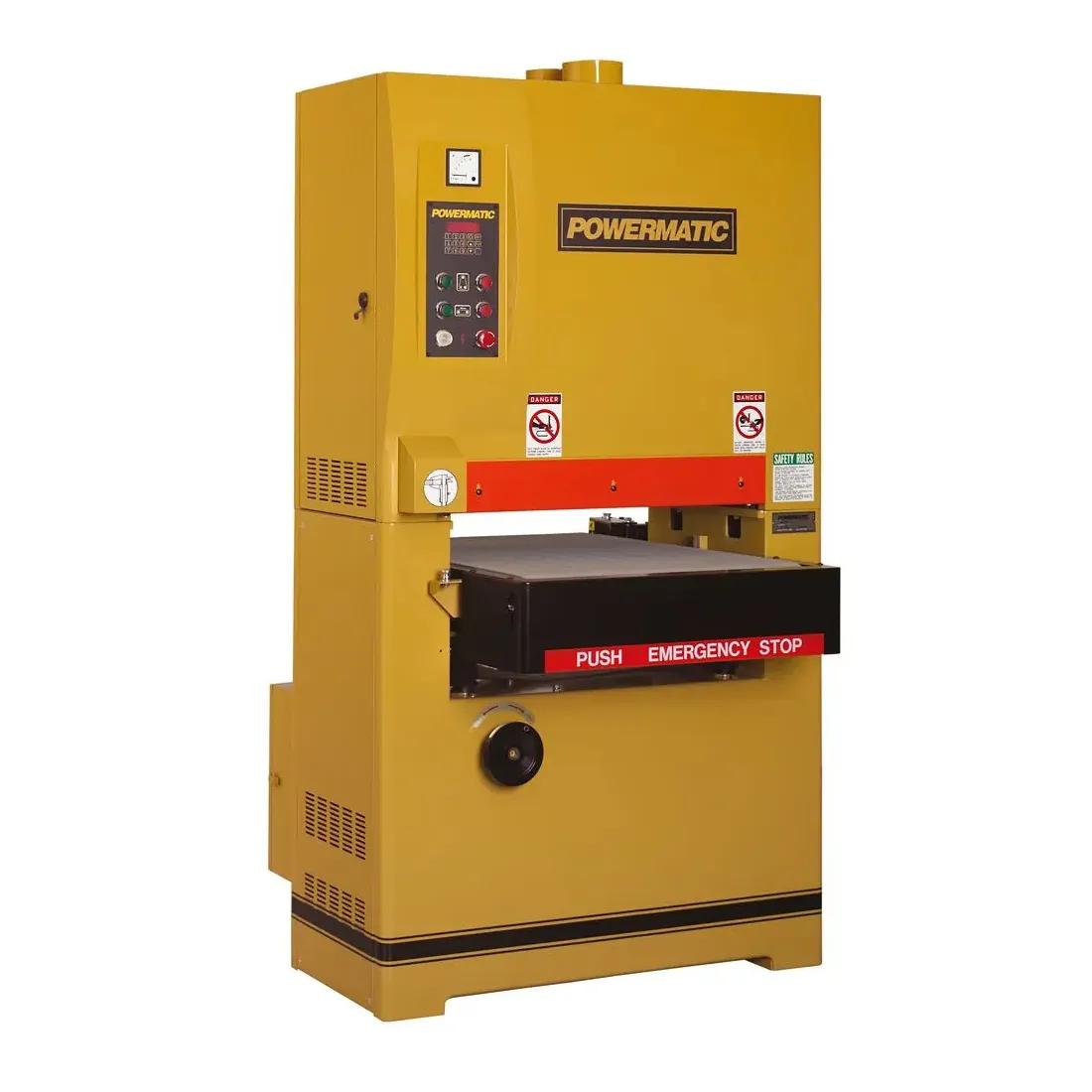

The Powermatic 25" Wide Belt Sander is engineered for production environments that demand accurate thickness control, consistent surface finishes, and reliable performance under continuous use. Centralized controls place all primary functions within easy reach, simplifying setup and operation.
A digital thickness readout allows operators to monitor finished dimensions or preset a target thickness with precision. The integrated auto thicknesser captures the starting thickness of each workpiece, reducing setup time and minimizing trial passes. A variable-speed feed conveyor enables precise adjustment to match material type, grit selection, and finish requirements.
A pneumatic sensor system controls sanding belt oscillation to ensure uniform belt tracking and even abrasive wear across the 25" × 75" sanding belt. This helps prevent belt run-off and reduces the likelihood of sanding lines on the workpiece.
The WB-25 features a three-motor drive system that independently powers the sanding drums, feed conveyor, and table elevation. This separation delivers smooth operation under load and consistent results in demanding shop conditions. For safety, an integrated disc brake provides rapid machine stoppage in emergency situations.
Like all Powermatic machines, the WB-25 is backed by a 5-year warranty.
Features
- Centralized controls simplify operation and setup
- Digital readout displays finished or preset thickness
- Three-motor system independently powers sanding, feed, and table lift
- Auto thicknesser captures starting thickness automatically
- Pneumatic belt oscillation ensures uniform abrasive wear
- Variable-speed feed conveyor adapts to material and finish
- Disc brake enables rapid stopping in emergency conditions
Specifications
| SKU | PM9-1790825-4 |
|---|---|
| Dust Port Outside Diameter (in.) | 5 in. (2) |
| Gross Weight | 1860 |
| Input Power | 460V Three Phase |
| Max. Board Thickness | 4 in. |
| Maximum Board Width | 25 in. |
| Model Number | WB-25-4 |
| Motor HP | 15 |
| Net weight | 1760 |
| Old Material Number | 1790825-4 |
| Prewired Voltage | 230 |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Style Type | Wide Belt Sander |
| UPC | 019907000815 |
| Warranty | 5 Year |
