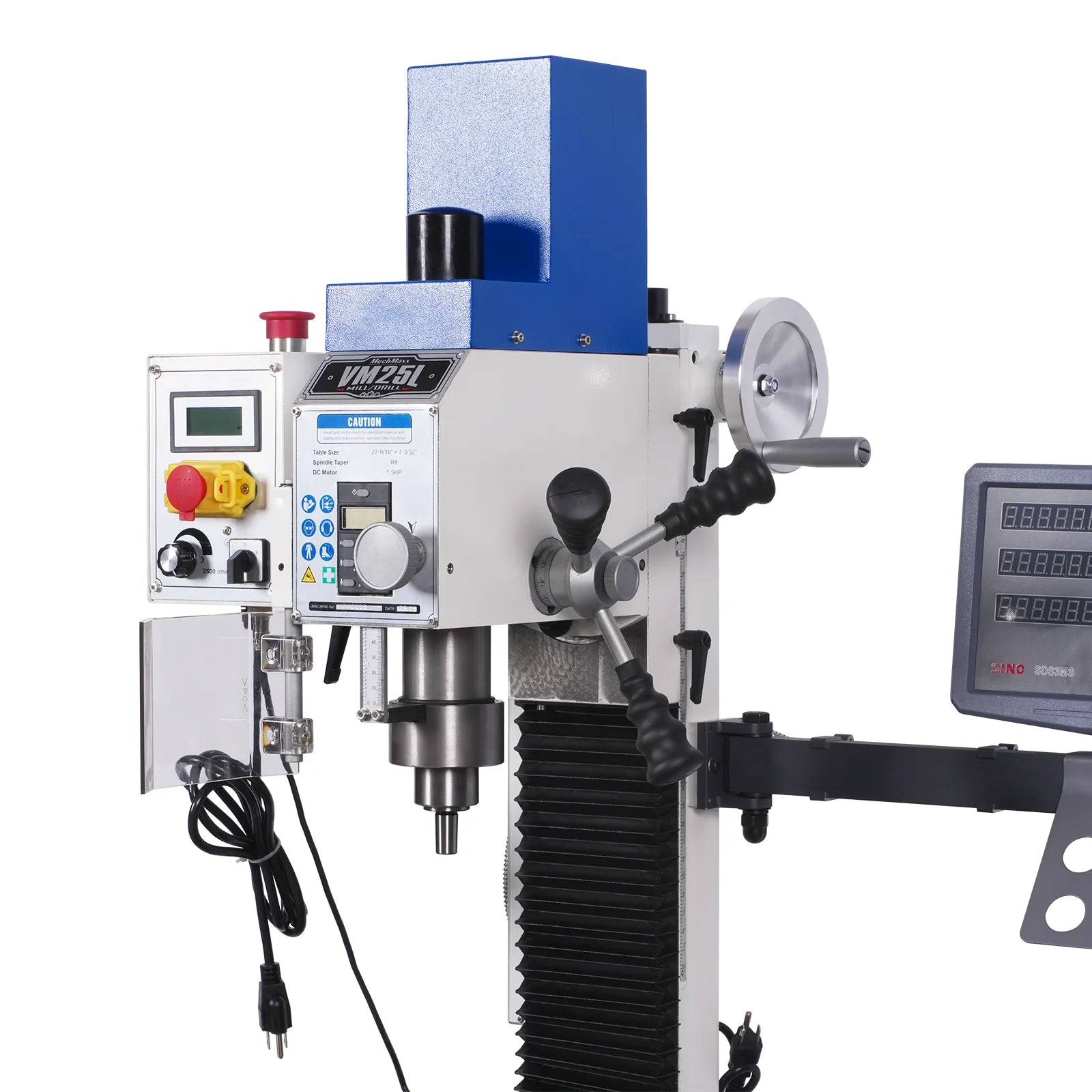

| Spindle Specifications | |
| Spindle Taper | R8 |

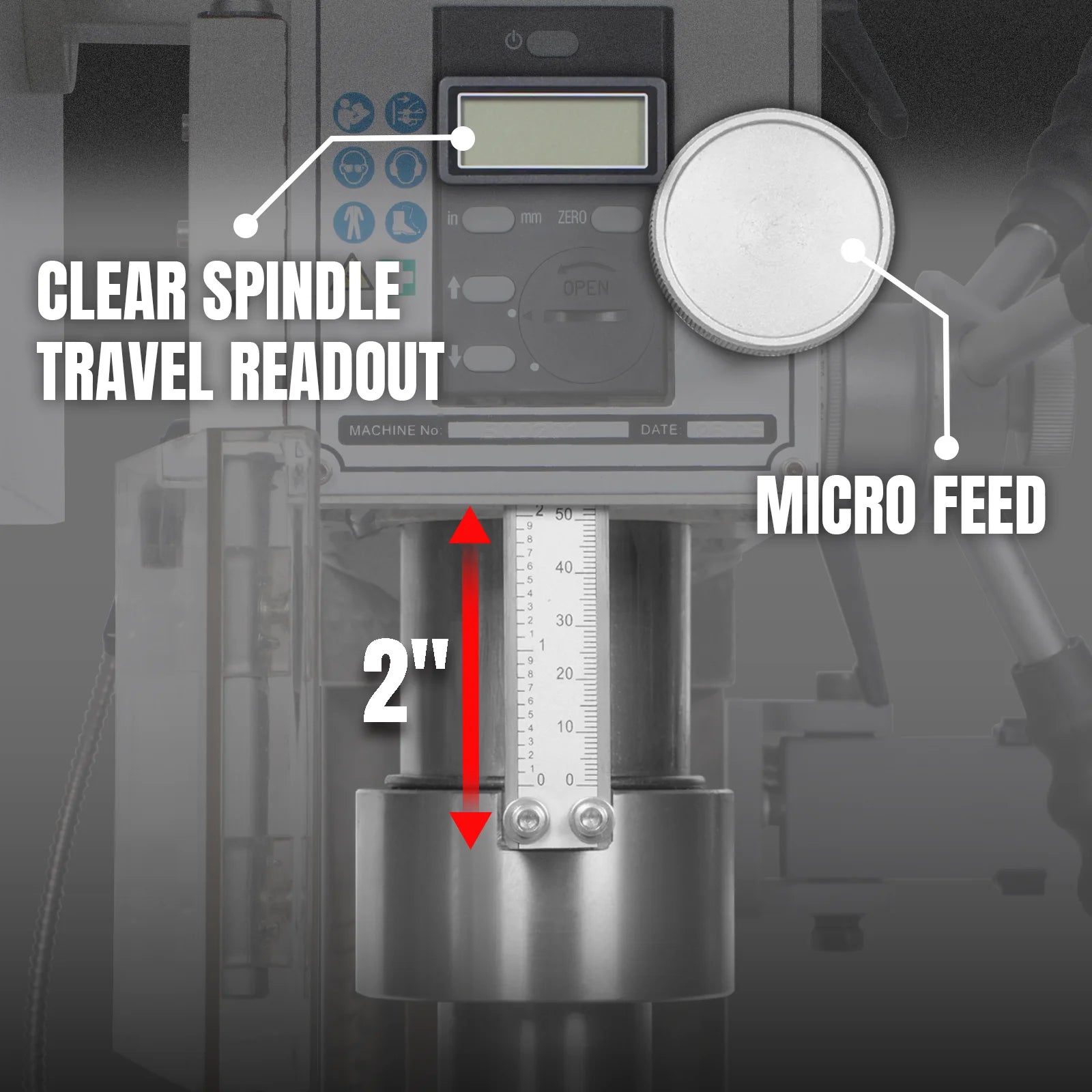

| Spindle Travel | 2"(50mm) |
| Quill Diameter | Ø2-3/8''(60mm) |
| Spindle Speed Range | 0-2500RPM |
| Number of Speed Steps | Variable |
| Drawbar Thread Size | 7/16"-20'' |

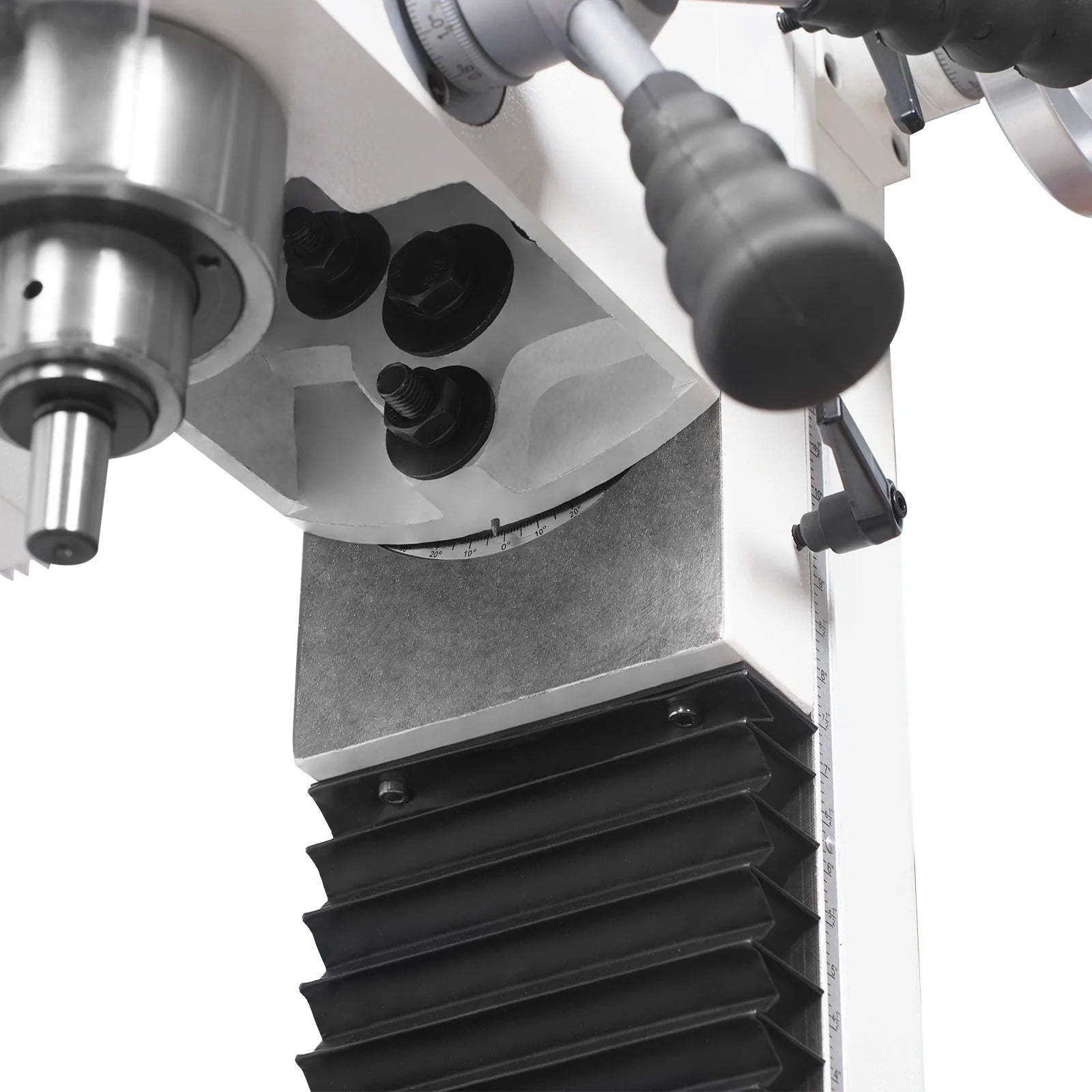

| Head Tilt Angle | ±90° |
| Spindle to Table Distance | 14-1/2"(370mm) |
| Spindle to Column Distance | 7-1/2"(190mm) |

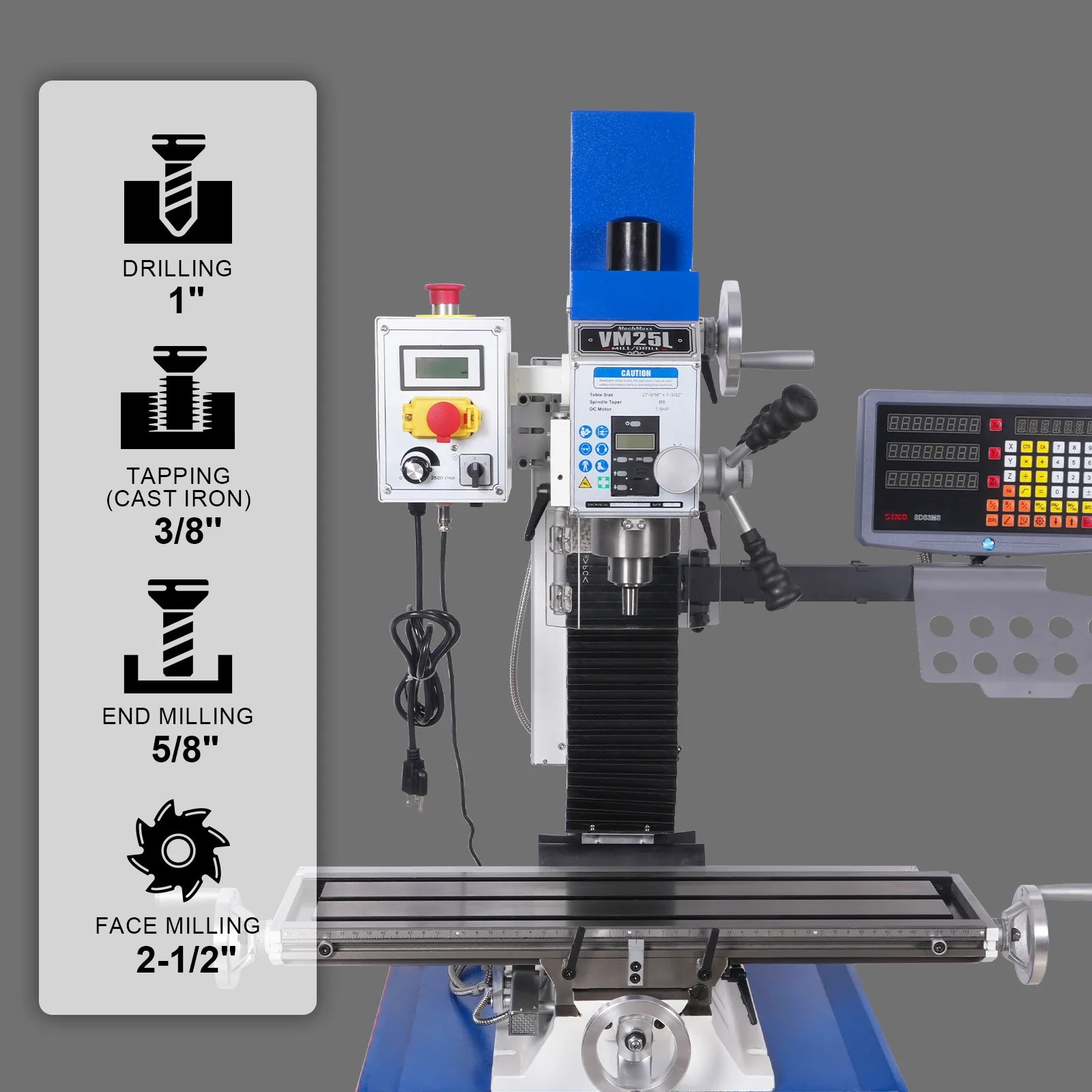

| Cutting Capacity | |
| Drilling Capacity | 1''(25mm) |
| End Milling Capacity | 5/8"(16mm) |

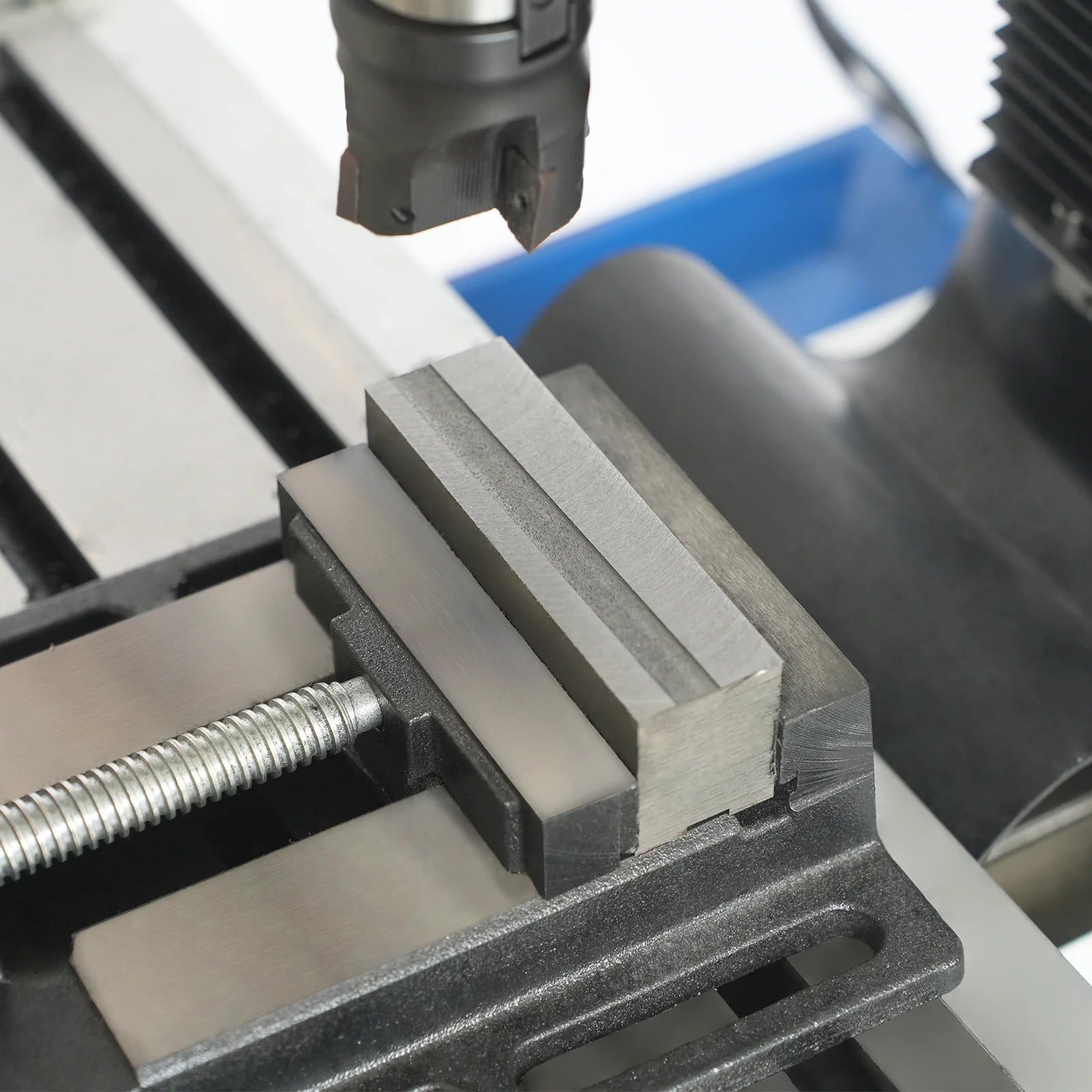

| Face Milling Capacity | 2-1/2"(63mm) |
| Table & Travel | |

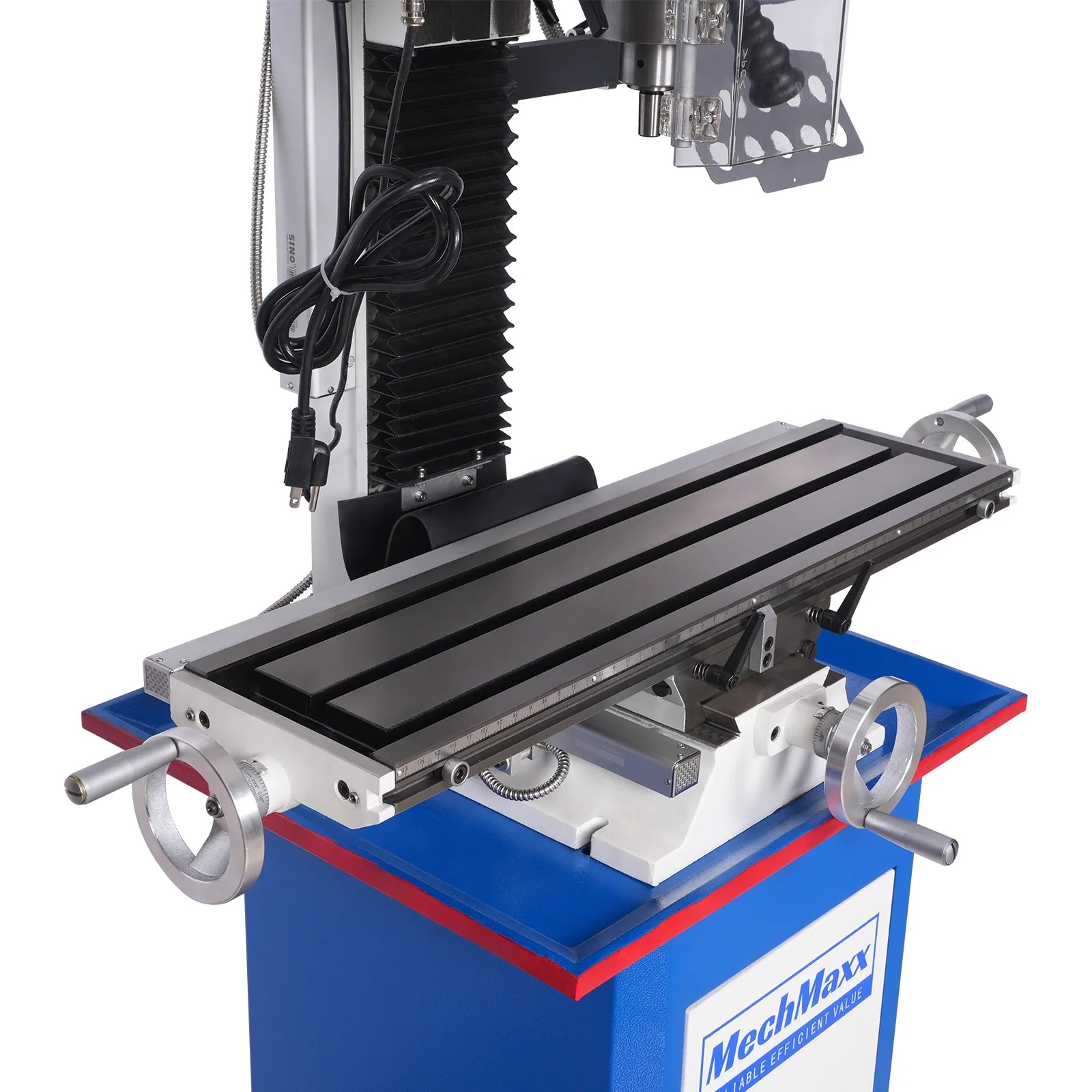

| Table Size | 7''x27-1/2"(180x700mm) |
| T-Slot Size / No. / Centers | 3 X 1/2''(12mm) |
| X-Axis Travel | 19-1/2''(495mm) |
| Y-Axis Travel | 5-1/2''(140mm) |
| Z-Axis Travel | 12-5/8''(320mm) |
| Construction & Drive | |

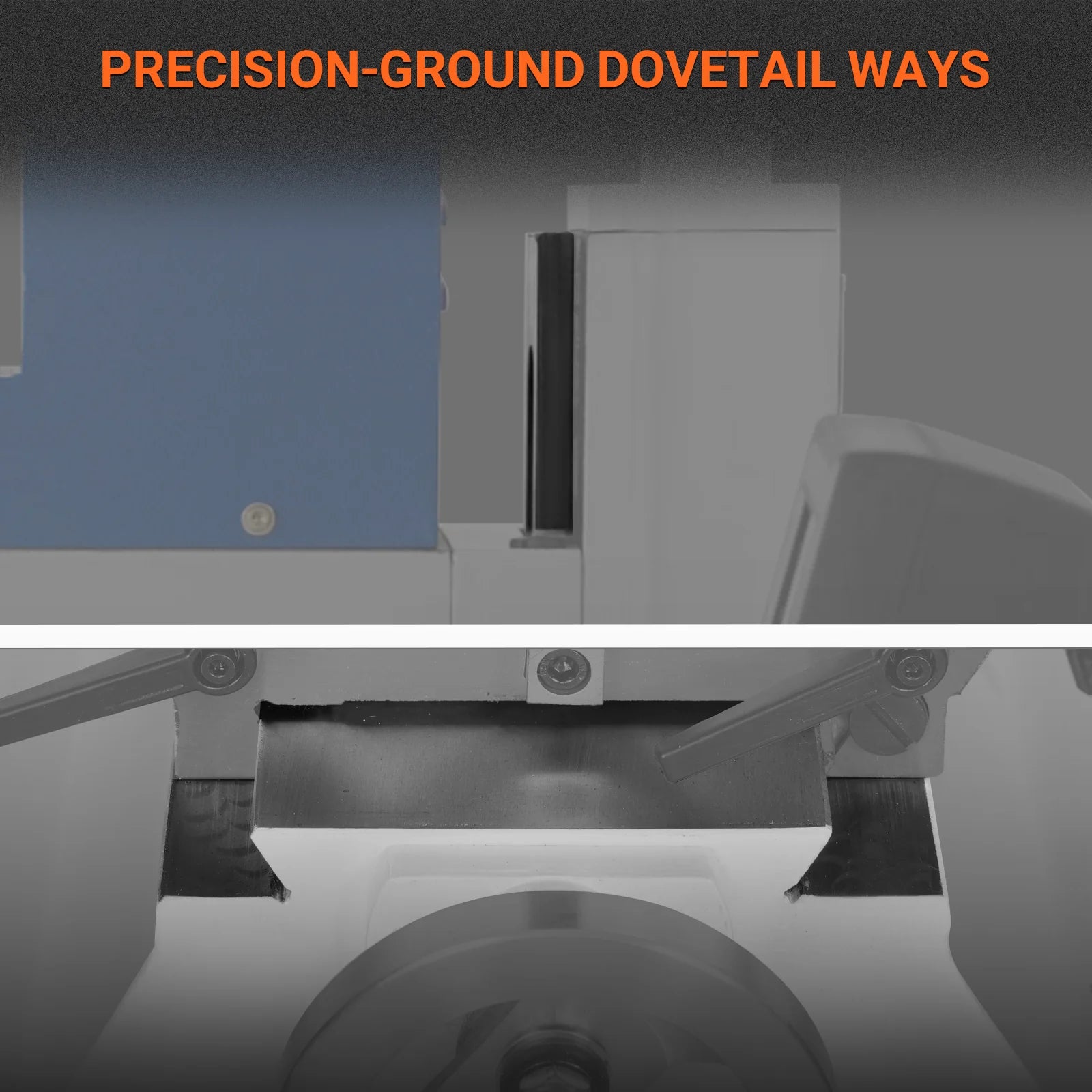

| Column Type | Square Column，Dovetail Slide |
| Drive Type | Belt |

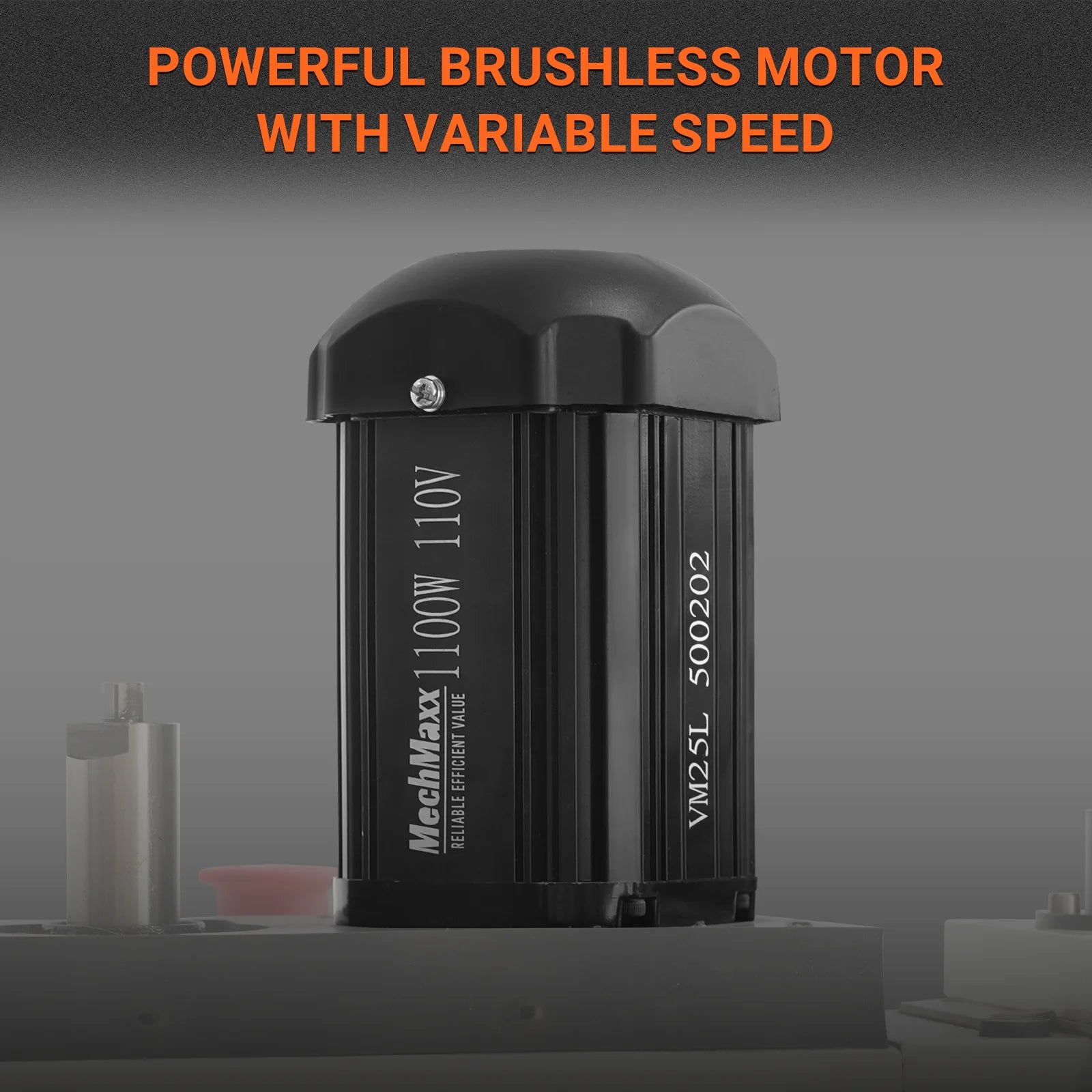

| Motor Power | 1.5HP 110V Single-Phase Brushless |
| Motor Type | DC Brushless |
| Electrical & Setup | |
| Net / Gross Weight | 260/286lbs(118/130KG) |
| Overall Dimensions | 36''x22''x37''(922X549X935mm) |
| Base Size | 14''x11''(340X275mm) |
| Shipping Dimensions | 28''x29''x37''(710X730X920mm) |
