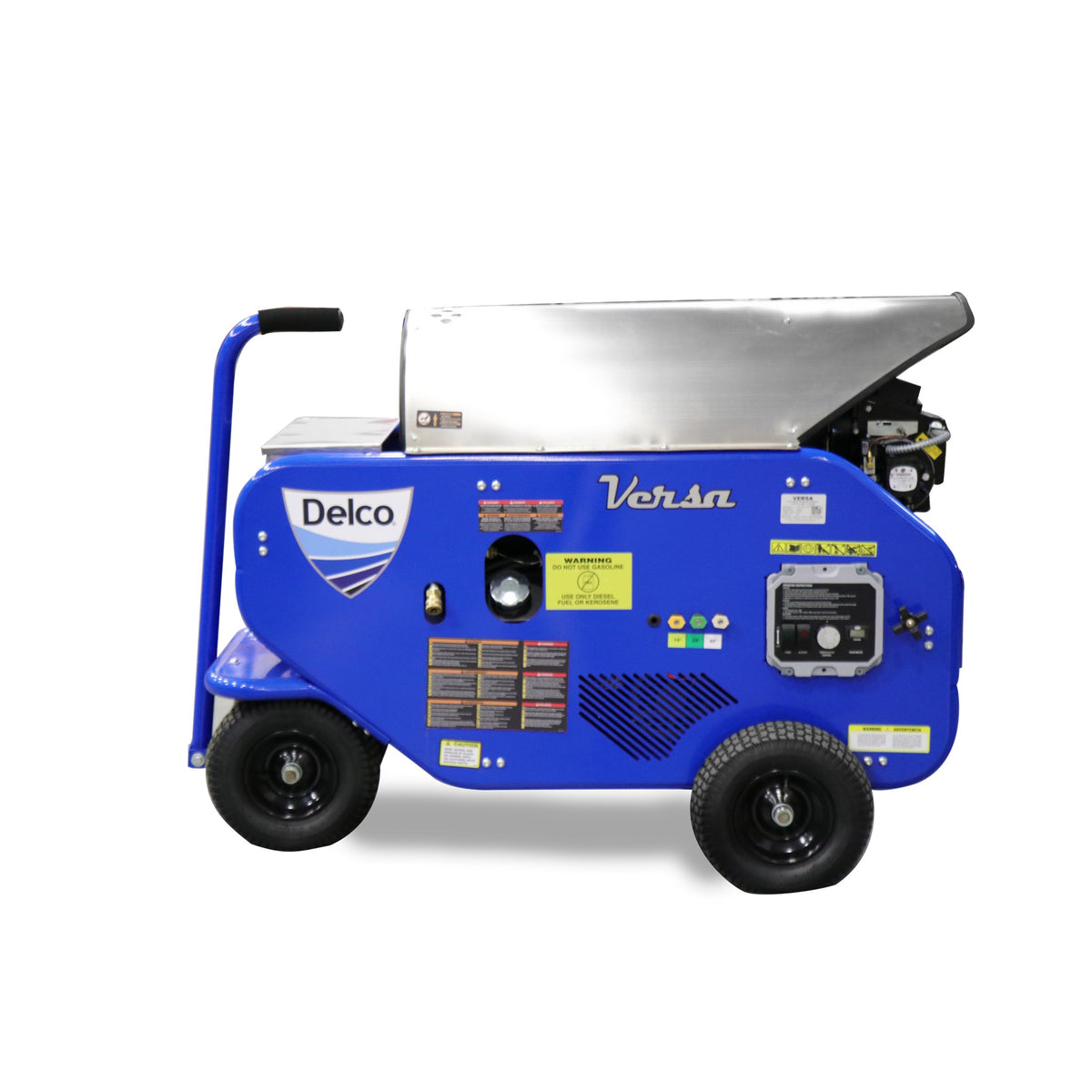

The Delco Versa DV2040041BAC2 (part 65375) is an electric hot water pressure washer. It delivers 2000 PSI at 4.0 GPM and is rated at 8,000 cleaning units. A 5HP, 230V, single-phase (23A) electric motor drives a UDOR® industrial triplex pump through a belt. An oil-fired burner heats the water in a horizontal heat exchanger with a stainless steel housing. This unit has a powder-coated frame and panels. It suits shops, facilities and contractors who need hot water cleaning from a 230V single-phase electrical supply.
Motor & Burner
- 5HP / 230V / 1-phase / 23A electric motor
- Belt drive with 1750 RPM slow-speed operation
- Horizontal heat exchanger with stainless steel housing
- 120V or 230V burner that runs on No. 1/No. 2 diesel or kerosene
- Large-capacity 6.7 gal. diesel fuel tank
- NEMA 4X electrical enclosure with burner on/off rocker switch, hour meter and time delay shut-off
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame & Construction
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated frame and panels for corrosion resistance
- 13" premium pneumatic tires
- Weight: 610 lbs.
- Dimensions: L 35" x W 30" x H 43"
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25° and 40°
- Upstream low-pressure soap injector
- Optional accessory: Auto Start/Stop Shut Off (part 7110785)
Warranty
- 10-Year Frame, 5-Year Pump, 1-Year Motor
Have questions about the Delco Versa DV2040041BAC2 or need help choosing the right hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DV2040041BAC2 |
| Part Number | 65375 |
| Pressure | 2000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 8,000 |
| Motor | 5HP / 230V / 1-phase / 23A |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Water | Hot water |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Burner Voltage | 120V or 230V |
| Fuel Tank | 6.7 gal |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 610 lbs |
| Dimensions | L 35" x W 30" x H 43" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
