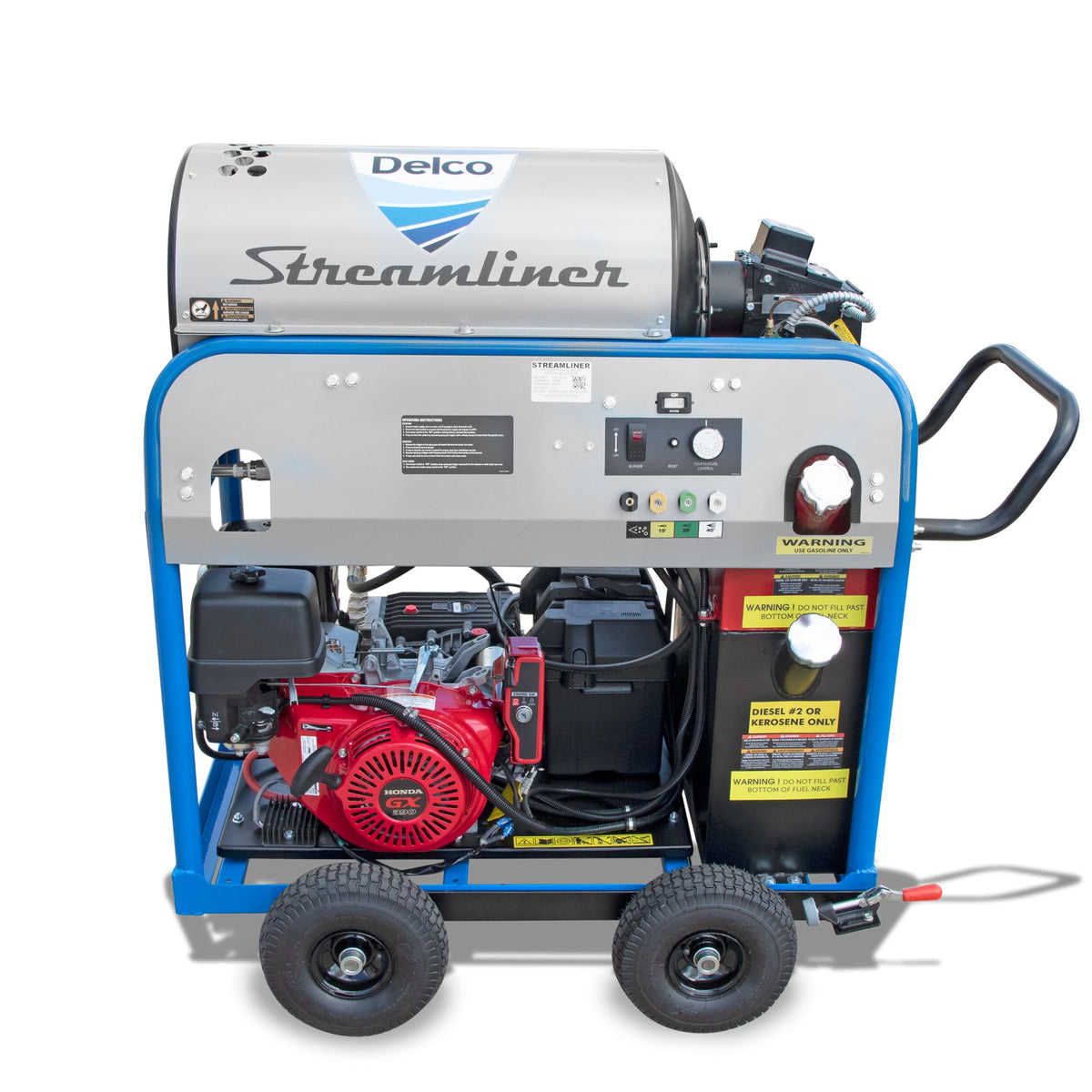

The Delco Streamliner DSL4040242EDC11 (FNA part 65361) is a mobile hot water pressure washer rated at 4000 PSI and 4.0 GPM for 16,000 cleaning units. A key-start Honda® GX390 (389cc) gas engine drives a UDOR® industrial triplex pump. An oil-fired burner runs on No. 1/No. 2 diesel or kerosene. The unit is built to be compact. It fits in a transit van or truck bed and passes through a 36" doorway, which makes it a good choice for contractors and fleet crews who need hot water cleaning on the move. Not for sale in California.
Engine & Power
- Honda® GX390 389cc key-start gas engine (battery not included)
- Low oil shutdown
- Direct drive
- 3.4 kW generator with two 120V outlets
- Isolated pump and engine plate with vibration dampeners
Burner System
- 120V burner system with on/off rocker switch and hour meter
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 1/2" schedule 80 horizontal coil
- High-temperature safety switch
- Large-capacity fuel tanks: 10.0 gal diesel and 5.0 gal gas
Pump
- UDOR® industrial triplex pump
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
Frame & Mobility
- Heavy-duty 1-1/2" round tubular steel frame
- Powder-coated for corrosion resistance
- Wheel brake system
- Dimensions: L 50" x W 32" x H 47"; weight 450 lbs
- Warranty: 10-year frame, 5-year pump, 3-year engine
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25°, and 40°
- Downstream injector
- Engine oil 10W-30
- Optional accessories: Analog Thermostat Kit (80657) and Steam Kit (80646)
Have questions about the Delco Streamliner DSL4040242EDC11? Call Pittsburgh Spray Equipment at 888-714-1410. We're happy to help.
Specifications
| Model | DSL4040242EDC11 |
| Part Number | 65361 |
| Pressure | 4000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 16,000 |
| Engine | Honda® GX390 389cc (Key-start) |
| Pump | UDOR® industrial triplex |
| Drive | Direct |
| Water | Hot |
| Burner Fuel | No. 1/No. 2 diesel or kerosene (oil-fired) |
| Burner Voltage | 120V |
| Gas Tank | 5.0 gal |
| Diesel Tank | 10.0 gal |
| Weight | 450 lbs |
| Dimensions | L 50" x W 32" x H 47" |
| Warranty | 10-Year Frame, 5-Year Pump, 3-Year Engine |
