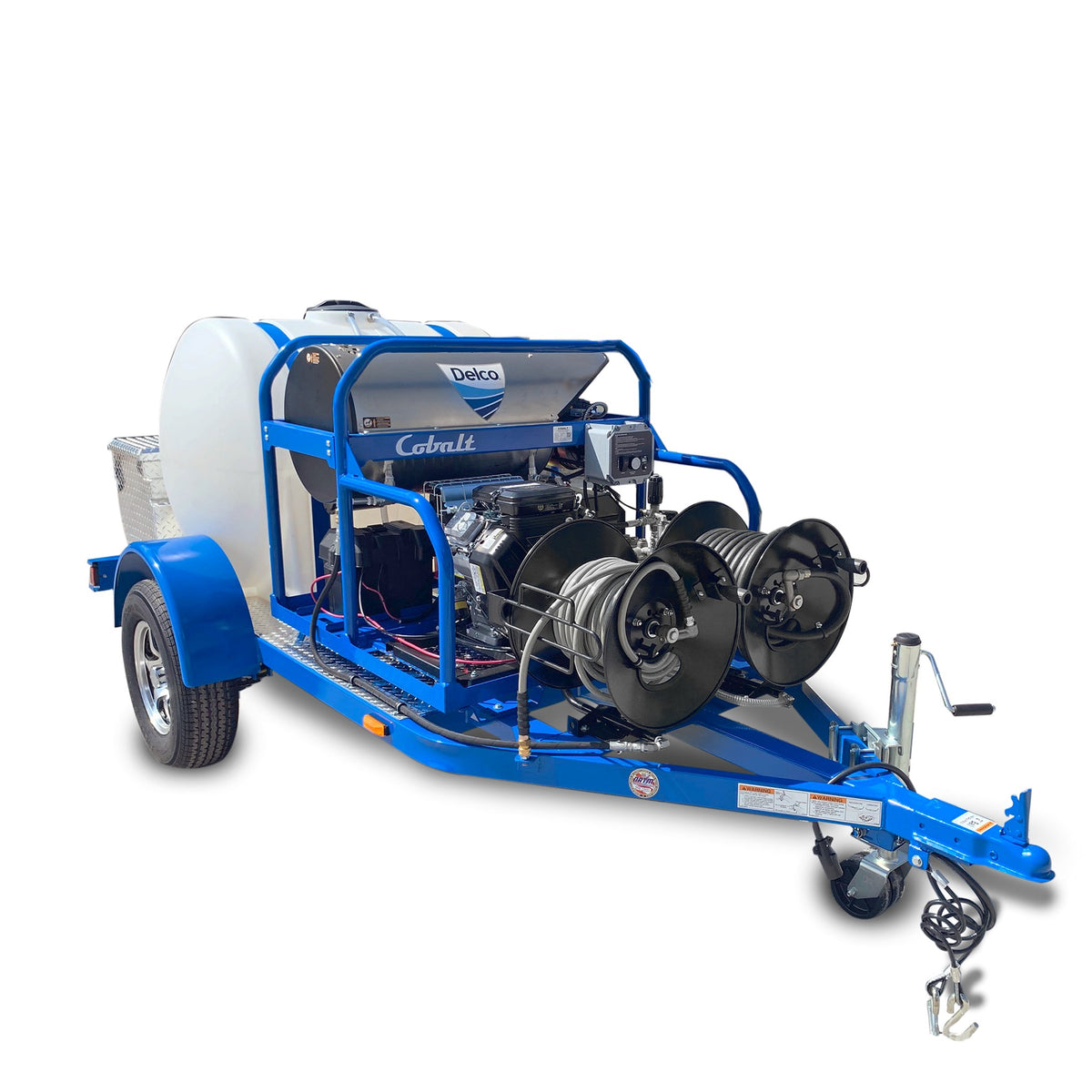

The Delco® Mobile Trailer DTRS33080241EAC11 (FNA part 95177) is a Stage 3 hot water pressure washer trailer. It delivers 3000 PSI at 8.0 GPM and is rated at 24,000 cleaning units. Power comes from a Honda® GX690 688cc gas engine with recoil / key-start, belt-driving a UDOR® industrial triplex pump. An oil-fired burner runs on No. 1/No. 2 diesel or kerosene. A 525-gallon onboard water tank keeps it working where water supply is scarce, which makes it a good fit for job sites with limited resources. Not for sale in California.
Engine, Pump & Burner
- Honda® GX690 688cc gas engine with recoil / key-start and low-oil shutdown
- UDOR® industrial triplex pump, belt drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve and external unloader with bypass hose to tank
- 120VAC oil-fired burner runs on No. 1/No. 2 diesel or kerosene
Water Supply
- 525-gallon translucent polyethylene water supply tank
- Easy-to-read water level indicators
- 200' supply hose reel with 5/8" x 90' supply hose
Hose & Reels
- 200' high-pressure hose reel with 3/8" x 100' steel-braided Armor Hose®
- Quick-connect nozzles for a variety of cleaning applications
Trailer
- Two axles with leaf-spring suspension for a smooth ride; 5200 lbs. axle rating
- Electric brake system
- 6" powder-coated C-channel frame
- LED lighting
- 2-5/16" ball coupling
- Jack with swivel wheel for easy maneuvering
- ST225/75R15 tires
- Approximate weight: 3500 lbs.
- Dimensions: 192" L (includes tongue) x 90" W x 62" H
Included & Warranty
- Hose, lance, trigger gun and downstream injector
- Nozzles: 15°, 25°, 40° and soap
- Warranty: 1-year trailer frame, 5-year pump, 3-year engine
Questions about the Delco® DTRS33080241EAC11 Mobile Trailer or help choosing the right setup? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DTRS33080241EAC11 |
| Part Number | 95177 |
| Pressure | 3000 PSI |
| Flow | 8.0 GPM |
| Cleaning Units | 24,000 |
| Engine | Honda® GX690 688cc (Recoil / Key-start) |
| Pump | UDOR® Industrial Triplex, 1750 RPM |
| Drive | Belt |
| Burner | 120VAC, oil-fired |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Water Tank | 525 gal |
| Axles | 2 (5200 lbs. rating) |
| Tires | ST225/75R15 |
| Hitch | 2-5/16" ball coupling |
| Weight | 3500 lbs |
| Dimensions | 192" L (incl. tongue) x 90" W x 62" H |
