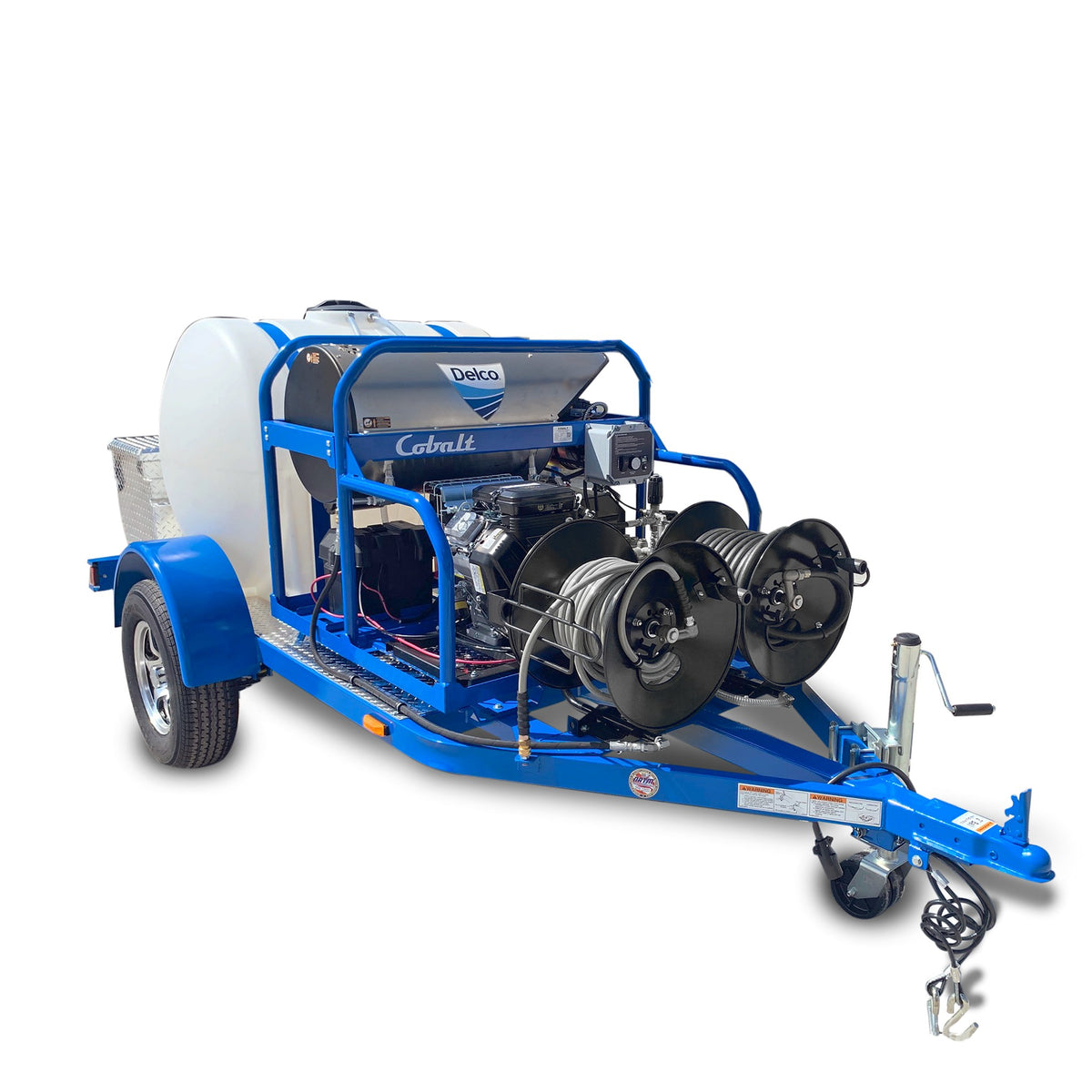

The Delco® Mobile Trailer DTRS24050251EDC11 (part 95163) is a self-sufficient hot-water pressure washer trailer. It delivers 4000 PSI at 5.0 GPM for 20,000 cleaning units. A HONDA® GX690 688cc gas engine with recoil/key-start powers a belt-driven General Pump® industrial triplex pump. The oil-fired 12VDC burner runs on No. 1/No. 2 diesel or kerosene. With an onboard 225-gallon water tank, this Stage 2 trailer suits job sites where water supply is scarce or resources are limited. Not for sale in California.
Power & Pump
- HONDA® GX690 688cc gas engine, recoil/key-start, with low-oil shutdown
- General Pump® industrial triplex pump, belt drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose to tank
Hot-Water System
- Oil-fired 12VDC burner
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 4000 PSI @ 5.0 GPM, 20,000 cleaning units
Water Supply & Hose
- 225 gal. translucent polyethylene water supply tank with easy-to-read water level indicators
- (1) 200' high-pressure hose reel with 100' of 3/8" steel-braided Armor Hose®
- (1) 200' supply hose reel with 5/8" x 90' supply hose
- Quick-connect nozzles for a variety of cleaning applications
Trailer
- 6" powder-coated C-channel trailer frame
- Single 3500 lb. axle with leaf-spring suspension for a smooth ride
- Electric brake system and LED lighting
- ST205/75R14 tires and 2" ball coupling
- Jack with swivel wheel for easy maneuvering
Included & Warranty
- Includes the hose, lance, trigger gun and downstream injector
- Nozzles: 15°, 25°, 40° and soap
- Warranty: 1-year trailer frame, 5-year pump, 3-year engine
Have questions about the Delco DTRS24050251EDC11 Mobile Trailer or need help choosing the right setup? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DTRS24050251EDC11 |
| Part Number | 95163 |
| Pressure | 4000 PSI |
| Flow | 5.0 GPM |
| Cleaning Units | 20,000 |
| Engine | HONDA® GX690 688cc (Recoil / Key-start) |
| Pump | General Pump® industrial triplex, 1750 RPM |
| Drive | Belt |
| Burner | 12VDC, oil-fired |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Water Tank | 225 gal |
| Axle | (1) 3500 lbs, leaf-spring suspension |
| Tires | ST205/75R14 |
| Hitch | 2" ball coupling |
| Weight | 1500 lbs |
| Dimensions | L 156" (includes tongue) x W 68" x H 62" |
