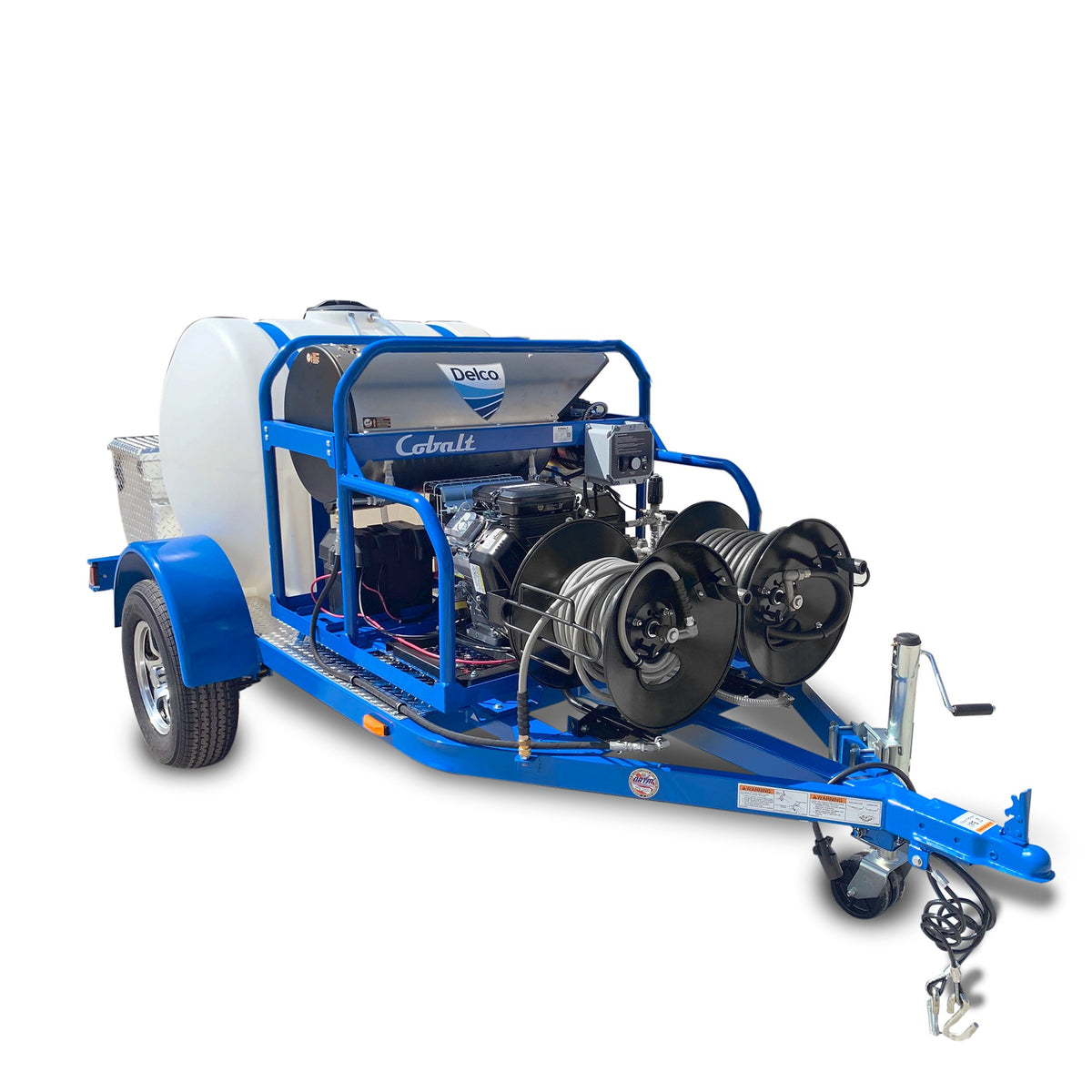

The Delco® Mobile Trailer DTRS23555141EDC11 (part 95180) is a self-sufficient, Stage 2 hot-water pressure washer trailer. It delivers 3500 PSI at 5.5 GPM (19,250 cleaning units) from a 679cc CRX® 680 gas engine with recoil and key start. The engine belt-drives a UDOR® industrial triplex pump, and an oil-fired 12VDC burner heats the water. An onboard 225-gallon water tank lets it work where water supply is scarce, so it suits contractors and crews on job sites with limited resources. Not for sale in California.
Power & Pump
- CRX® 680 gas engine, 679cc, with recoil / key-start and low-oil shutdown
- UDOR® industrial triplex pump, belt-driven at 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose to tank
Hot Water Burner
- 12VDC oil-fired burner
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 3500 PSI at 5.5 GPM, rated at 19,250 cleaning units
Hoses, Reels & Included Accessories
- (1) 200' high-pressure hose reel with 100' of 3/8" steel-braided Armor Hose®
- (1) 200' supply hose reel with 5/8" x 90' supply hose
- Includes a trigger gun, lance, downstream injector and hose
- Quick-connect nozzles: 15°, 25°, 40° and soap
Trailer & Water Supply
- 225-gallon translucent polyethylene water tank with easy-to-read water level indicators
- Single 3500 lb. axle with leaf-spring suspension for a smooth ride
- Electric brake system
- 6" powder-coated C-channel frame with LED lighting
- 2" ball coupling and ST205/75R14 tires
- Jack with swivel wheel for easy maneuvering
- Weight: 1500 lbs
- Dimensions: L 156" (includes tongue) x W 68" x H 62"
Warranty
- 1-year trailer frame
- 5-year pump
- 3-year engine
Have questions about the Delco® Mobile Trailer DTRS23555141EDC11 or need help choosing the right hot-water trailer for your operation? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Pressure | 3500 PSI |
| Flow | 5.5 GPM |
| Cleaning Units | 19,250 |
| Engine | CRX® 680 (Recoil / Key-start) |
| Displacement | 679cc |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Burner | 12VDC, oil-fired |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Water Tank | 225 gal |
| Axle | (1) 3500 lbs, leaf-spring |
| Tires | ST205/75R14 |
| Hitch | 2" ball coupling |
| Weight | 1500 lbs |
| Dimensions | L 156" (incl. tongue) x W 68" x H 62" |
| Part Number | 95180 |
