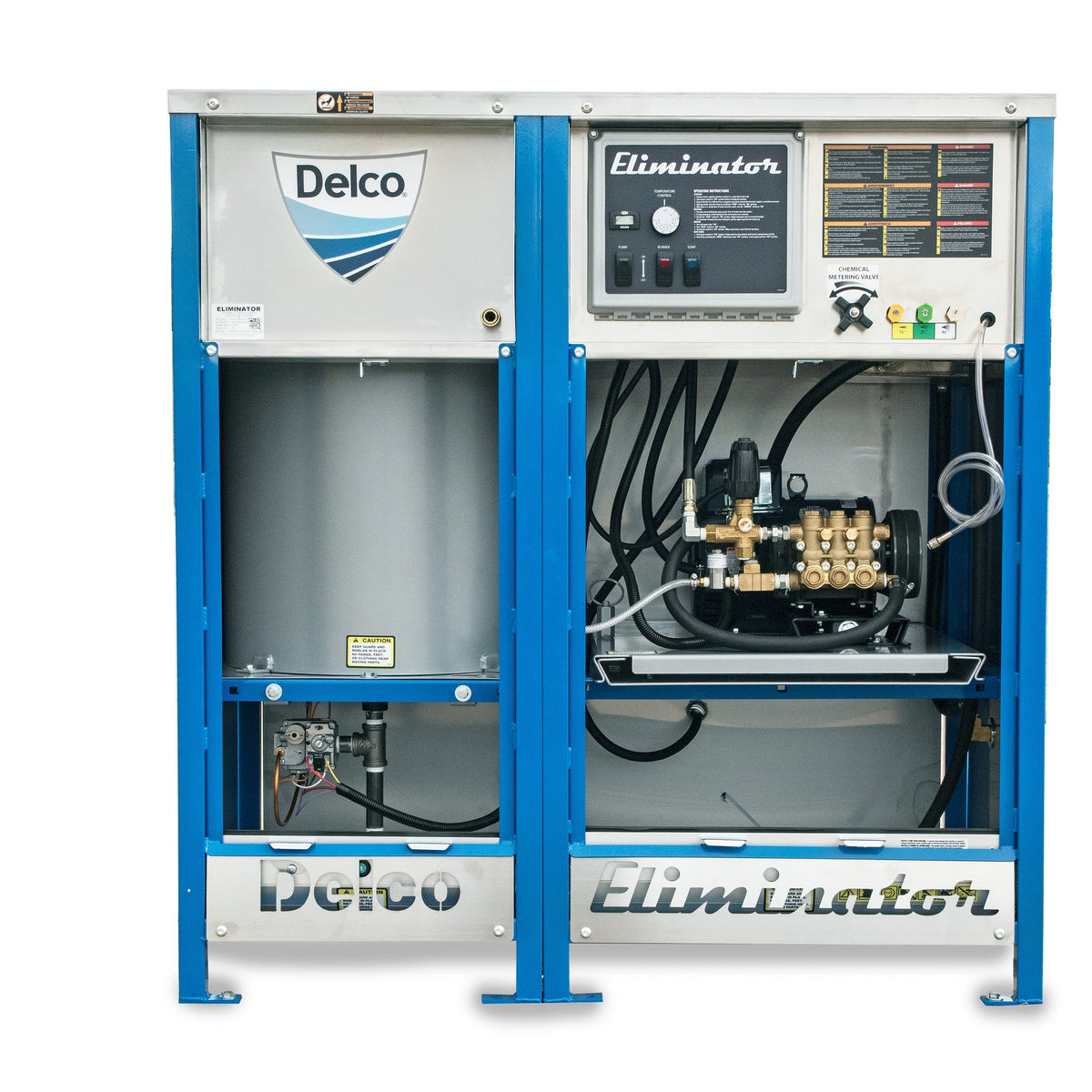

The Delco Eliminator ELM3050041CNG (FNA part 65190) is an industrial, stationary hot water pressure washer built into an enclosed cabinet designed for easy servicing. It delivers 3000 PSI at 5.0 GPM (15,000 cleaning units), using a 10HP, 230V, 3-phase, 25A electric motor that belt-drives a UDOR® industrial triplex pump. A 380,000 BTU natural gas burner heats the water. A 24V operating system with time delay shut-off is standard. It suits facilities that need a permanently installed, wall-mounted hot water cleaning station with 3-phase power and a natural gas supply.
Performance & Burner
- 3000 PSI at 5.0 GPM for 15,000 cleaning units
- 380,000 BTU natural gas burner
- 1/2" schedule 80 vertical coil
- Float tank
- 1750 RPM slow-speed operation
UDOR® Pump & Drive
- UDOR® industrial triplex pump, belt driven
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
- Slide-out motor/pump tray for service access
Controls & Electrical
- 10HP / 230V / 3-phase / 25A electric motor
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
- 24V operating system with time delay shut-down
- Remote box ready-wired
- High-pressure soap with metering valve
Cabinet & Frame
- Wall-mount, stationary design
- Powder-coated frame for corrosion resistance
- Corrosion-resistant stainless steel vented panels
- Roll-down doors with lock
- Movable water inlet/outlet point (3 locations: front, side, or back)
- Dimensions: L 52" x W 36" x H 51"; weight 860 lbs
Included, Warranty & Options
- Includes 3/8" x 50' steel-braided Armor Hose®, lance, trigger gun, high-pressure soap injector, and 15°, 25° and 40° nozzles
- Warranty: 10-year frame, 5-year pump, 1-year motor
- Optional accessories: Draft Diverter (7100283), Auto Start/Stop Shut-Off (7110785), Remote Box Kit 24V (80654)
Have questions about installation requirements, accessories or whether the Eliminator ELM3050041CNG is right for your facility? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | ELM3050041CNG |
| Part Number | 65190 |
| Series | Eliminator |
| Pressure | 3000 PSI |
| Flow | 5.0 GPM |
| Cleaning Units | 15,000 |
| Water | Hot water |
| Motor | 10HP / 230V / 3-phase / 25A |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Burner Output | 380,000 BTU |
| Burner Fuel | Natural gas |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 860 lbs |
| Dimensions | L 52" x W 36" x H 51" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
