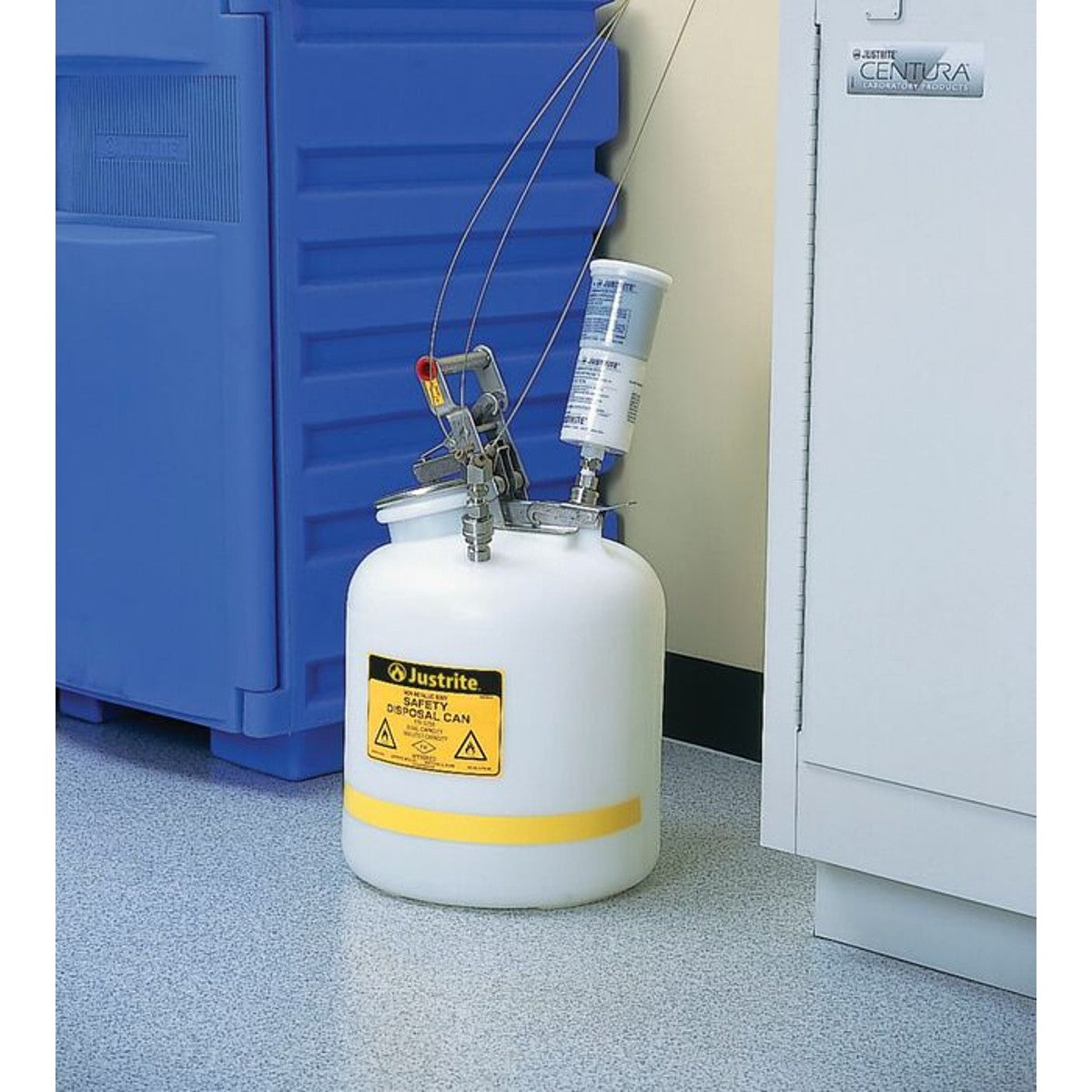

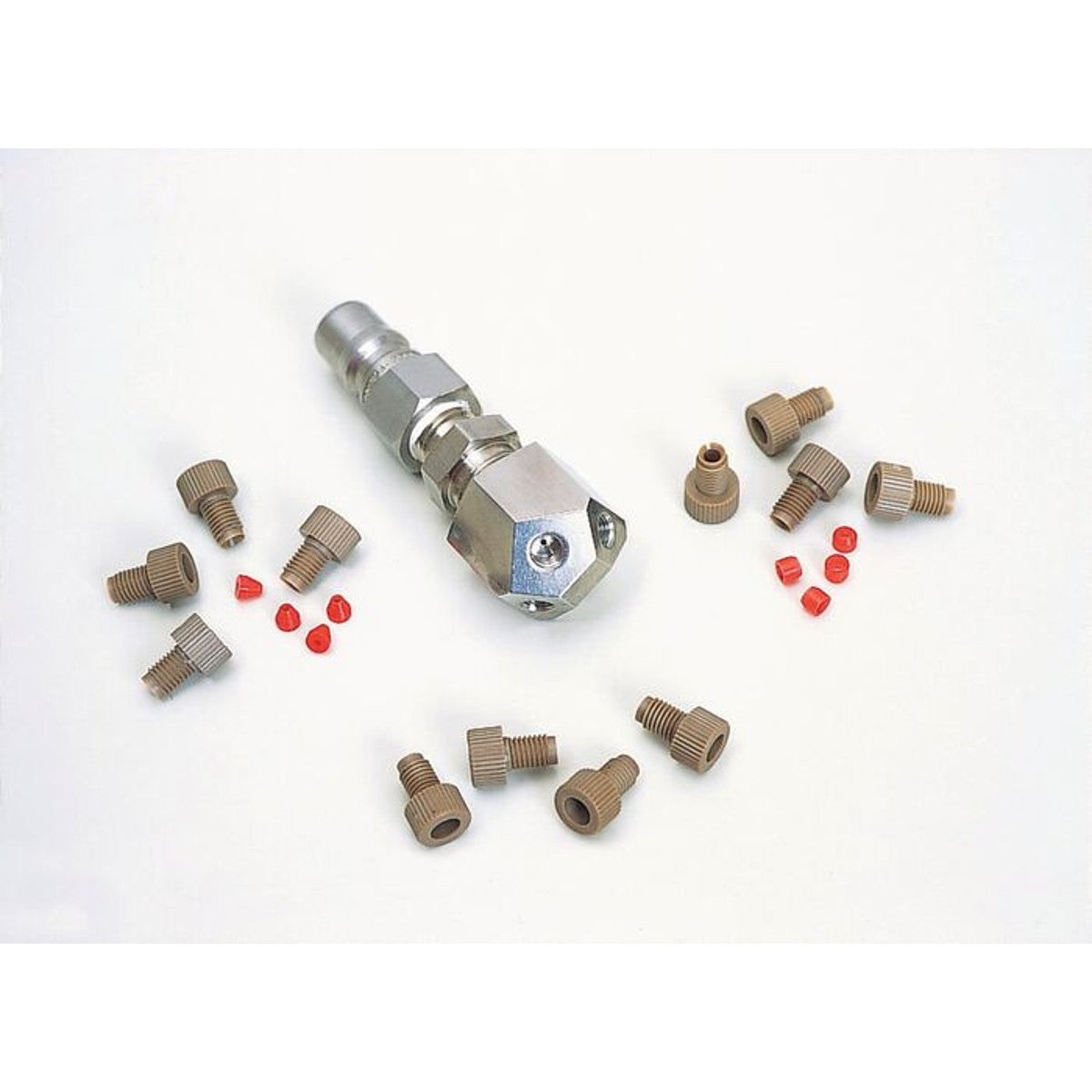

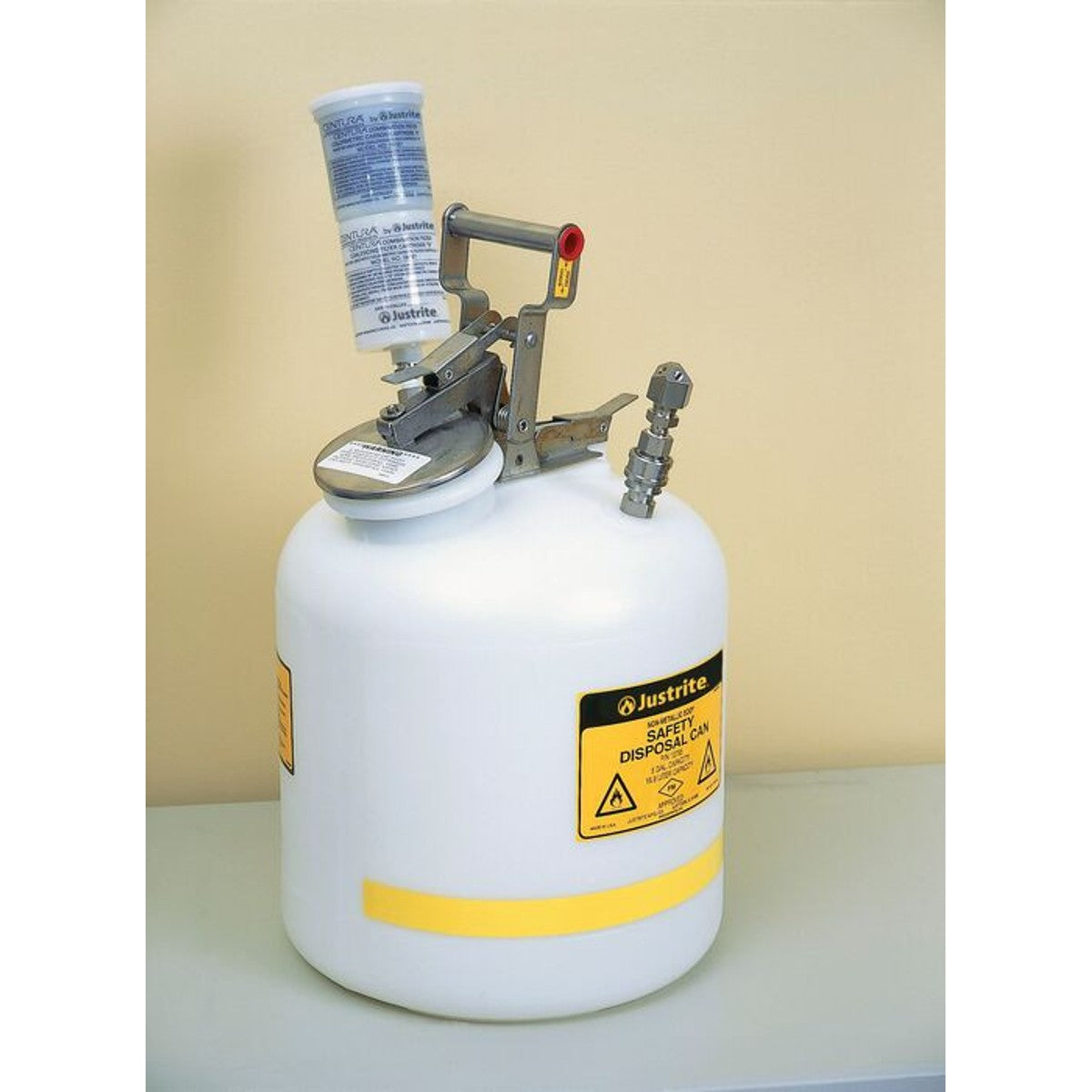

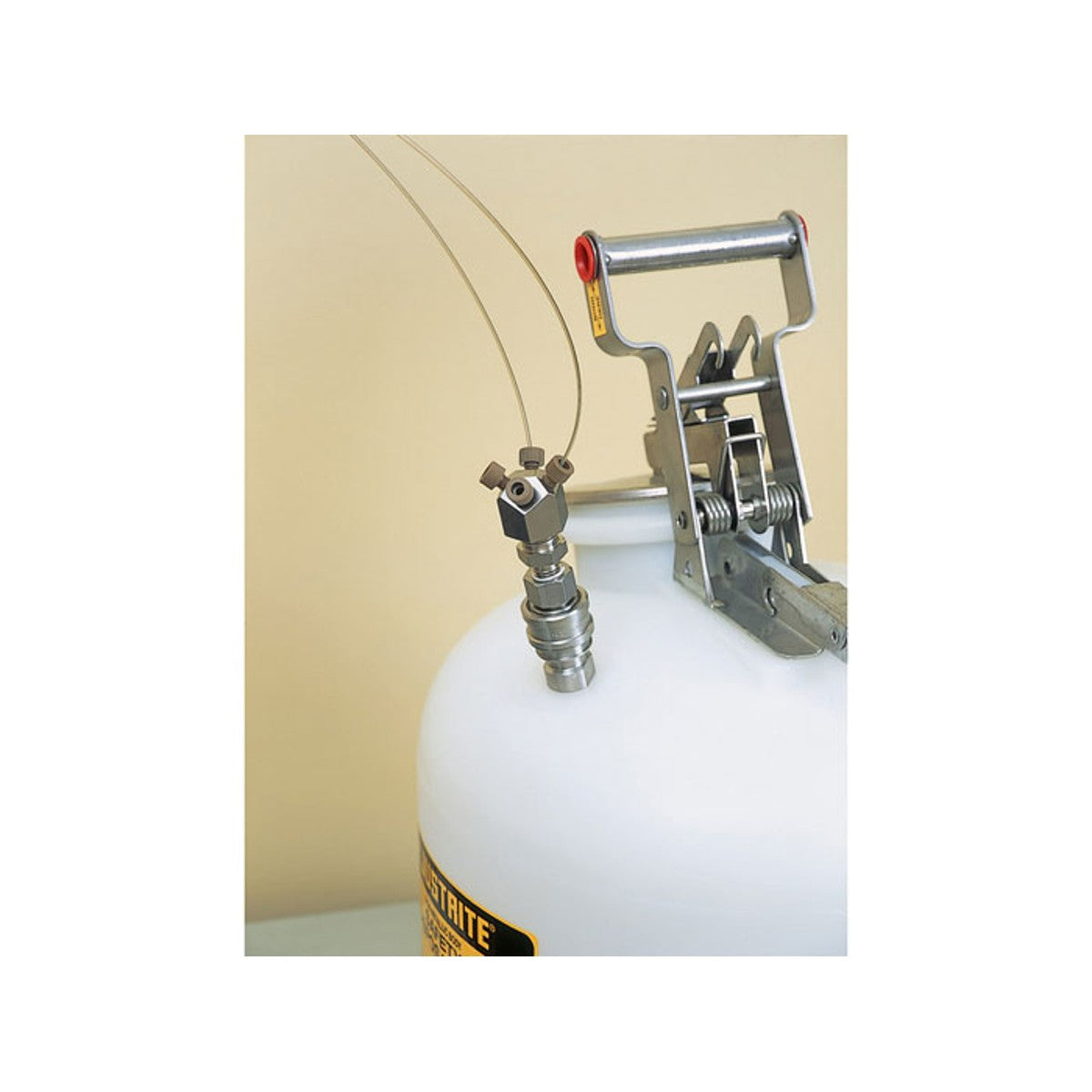

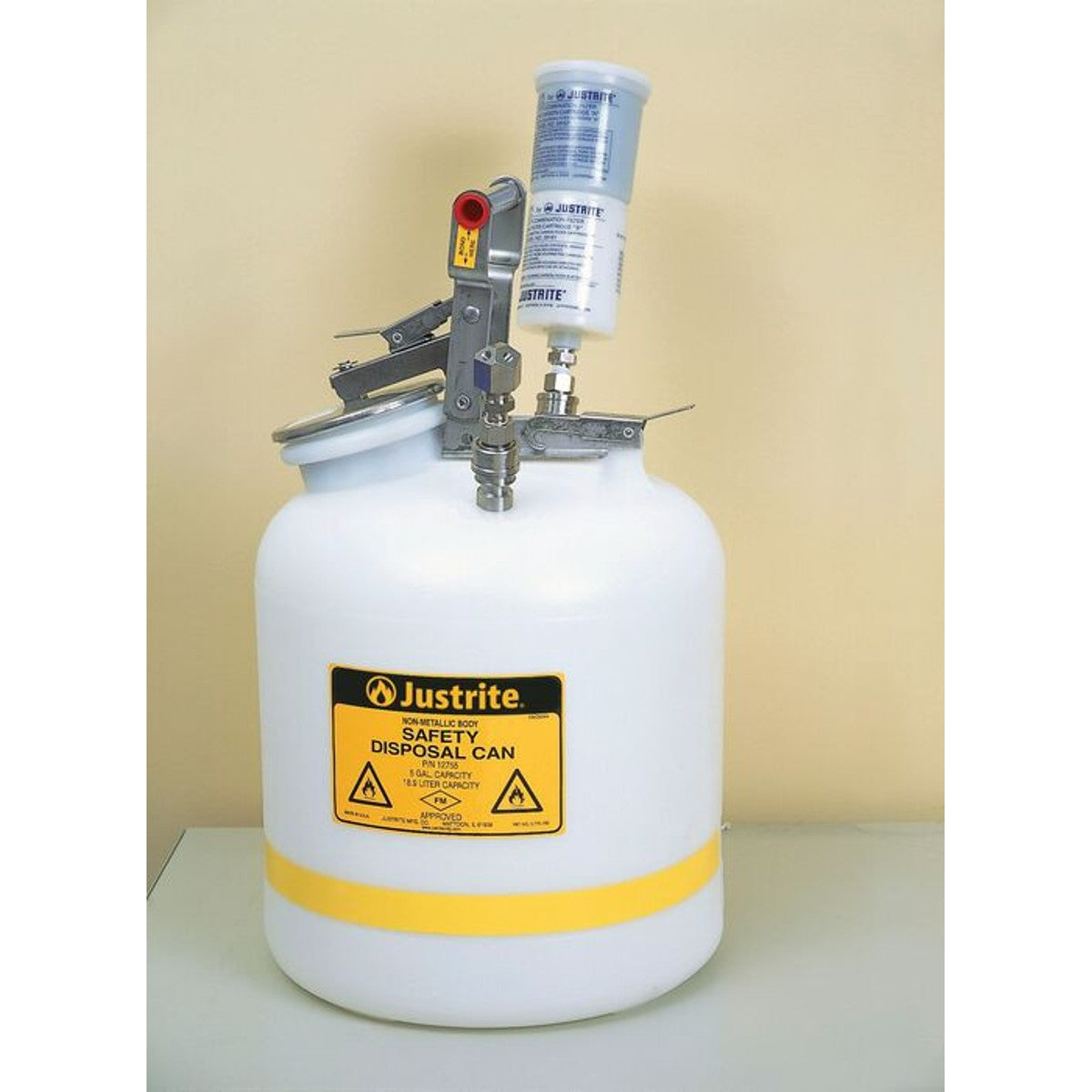

Safely collect waste from up to four waste lines from HPLC processes into a single intake fitting. Kit accommodates either 1/16" (2-mm) OD or 1/8" (3-mm) OD lines. Approximately 3-1/2" (89-mm) long and made of No. 316 gauge stainless steel, manifold fits only a stainless steel intake fitting. Four ports are tapped to accommodate 1/4-28 threads of the supplied fittings. PEEK™ fittings include four each: 1/16" (2-mm) and 1/8" (3-mm) OD tube fittings with corresponding PCTFE ferrules for compression fit of waste line. Four plug caps are provided to close unused ports. Multiple manifolds may be used on a custom-designed quick-disconnect container as long as one fitting remains unused. Safety container with manifold installed is OSHA compliant and meets NFPA Code 30. Use on round containers; not for use on oval style can.
Additional Specs
| International Model No.: | 28168 |
| FM Approval: | Yes |
| Color: | Silver |
| Material Specifications: | Stainless Steel |
| Dimensions, Exterior: | 2.125" H x 2.75" W x 8.75" L |
| Dimensions, Exterior: | 54mm H x 70mm W x 222mm D x 222mm L |
| Net Weight, lbs: | 0.6 |
| Net Weight, kg: | 0.3 |
