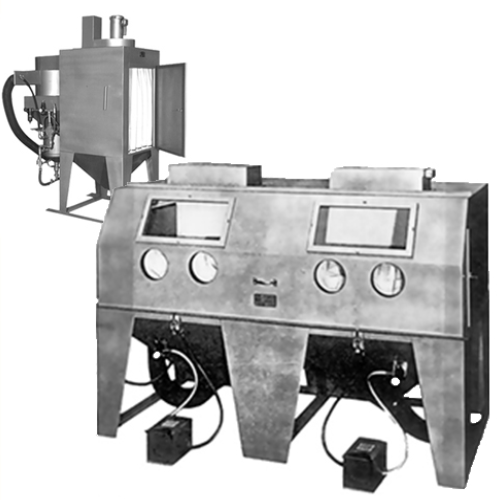

TRINCO DRY BLAST EQUIPMENT MODEL 96x48SL/PC PRESSURE CABINET
TRINCO MODEL 96x48SL/PC complete with 1 each Abrasive Separator, 1 each Enclosed Dust Collector and 2 each operator workstations
Ruggedly built of 14 Gauge welded steel
- Double floor – 1/8” Expandex steel plus carbon screen
- Tungsten carbide nozzle
- Fluorescent lighting to eliminate shadows and minimize energy usage
- Large 12”x24” Safety glass window for excellent visibility and increased operator efficiency
FEATURES:
- Abrasive separator is constructed of 10 gauge welded steel for durability, and tuneable for different media
- Dust collector is constructed of 14 Gauge steel
- ASME Coded pressure vessel with easy access clean out port, automatic sealing plunger, and pneumatic vibrator
- ¾” Piping
- 30-120 P.S.I. Pressure range
- Abrasive capacity – 100 Lb.
- Vibrating partical screen in abrasive separator
- Includes:
Airline water filter
Pressure regulator and gauge Safety enclosed foot pedal
Neoprene blast gloves ½” I.D. Heavy duty blast nozzle
Tungsten carbide nozzle ¼” I.D. Standard, 1/8”, 3/16” and 5/16” optional
DUST COLLECTOR
- Pull through type dust collector with motor and impeller on “clean air side”
- Includes 30 tubular filter bags (145 Square feet surface area)
- Manual bag shaker
Includes:
- Two large side doors
- 850 CFM Abrasive Separator and Pull-Through Dust Collector with 30 tubular filter bags
- Single operator model with two workstations
