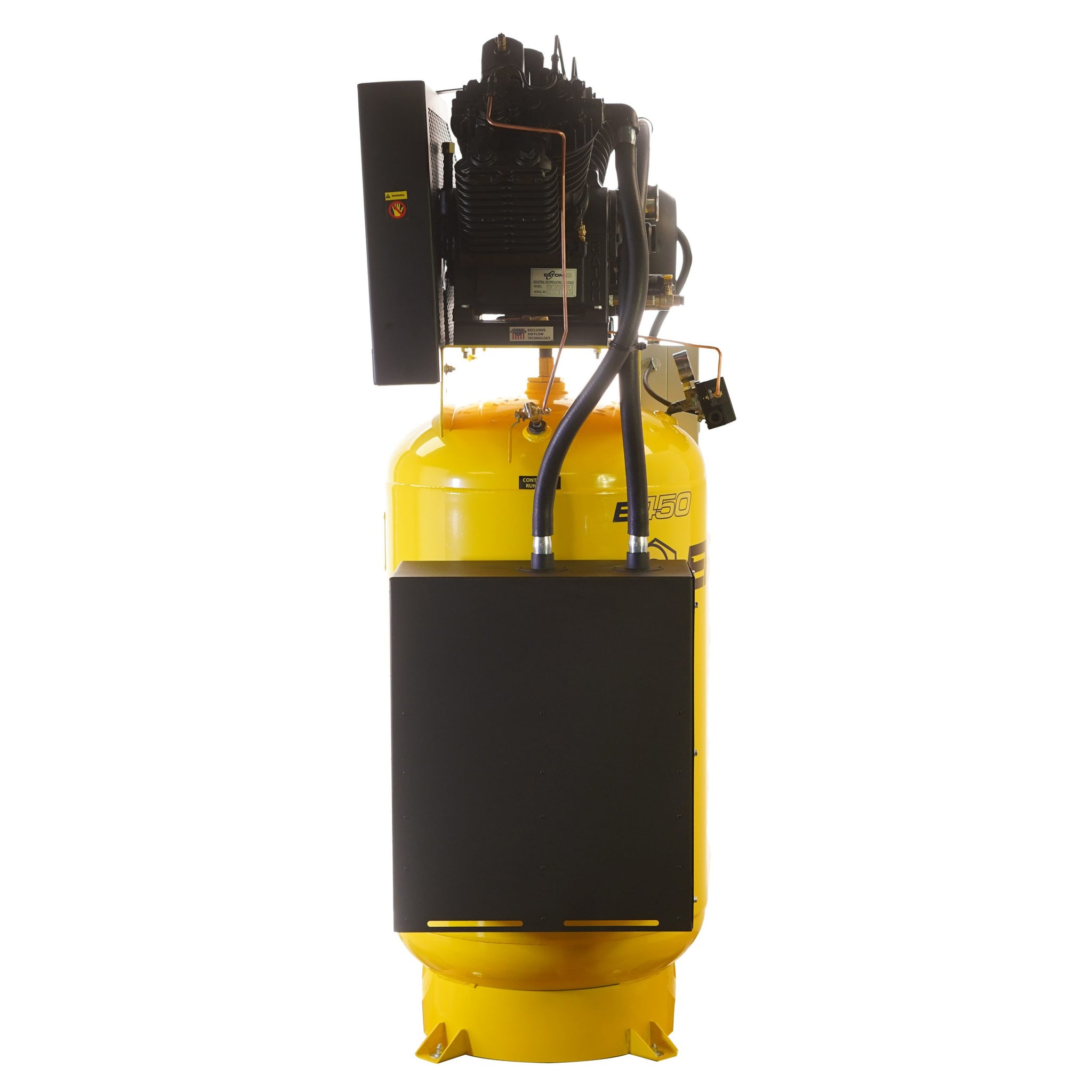

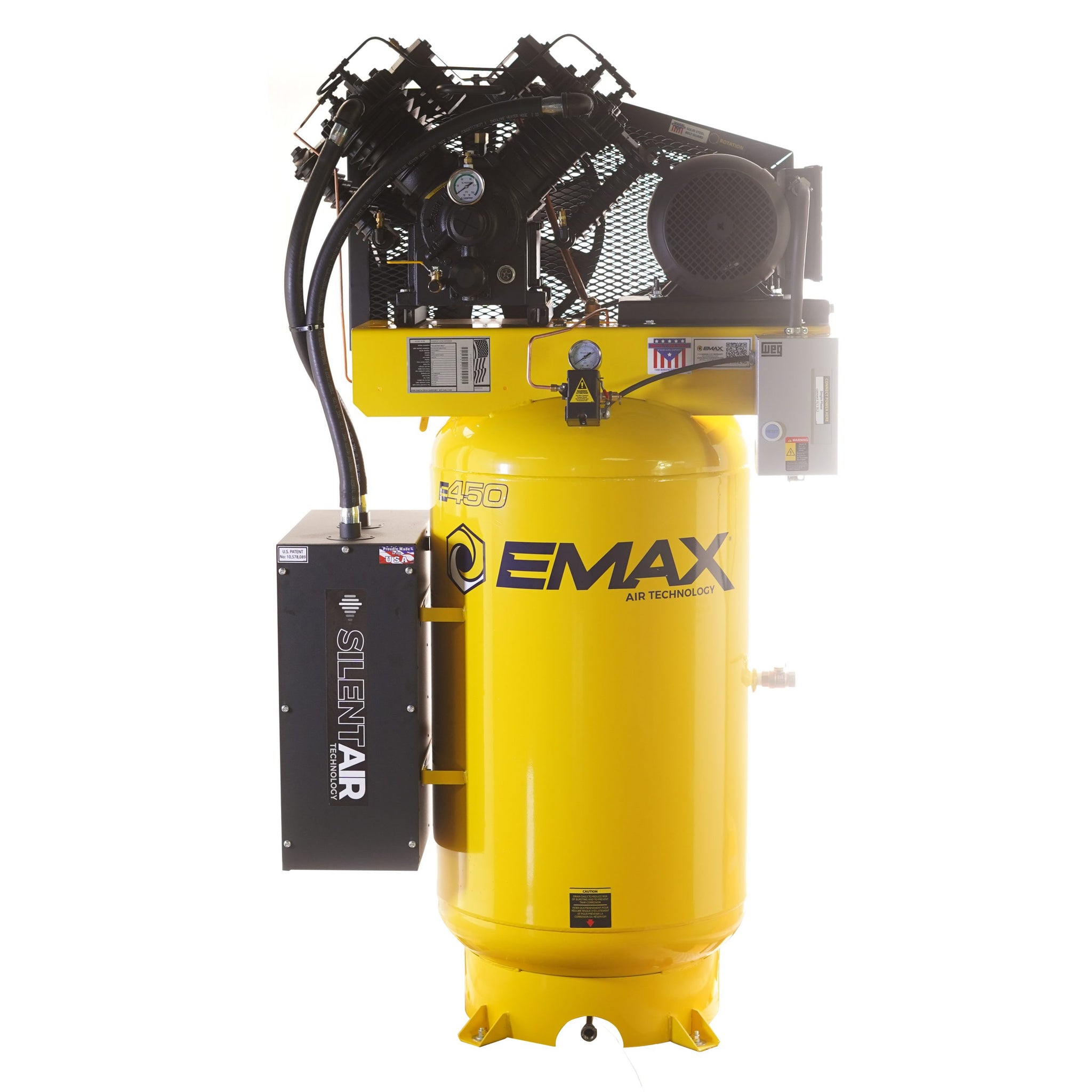

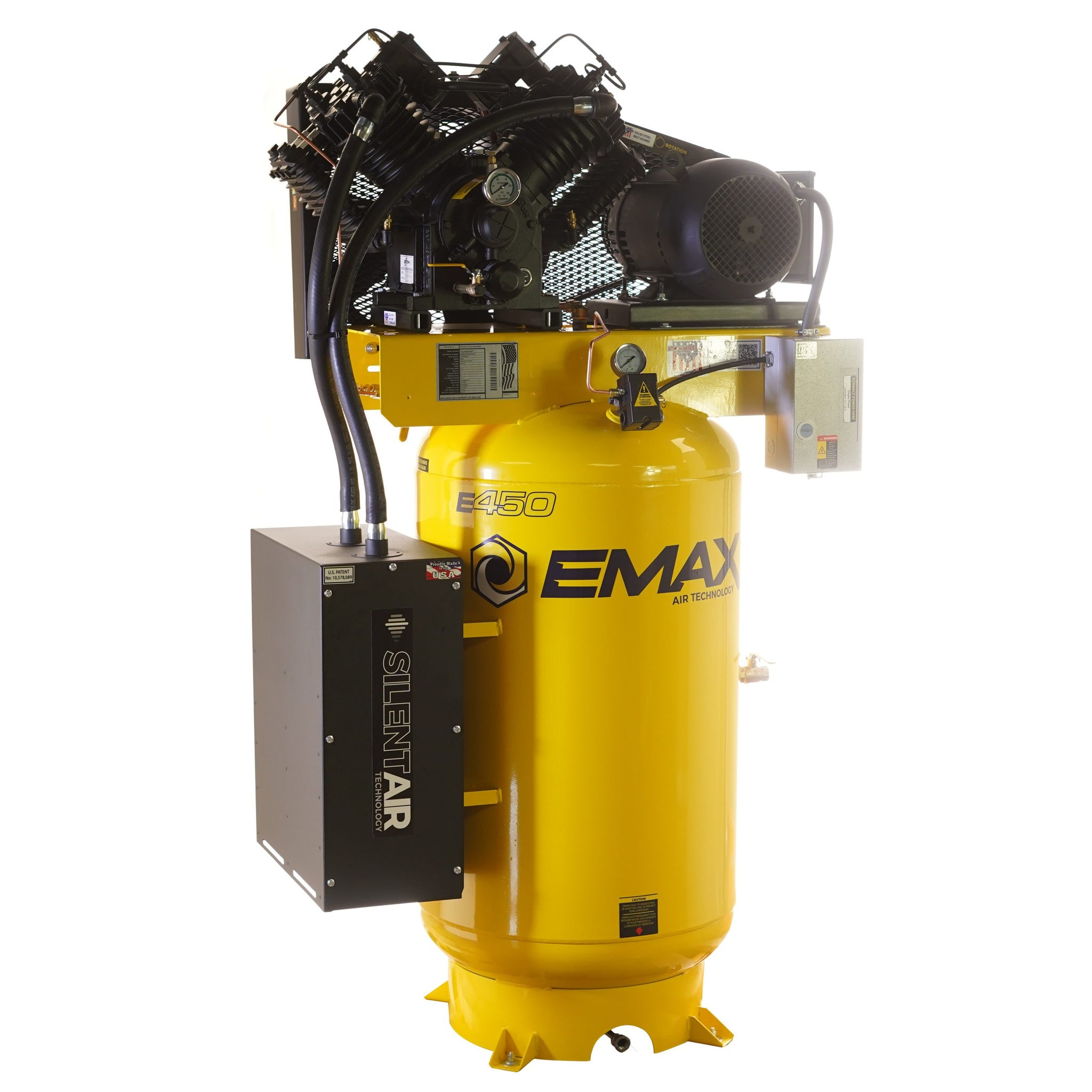

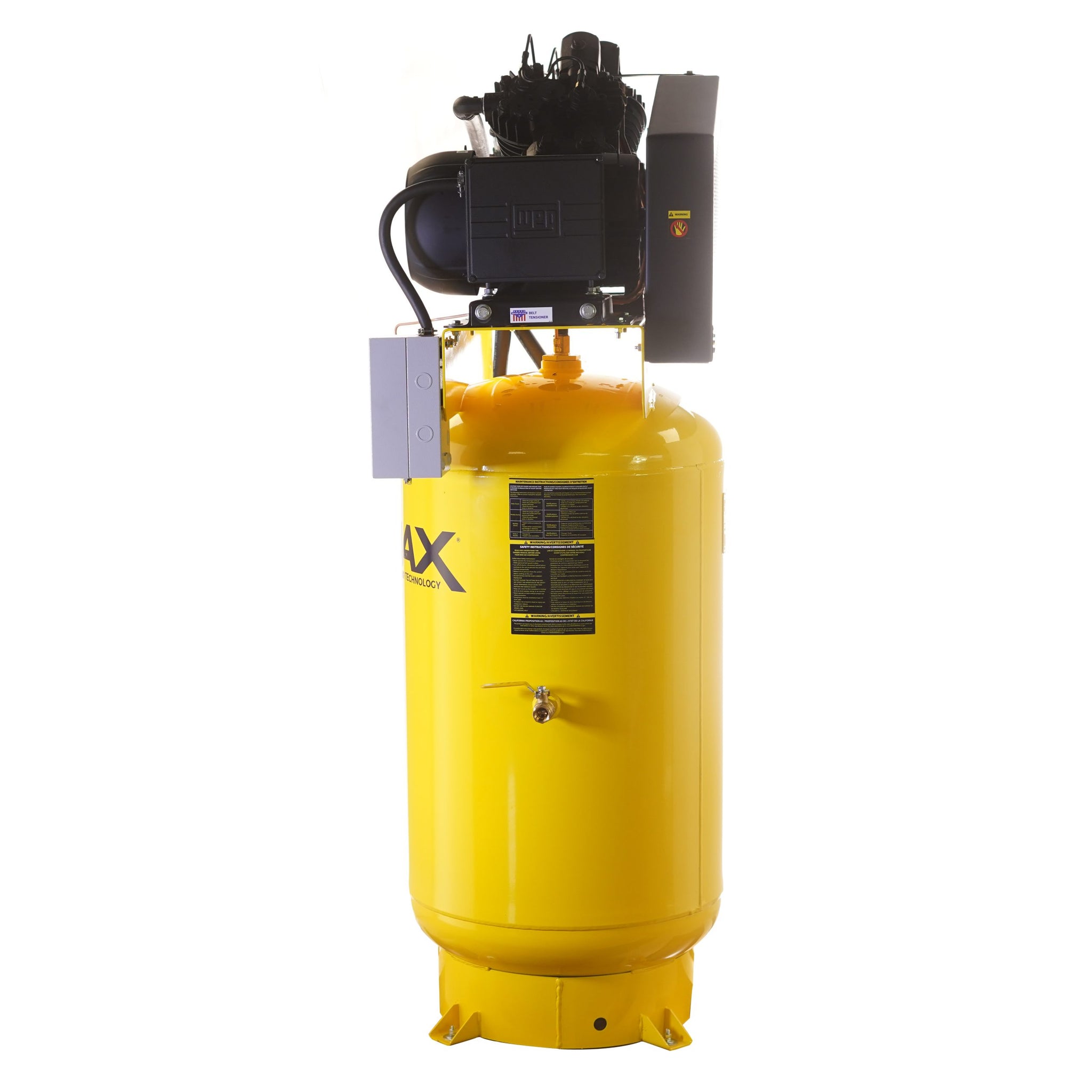

The EMAX Silent Air Industrial ESPR07V080V3-460 is a two-stage, pressure-lubricated piston air compressor that pairs a 7.5 HP TEFC electric motor with an 80-gallon vertical tank. It delivers 31 CFM with a maximum pressure of 175 PSI and runs on 460V, 3-phase power. Its patented Silent Air™ noise suppression and cast iron pump make it well suited to industrial facilities that need dependable air in high-stress, continuous-duty environments.
Silent Air™ Noise Suppression
Up to 50% Quieter: The patented Silent Air™ silencer system achieves up to 50% quieter operation, with noise levels at or below conversational volume. Each 10 dBA drop equals a 50% reduction to the human ear.
Service-Friendly Design: Unlike enclosed cabinet systems, which are costly and restrict service access, the silencer is cost-effective, easy to service, and keeps the unit accessible.
Intake Noise Control: The system targets intake noise, the loudest source of compressor sound. It uses noise-reducing baffle plates and high-capacity filter media.
Enhanced Filtration: The intake system provides up to 1000% more filtration than standard setups.
Pressure Lubrication System
Gear-Driven Oil Pump: An oil pump mounted to the rear of the crankshaft generates positive oil pressure. It delivers a continuous flow of oil to each bearing point, keeping bearings cool and reducing friction and internal wear.
Rifle-Drilled Crankshaft & Rods: The crankshaft and connecting rods are rifle-drilled. Oil travels directly to the piston pin, the bearings, and other high-friction wear points.
Spin-On Oil Filter: An automotive-style spin-on oil filter keeps the oil clean and simplifies maintenance during oil changes. The pump holds 2 quarts of oil.
Oil Pressure Gauge: An analog pressure gauge lets operators monitor oil pressure accurately.
Pump Longevity: Estimated pump life is 70,000 hours.
Cast Iron Two-Stage Pump
Cast Iron Construction: The pump (model APP4V1043TP) has a cast iron crankcase, cylinder heads, cylinders, connecting rods, crankshaft, and high-pressure piston. Cast iron offers durability and rigidity that aluminum components cannot match.
Rebuildable Connecting Rods: The CNC-machined solid cast iron connecting rods provide maximum rigidity at the crankshaft end. Replaceable bearing inserts and wrist pins make the rod assembly fully rebuildable.
Four-Ring Piston Design: Each piston uses four overlapping rings. Two oil control rings remove excess oil on the downstroke, and two compression rings prevent blow-by. This design maximizes sealing, reduces oil carryover, and extends ring life.
Balanced Low-Pressure Pistons: The low-pressure pistons are aluminum for balance and efficiency, since they operate under low stress (about 45 PSI).
Non-Oil-Absorbent Gaskets: High-quality gaskets minimize oil leakage and reduce maintenance requirements.
Drive System & Cooling
Heavy-Duty Flywheel: A 20" cast iron flywheel's added mass generates greater kinetic energy, which reduces amp draw and energy consumption. Its 9 large cooling fins enhance pump cooling.
Dual B-Groove Belts: Two B-style groove belts provide a larger contact surface to extend belt life. A belt tensioner is included.
Motor & Pump Speed: The TEFC motor runs at 1,740 RPM, and the pump turns at a low 590 RPM.

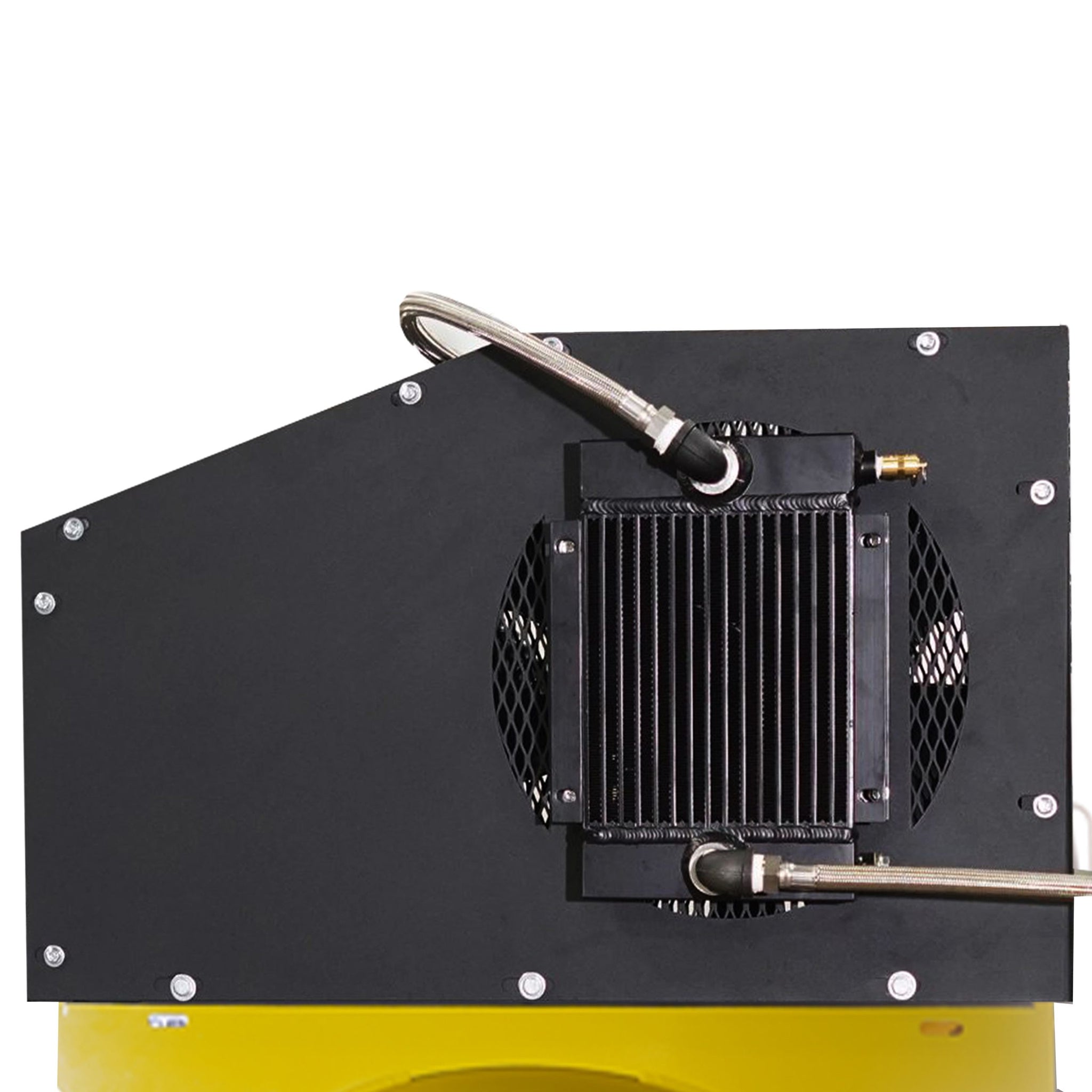

Aftercooling: The unit is equipped with a radiator aftercooler and a pump riser.
Electrical, Tank & Installation
Power Requirements: The unit runs on 460V, 3-phase power. It draws 10.3 FLA (including the 1.15 service factor) and 66.2 locked rotor amps, with a recommended 20A breaker.
Magnetic Starter: A magnetic starter is included, with a fixed start type.
Automatic Tank Drain: An automatic drain is fitted to the 80-gallon vertical tank, which has a 3/4" outlet.
Certifications: The compressor is ETL, ASME, and CRN certified.
Maintenance: The compatible service kit is EFKIT008AWBS.
Not sure whether 31 CFM at 175 PSI is the right fit for your tools and workload? Call Pittsburgh Spray Equipment at 888-714-1410, and our team will help you size the right EMAX compressor for your application.
Specifications — ESPR07V080V3-460
| HP | 7.5 |
| Tank Size | 80 |
| Voltage +/- 10% | 460 |
| Phase | 3 |
| Drive Type | Electric |
| Tank Drain | Automatic |
| Pump Type | Pressure |
| CFM | 31.00 |
| Silent Air | Y |
| Smart Air | N |
| Compressor Type | Piston |
| Motor Type | TEFC |
| Tank Orientation | Vertical |
| Outlet Size | 3/4" |
| Belt Count | 2 |
| Pump Stage | 2 |
| Pump Model | APP4V1043TP |
| Pump Riser | Y |
| Belt Tensioner | Y |
| Mag Starter | Y |
| Radiator | Y |
| Pump RPM | 590.00 |
| Motor RPM | 1740.00 |
| FLA + 1.15 Service Factor | 10.30 |
| Locked Rotor Amps | 66.20 |
| Recommended Breaker | 20.00 |
| Max PSI | 175.00 |
| Uncrated Length | 39 |
| Uncrated Width | 25 |
| Uncrated Height | 75 |
| Crated Length | 48" |
| Crated Width | 46" |
| Crated Height | 87" |
| Oil Capacity | 2.00 |
| Oil U/M | Quarts |
| Start Type | FIXED |
| Estimated Pump Life (Hours) | 70000.00 |
| Certifications | ETL,ASME,CRN |
| Service Kit | EFKIT008AWBS |
| Battery Included | N/A |
