NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

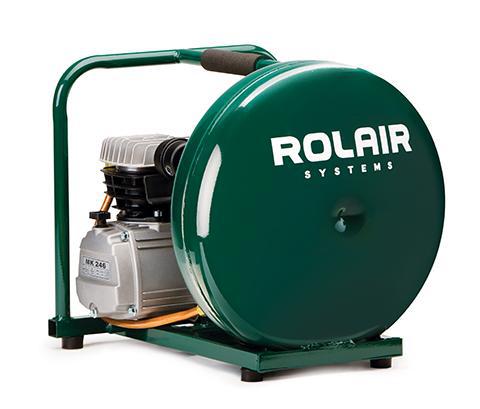

The D2002HPV5 is outfitted with trusted components like the “Square D” pressure switch and metal intake manual overload protection for longer life and ball bearings for greater durability.
NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE
ABOUT THE PUMP
ROLAIR Quality, Heavy Duty, Single Stage, Ball Bearings, Cast-Iron Cylinder, Metal Filter/Silencer with Replaceable Filter Element, Stainless-Steel Reed Valves and Splash Lubrication Ensure Longer Life.
ABOUT THE MOTOR
2 HP, 3400 RPM, S-1 Rated for Continuous Duty, Low Amp Draw, Overload Protection with Manual Reset, 115 Volt, 60 Hz, Heavy-Duty/Industrial-Grade with Ball Bearings for Greater Durability.
STANDARD EQUIPMENT
- 100% Duty-Cycle Motor
- Square D Pressure Switch with On/Off Lever
- Regulator with Air Line Pressure Gauge
- Universal Quick Disconnect with Plug
- 12 oz. Crankcase Pre-filled with Oil
- 110/135 PSI Operating Pressure
- Factory Tested
- Safety Relief Valve
| HORSE POWER | 2 HP |
| CFM DISPLACED | 8.7 CFM |
| CFM DELIVERED | 4.1 CFM @ 90 PSI |
| PUMP/MOTOR RPM | 3400 RPM |
| OVERLOAD PROTECTION | Yes (Manual Reset Standard) |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 12 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 1 |
| TANK CAPACITY | 4.5 Gallons |
| L X W X H | 18"x16"x17" |
| DECIBEL RATING | 80 dBA |
