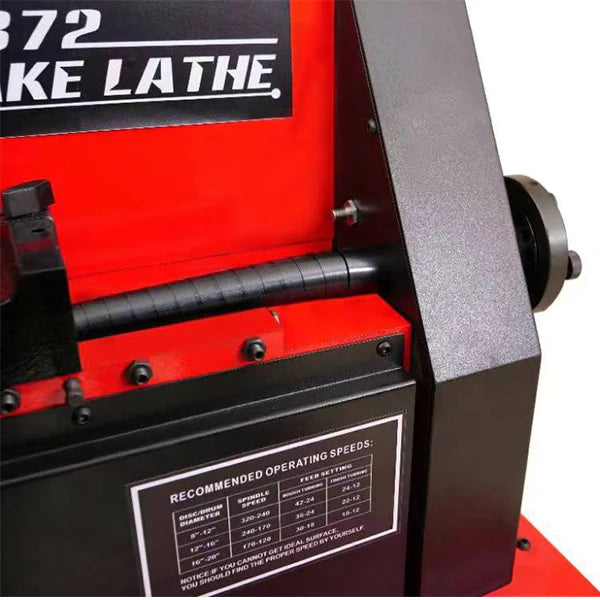

Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum
Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum

Katool KT-C9372 Brake Lathes Heavy-Duty Combination Disc/Drum

Regular price
$5,859.00
Sale price
$5,859.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

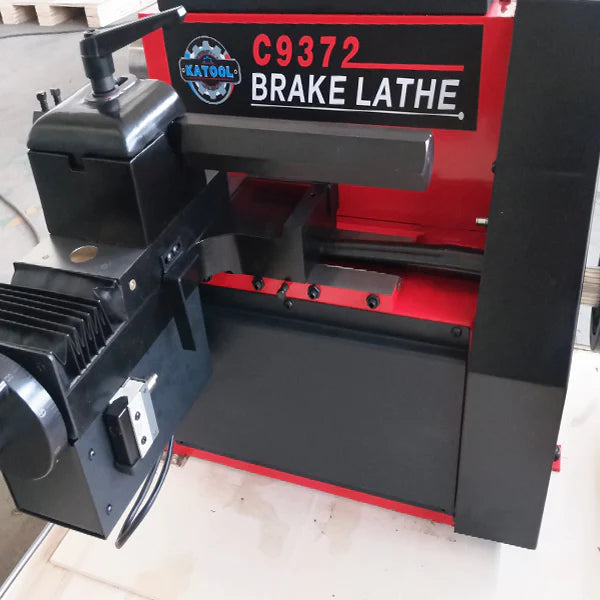

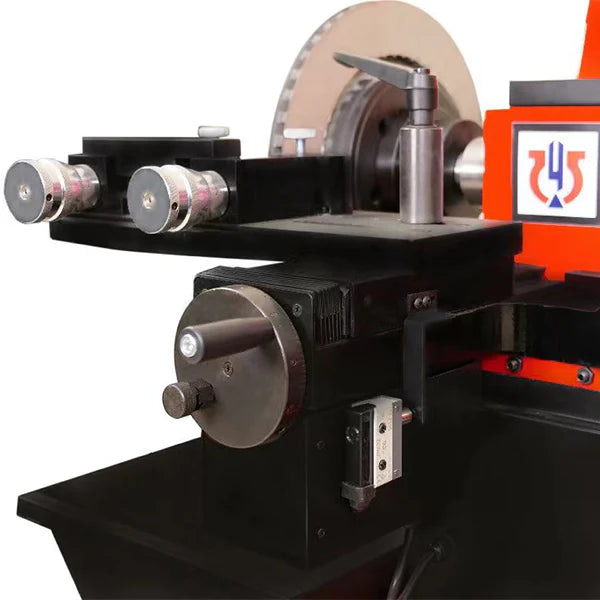

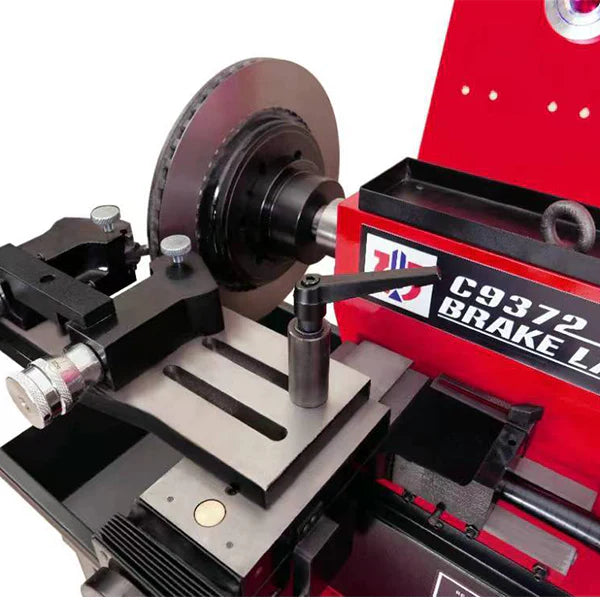

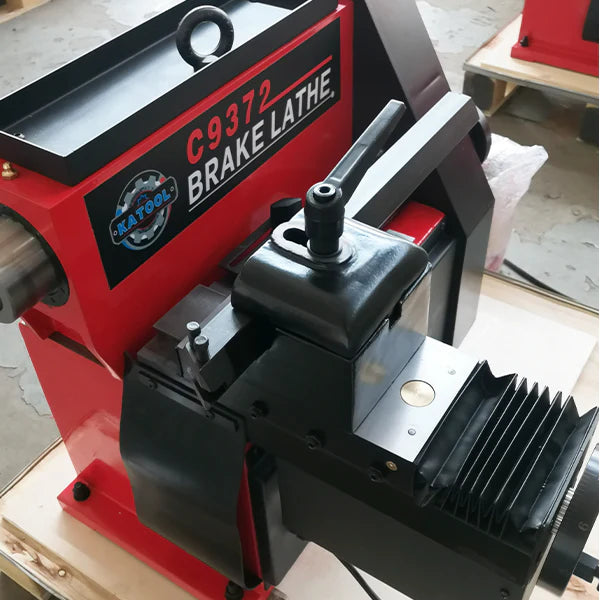

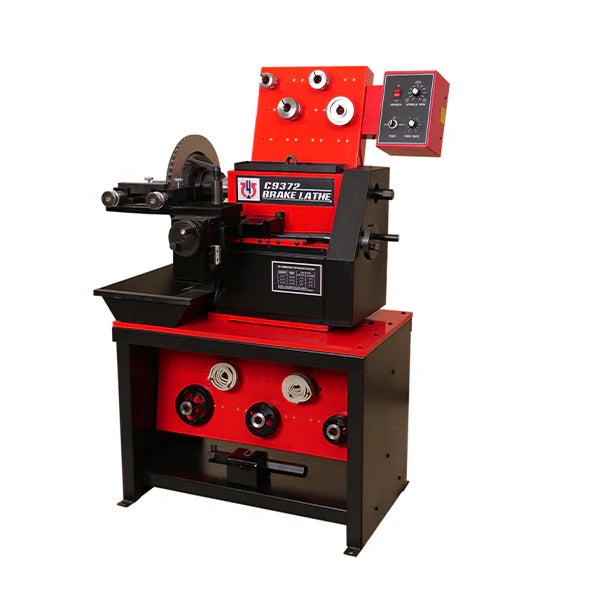

The Katool Automotive Equipment KT-C9372 Brake Lathe is a professional combination disc and drum brake lathe built for precision resurfacing in automotive service shops, brake repair facilities, and commercial garages. Designed to handle rotors, drums, and flywheels, this machine helps technicians restore braking surfaces efficiently while improving service quality and extending component life. Katool’s product listing identifies the C9372 as a 110V/220V combination disc/drum brake lathe with full accessories, built for professional shop use.

With a wide operating range and adjustable spindle speed, the KT-C9372 is suited for a variety of brake service applications. Public listings show support for 4"–20" rotor diameters, 6"–19.5" drum diameters, and 6"–24" flywheel diameters, making it a versatile option for shops that need one machine for multiple resurfacing tasks.

Built for durability and productivity, the C9372 features a 70–320 RPM spindle speed, a 150 lb spindle capacity, and feed control for both rotor and drum machining. It is also listed with 110V/220V, 50/60Hz motor compatibility and a shipping weight of about 661 lbs, reflecting its heavy-duty shop-grade construction.

Key Features

  • Combination disc and drum brake lathe

  • Designed for resurfacing rotors, drums, and flywheels

  • Wide machining range for versatile brake service applications

  • Adjustable spindle speed for controlled cutting performance

  • Heavy-duty construction for professional shop environments

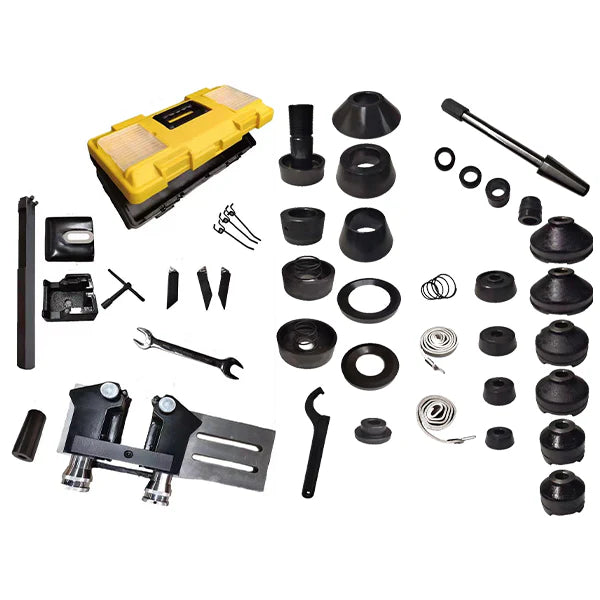

  • Includes full accessories per Katool product listing

  • Dual-voltage 110V / 220V compatibility listed on public product pages.

Specification Details
Model KT-C9372
Brand Katool Automotive Equipment
Product Type Combination Disc / Drum Brake Lathe
Rotor Diameter 4"–20" (102–508 mm)
Maximum Rotor Thickness 2.85" (73 mm)
Drum Diameter 6"–19.5" (152–500 mm)
Drum Depth 6.5" (165 mm)
Flywheel Diameter 6"–24" (152–610 mm)
Spindle Capacity 150 lbs (68 kg)
Spindle Speed 70–320 RPM
Feed Rate (Rotor/Drum) 0"–0.026" (0–0.66 mm)
Feed Rate Per Minute 2.54" (64.5 mm)
Motor 110V / 220V, 50/60Hz
Dimensions 43.3" × 28.7" × 28.3" (1100 × 730 × 720 mm)
Shipping Weight 661.3 lbs (300 kg)
