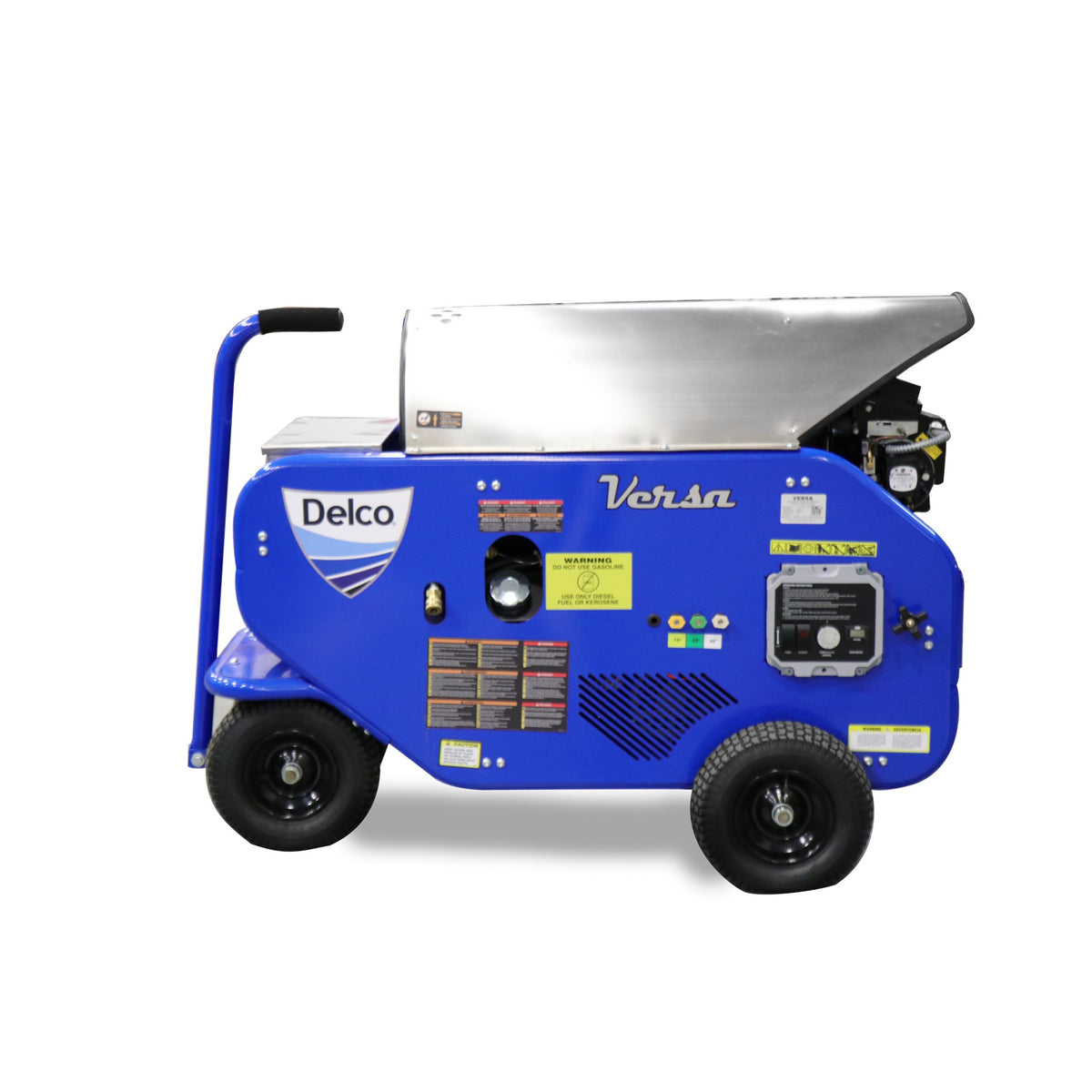

The Delco Versa DV3040041CAC2 (part 65378) is a horizontal coil electric hot water pressure washer. It delivers 3000 PSI at 4.0 GPM for 12,000 cleaning units. A 7.5HP, 230V, 3-phase motor (19A) belt-drives a UDOR® industrial triplex pump. The oil-fired burner runs on No. 1/No. 2 diesel or kerosene. This model has a powder-coated frame and panels. It suits shops and facilities with 3-phase power that need dependable high-pressure hot water cleaning.
Motor & Burner
- 7.5HP / 230V / 3-phase / 19A electric motor
- 1750 RPM slow speed with belt drive
- Horizontal heat exchanger with stainless steel housing
- 120V or 230V burner fueled by No. 1/No. 2 diesel or kerosene
- Large-capacity 6.7 gal. diesel fuel tank
- NEMA 4X electrical enclosure with burner on/off rocker switch, hour meter and time delay shut-off
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated frame and panels for corrosion resistance
- 13" premium pneumatic wheels
- Weight: 610 lbs.
- Dimensions: L 35" x W 30" x H 43"
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25° and 40°
- Upstream low-pressure soap injector
Warranty & Options
- 10-Year Frame, 5-Year Pump, 1-Year Motor
- Optional accessory: Auto Start/Stop Shut Off (part 7110785)
Questions about the Delco Versa DV3040041CAC2 or need help choosing the right hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DV3040041CAC2 |
| Part Number | 65378 |
| Pressure | 3000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 12,000 |
| Motor | 7.5HP / 230V / 3-phase / 19A |
| Motor Speed | 1750 RPM |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Water | Hot |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Burner Voltage | 120V or 230V |
| Fuel Tank | 6.7 gal |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 610 lbs |
| Dimensions | L 35" x W 30" x H 43" |
