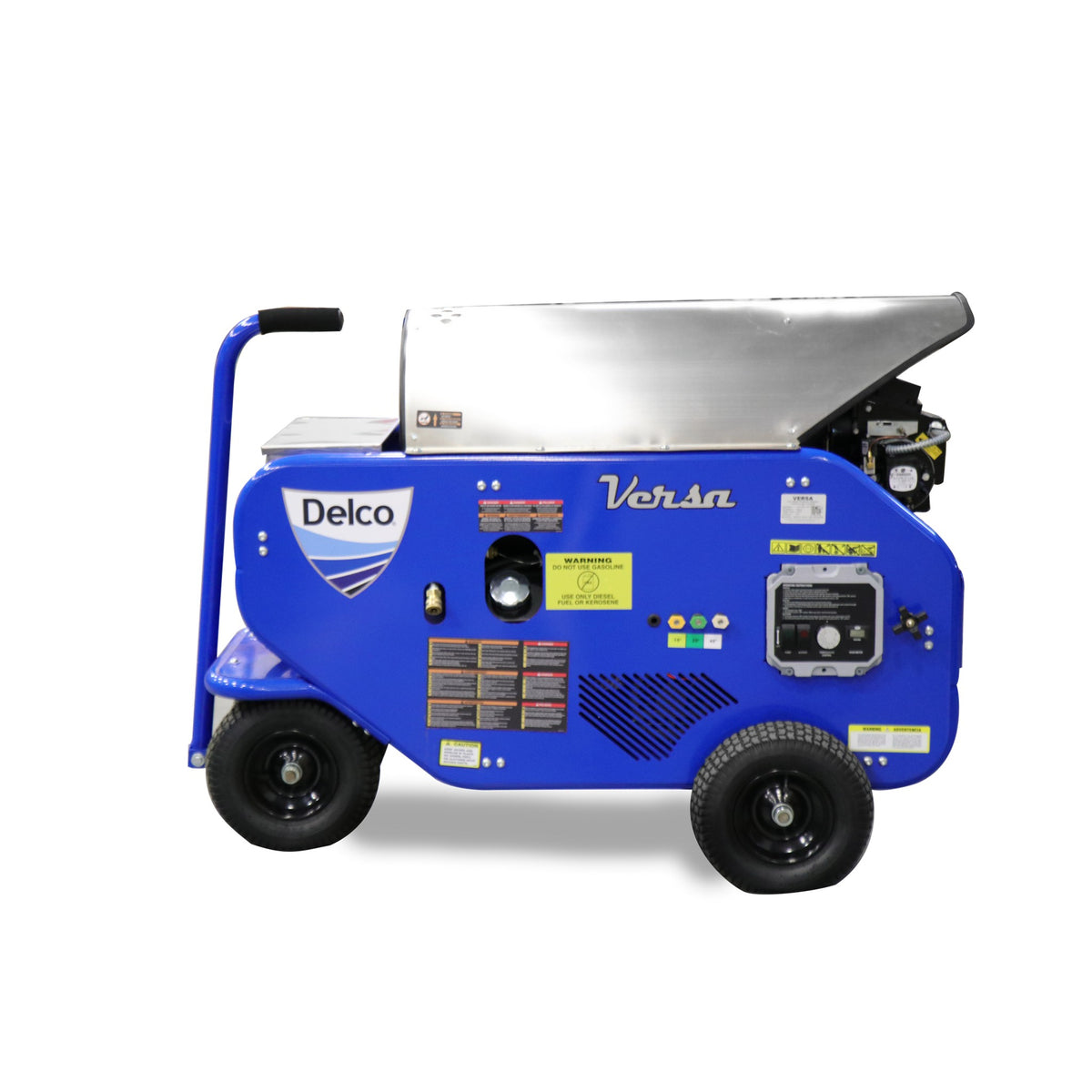

The Delco Versa DV3040041BAC2 (part 65377) is a hot water electric pressure washer with a horizontal heat exchanger. It delivers 3000 PSI at 4.0 GPM and 12,000 cleaning units from a 7.5HP, 230V single-phase motor (31A) driving a belt-driven UDOR® industrial triplex pump. The oil-fired burner runs on No. 1/No. 2 diesel or kerosene. This 65377 model has a powder-coated frame and panels. It suits operators who need heated-water cleaning from a 230V electric supply across a wide range of cleaning jobs.
Motor, Burner & Controls
- 7.5HP / 230V / 1-phase / 31A electric motor
- 1750 RPM slow speed
- Belt drive
- Horizontal heat exchanger with stainless steel housing
- 120V or 230V burner that runs on No. 1/No. 2 diesel or kerosene
- Large-capacity 6.7 gal. diesel fuel tank
- NEMA 4X electrical enclosure with burner on/off rocker switch, hour meter and time delay shut-off
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame & Construction
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated frame and panels for corrosion resistance
- 13" premium pneumatic tires
- Weight: 610 lbs.
- Dimensions: L 35" x W 30" x H 43"
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25° and 40°
- Upstream low-pressure soap injector
- Optional accessory: Auto Start/Stop Shut Off (part 7110785)
Warranty
- 10-year frame
- 5-year pump
- 1-year motor
Have questions about the Delco Versa DV3040041BAC2, electrical requirements or the optional auto start/stop kit? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DV3040041BAC2 |
| Part Number | 65377 |
| Series | Versa |
| Pressure | 3000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 12,000 |
| Motor | 7.5HP / 230V / 1-phase / 31A |
| Motor Speed | 1750 RPM |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Burner Voltage | 120V or 230V |
| Fuel Tank | 6.7 gal |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 610 lbs |
| Dimensions | L 35" x W 30" x H 43" |
