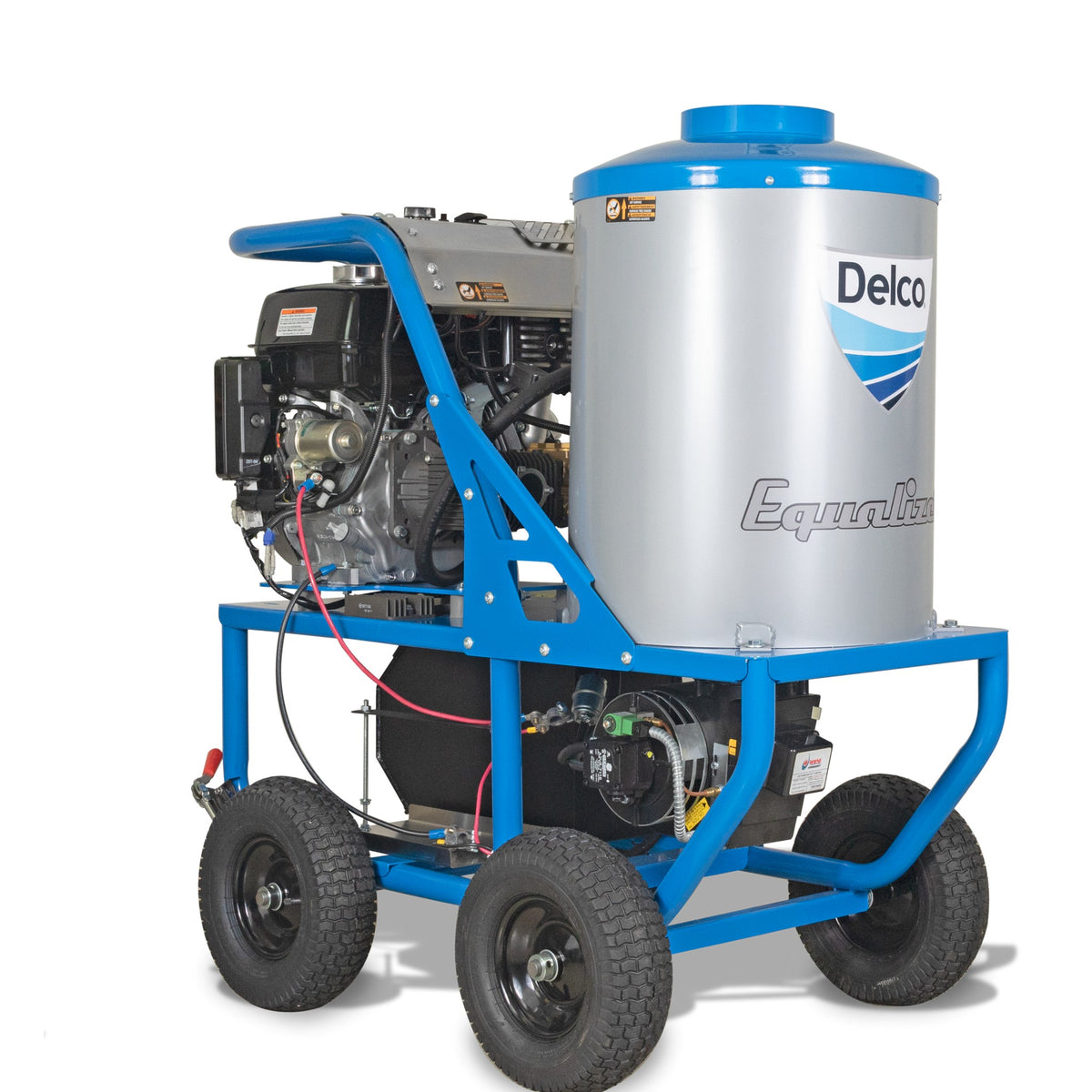

The Delco Equalizer DEZ3040252EDC11 (FNA part 65069) is a gas engine-driven, hot water pressure washer. It delivers 3000 PSI at 4.0 GPM for 12,000 cleaning units. A HONDA® GX390 389cc engine with recoil / key-start powers a General Pump® industrial triplex in a direct-drive layout. The oil-fired burner heats water through a vertical coil. It runs on No. 1/No. 2 diesel or kerosene. The Equalizer series is built for a wide range of cleaning applications. Its broad four-wheel stance adds mobility and versatility for operators who need portable hot water cleaning. Not for sale in California.
Hot Water Burner System
- 1/2" schedule 80 vertical coil
- Oil-fired burner runs on No. 1/No. 2 diesel or kerosene
- External 4.4 gal. diesel fuel tank
- 120V burner system with 35' GFCI electrical cord
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
Engine & Pump
- HONDA® GX390 389cc engine, recoil / key-start, 1.6 gal. engine fuel tank
- Low oil shutdown
- General Pump® industrial triplex, direct drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve and external unloader with bypass hose
Frame & Mobility
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated for corrosion resistance
- 13" premium heavy-duty tires for easy mobility and vibration dampening
- Broad four-wheel stance
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25° and 40°
- Optional accessory: Chemical Injector Kit (part 7112623)
Warranty
- 10-Year Frame, 5-Year Pump, 3-Year Engine
Have questions about the Delco Equalizer or need help choosing the right hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DEZ3040252EDC11 |
| Part Number | 65069 |
| Pressure | 3000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 12,000 |
| Engine | HONDA GX390 (Recoil / Key-start) |
| Displacement | 389cc |
| Engine Fuel Tank | 1.6 gal |
| Pump | General Pump industrial triplex |
| Drive | Direct |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Diesel Tank | 4.4 gal (external) |
| Burner Voltage | 120V |
| Hose | 3/8" x 50' steel-braided Armor Hose |
| Weight | 515 lbs |
| Dimensions | L 35" x W 30" x H 43" |
