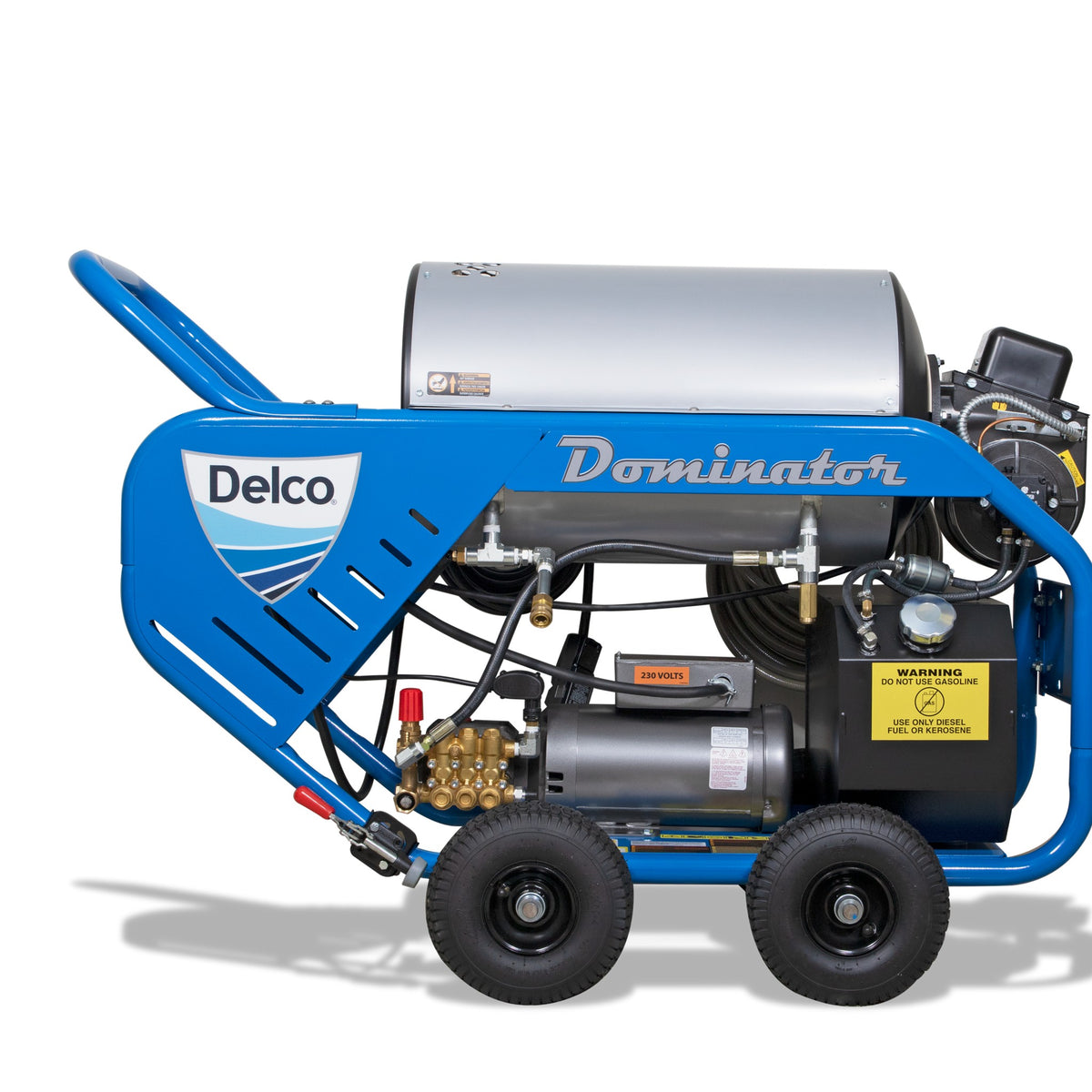

The Delco Dominator DDM2040042BAC2 (FNA part 65384) is a horizontal coil electric hot water pressure washer. It delivers 2000 PSI at 4.0 GPM for 8,000 cleaning units. It runs on a 5HP, 230V, 1-phase, 23A motor that direct-drives a UDOR® industrial triplex pump, and its oil-fired burner heats the water. The Dominator Series is built to be compact and easy to use, with quality components and downstream chemical injection. It suits users with 230V single-phase power who need hot water cleaning.
Power & Burner
- 5HP / 230V / 1-phase / 23A electric motor
- NEMA 4X electrical enclosure with rocker switch and hour meter
- 35' GFCI electrical cord
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 6.7 gal diesel fuel tank
UDOR® Industrial Triplex Pump
- Direct drive at 1750 RPM slow speed
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame & Mobility
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated for corrosion resistance
- Wheel brake system
- 410 lbs; L 55" x W 31" x H 40"
Hose & Included Accessories
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25°, 40°, and soap
- Downstream injector for chemical application
Warranty
- 10-Year Frame, 5-Year Pump, 1-Year Motor
Have questions about the Delco Dominator DDM2040042BAC2 or need help choosing the right hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DDM2040042BAC2 |
| Part Number | 65384 |
| Series | Dominator |
| Pressure | 2000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 8,000 |
| Motor | 5HP / 230V / 1-phase / 23A |
| Pump | UDOR® industrial triplex, 1750 RPM |
| Drive | Direct |
| Water | Hot |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Fuel Tank | 6.7 gal |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 410 lbs |
| Dimensions | L 55" x W 31" x H 40" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
