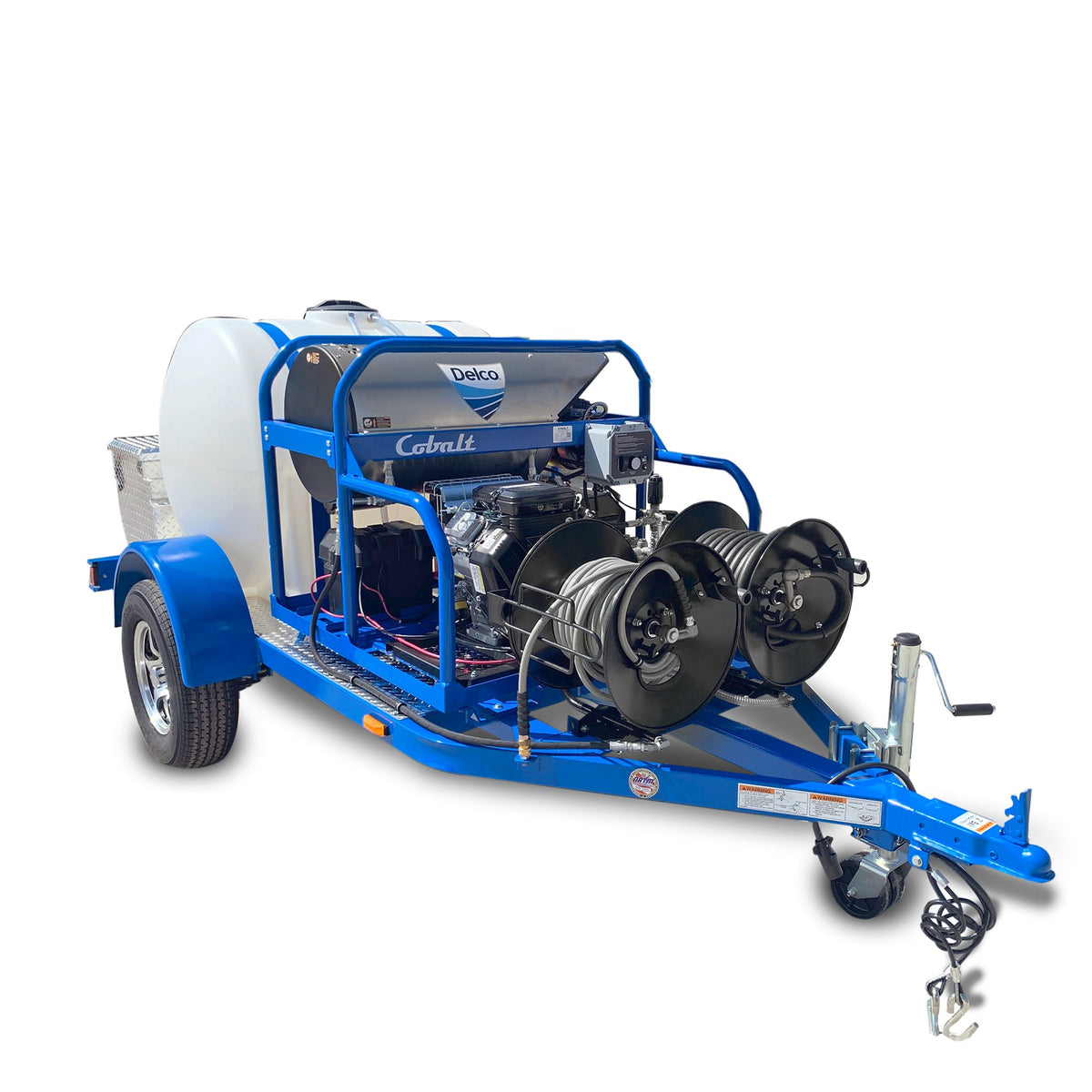

The Delco® Mobile Trailer DTRS23555251EDC11 (FNA part 95161) is a self-contained hot-water pressure washer trailer. It delivers 3500 PSI at 5.5 GPM (19,250 cleaning units) and is powered by a Honda® GX690 688cc gas engine (recoil / key-start) driving a belt-driven General Pump® industrial triplex pump. The oil-fired 12VDC burner runs on No. 1/No. 2 diesel or kerosene. An onboard 225-gallon water tank means it can clean in locations where water supply is scarce, so it suits contractors and fleet operators working job sites with limited water access. This Stage 2 trailer is not for sale in California.
Power & Pump
- Honda® GX690 688cc gas engine with recoil / key-start
- Low-oil shutdown
- General Pump® industrial triplex pump, belt drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose to tank
Hot Water System
- Oil-fired 12VDC burner
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 3500 PSI @ 5.5 GPM for 19,250 cleaning units
Hose, Reels & Included Accessories
- (1) 200' high-pressure hose reel with 3/8" x 100' steel-braided Armor Hose®
- (1) 200' supply hose reel with 5/8" x 90' supply hose
- Includes trigger gun, lance and downstream injector
- Quick-connect nozzles: 15°, 25°, 40° and soap
Trailer & Water Tank
- 225-gallon translucent polyethylene water supply tank with easy-to-read water level indicators
- Single 3500 lb. axle with leaf-spring suspension for a smooth ride
- Electric brake system
- 6" powder-coated C-channel trailer frame with LED lighting
- 2" ball coupling and jack with swivel wheel for easy maneuvering
- ST205/75R14 tires
- Dimensions: L 156" (includes tongue) x W 68" x H 62"; weight 1500 lbs
Warranty
- 1-year trailer frame, 5-year pump, 3-year engine
Have questions about the Delco DTRS23555251EDC11 Mobile Trailer or need help choosing the right hot-water trailer for your operation? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DTRS23555251EDC11 |
| Part Number | 95161 |
| Pressure | 3500 PSI |
| Flow | 5.5 GPM |
| Cleaning Units | 19,250 |
| Engine | Honda GX690 688cc (Recoil / Key-start) |
| Pump | General Pump industrial triplex, 1750 RPM |
| Drive | Belt |
| Burner | 12VDC, oil-fired |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Water Tank | 225 gal |
| Axle | (1) 3500 lbs with leaf-spring suspension |
| Tires | ST205/75R14 |
| Hitch | 2" ball coupling |
| Weight | 1500 lbs |
| Dimensions | L 156" (includes tongue) x W 68" x H 62" |
