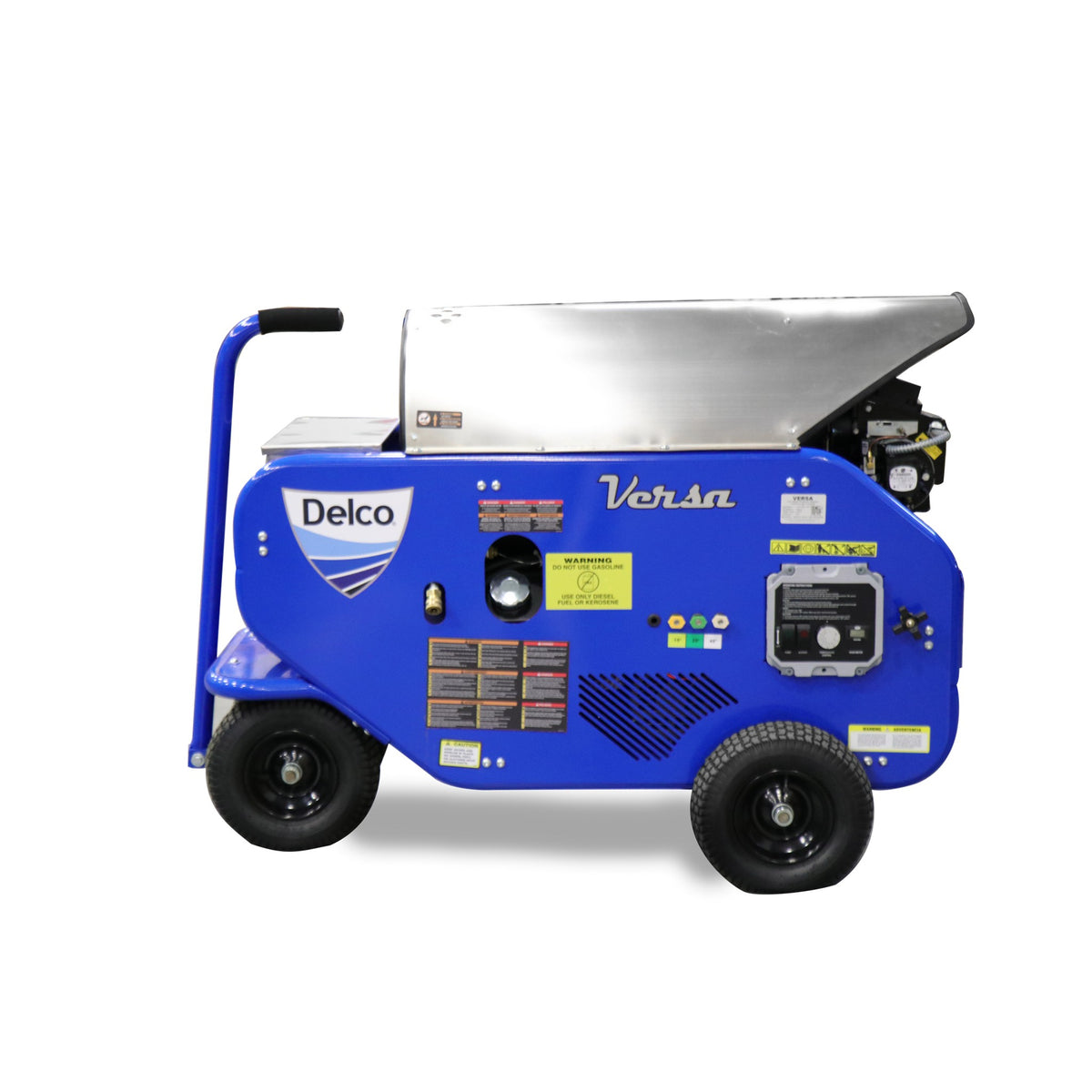

The Delco Versa DVSTSS2.525041AAC1 (FNA part 65382) is a stainless steel Super Steamer. This horizontal coil electric hot water cleaning system delivers 250 PSI at 2.5 GPM (625 cleaning units). It is powered by a 0.75HP, 120V, single-phase, 8.4A motor that belt-drives a UDOR® industrial triplex pump. An oil-fired burner heats the water and runs on No. 1/No. 2 diesel or kerosene from a 6.7 gal. fuel tank. The stainless steel frame and panels suit users who want a dependable, low-pressure hot water steamer for a wide range of cleaning needs.
Burner & Electrical
- Horizontal heat exchanger with stainless steel housing
- 120V or 230V burner
- Burner fuels: No. 1/No. 2 diesel or kerosene
- Large capacity 6.7 gal. diesel fuel tank
- NEMA 4X electrical enclosure with burner on/off rocker switch, hour meter and time delay shut-off
- 1750 RPM slow-speed operation
UDOR® Industrial Triplex Pump
- Belt drive
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame
- Heavy-duty 1-1/2" round tubular steel design
- Stainless steel frame and panels
- 13" premium pneumatic wheels
- Dimensions: L 35" x W 30" x H 43"
- Weight: 610 lbs.
Hose & Included Accessories
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25° and 40°
- Upstream low-pressure soap injector
- Optional accessory: Auto Start/Stop Shut Off (part 7110785)
Warranty
- 10-Year Frame, 5-Year Pump, 1-Year Motor
Have questions about the Delco Versa Super Steamer or need help choosing the right hot water unit? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DVSTSS2.525041AAC1 |
| Part Number | 65382 |
| Pressure | 250 PSI |
| Flow | 2.5 GPM |
| Cleaning Units | 625 |
| Motor | 0.75HP / 120V / 1-phase / 8.4A |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Burner Fuel | No. 1/No. 2 diesel or kerosene (oil-fired) |
| Burner Voltage | 120V or 230V |
| Fuel Tank | 6.7 gal |
| Frame | Stainless steel frame and panels |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 610 lbs |
| Dimensions | L 35" x W 30" x H 43" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
