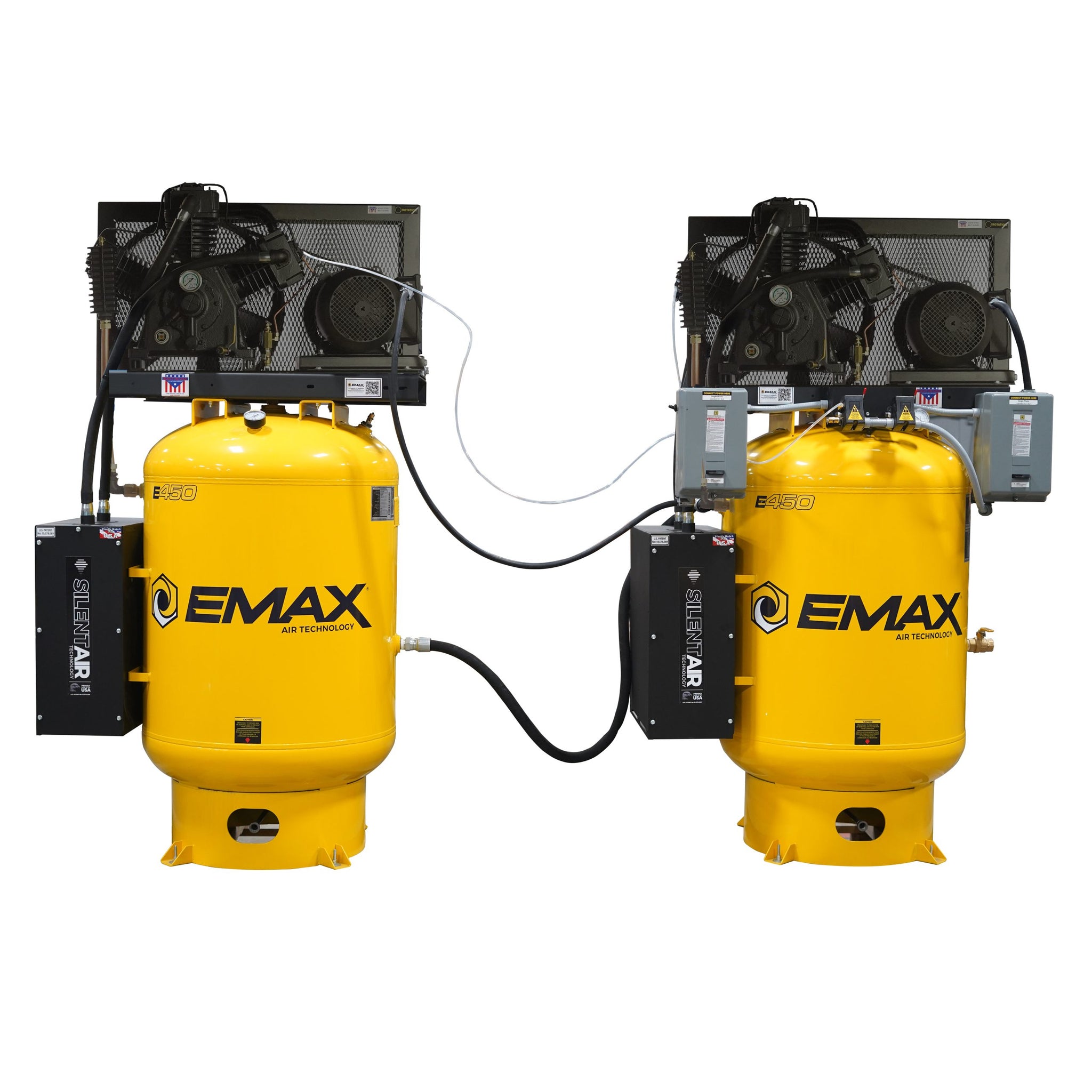

The EMAX ESPR15A120Y3-460 is a pair of SOLO Alternating Silent Air™ compressors built around a 15 HP V4 two-stage piston pump, rated at 114 CFM, and mounted on a 120-gallon vertical tank. It runs on 460V three-phase electric power and includes radiator aftercoolers, a magnetic starter, and an automatic tank drain. It suits facilities with 460V three-phase service that want an alternating two-compressor setup in a vertical footprint.
Pump & Performance
Horsepower: 15 HP electric drive.
Air Delivery: Rated at 114 CFM.
Pump Design: Two-stage V4 piston pump, model APP3Y2062TP.
Pump Riser: Includes a pump riser.
Alternating Silent Air™ Configuration
Two SOLO Compressors: Supplied as two SOLO compressors in an alternating arrangement.
Silent Air™ Series: Part of EMAX's Silent Air™ line. This model is not a Smart Air unit.

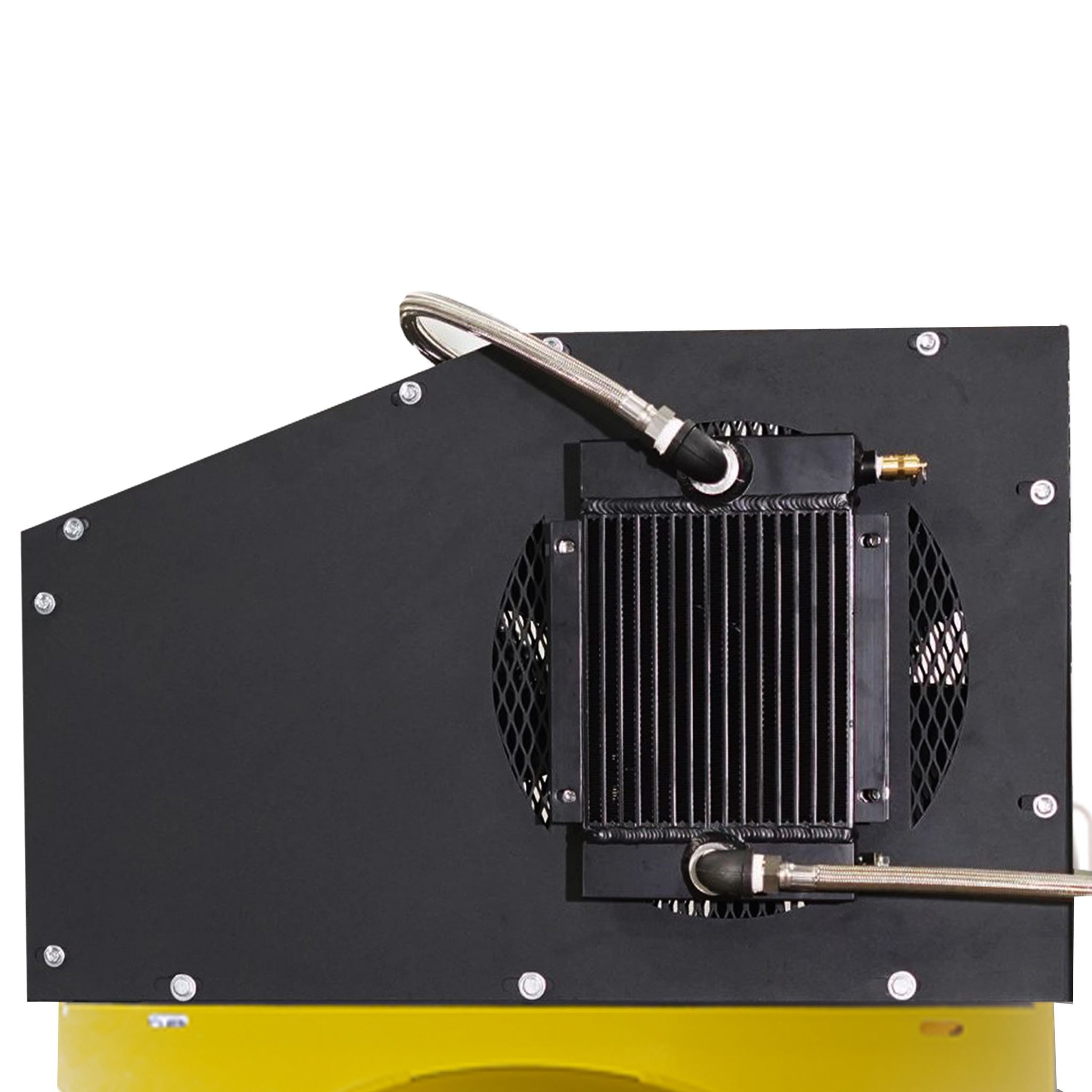

Radiator Aftercoolers: Equipped with radiator aftercoolers.
Motor & Electrical
Power Supply: 460V (+/- 10%), three-phase.
Motor Type: TEFC (totally enclosed, fan-cooled) motor.
Magnetic Starter: Comes with a magnetic starter.
Drive System
Belt Drive: Four-belt drive.
Belt Tensioner: Includes a belt tensioner.
Tank & Connections
Tank: 120-gallon vertical tank.
Automatic Drain: Fitted with an automatic tank drain.
Outlet Size: 1" air outlet.
Need help confirming that this alternating 15 HP, 460V three-phase system fits your air demand and electrical service? Call Pittsburgh Spray Equipment at 888-714-1410 for sizing help.
Specifications — ESPR15A120Y3-460
| HP | 15 |
| Tank Size | 120 |
| Voltage +/- 10% | 460 |
| Phase | 3 |
| Drive Type | Electric |
| Tank Drain | Automatic |
| Pump Type | Pressure |
| CFM | 114.00 |
| Silent Air | Y |
| Smart Air | N |
| Compressor Type | Piston |
| Motor Type | TEFC |
| Tank Orientation | Vertical |
| Outlet Size | 1" |
| Belt Count | 4 |
| Pump Stage | 2 |
| Pump Model | APP3Y2062TP |
| Pump Riser | Y |
| Belt Tensioner | Y |
| Mag Starter | Y |
| Radiator | Y |
