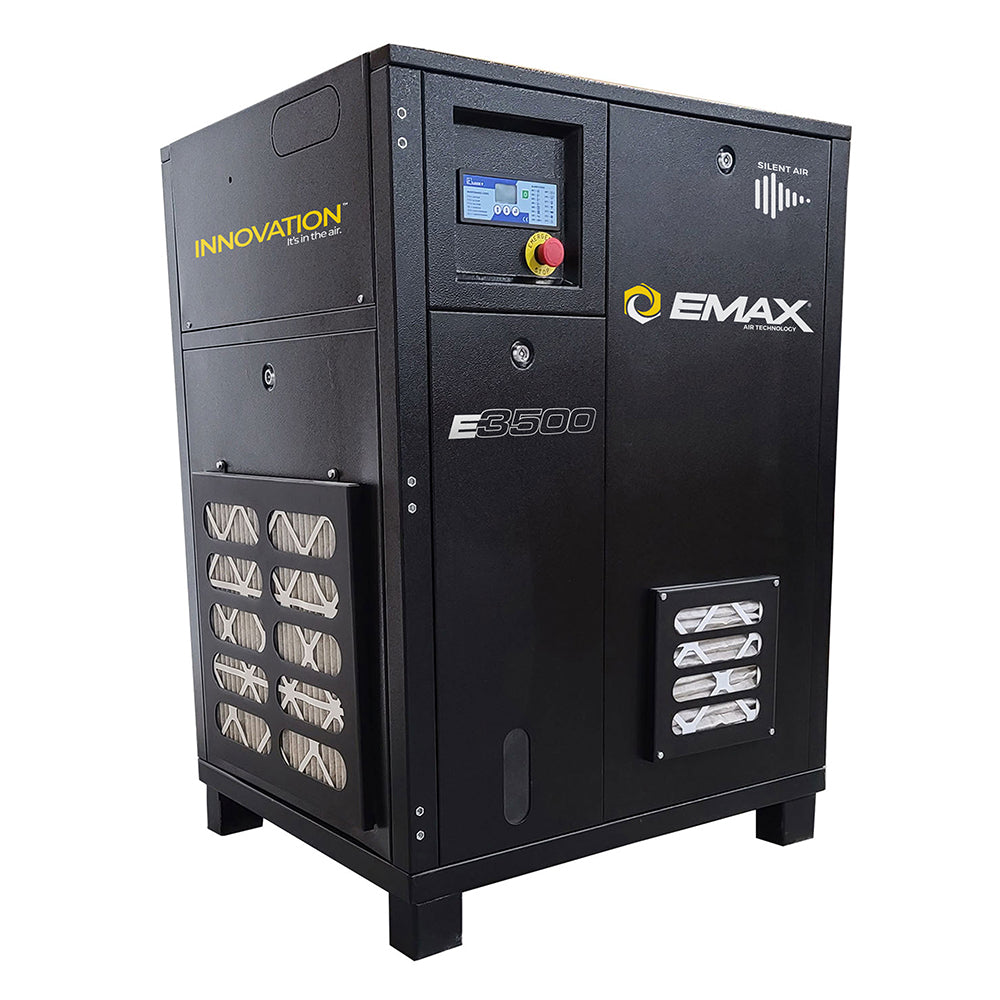

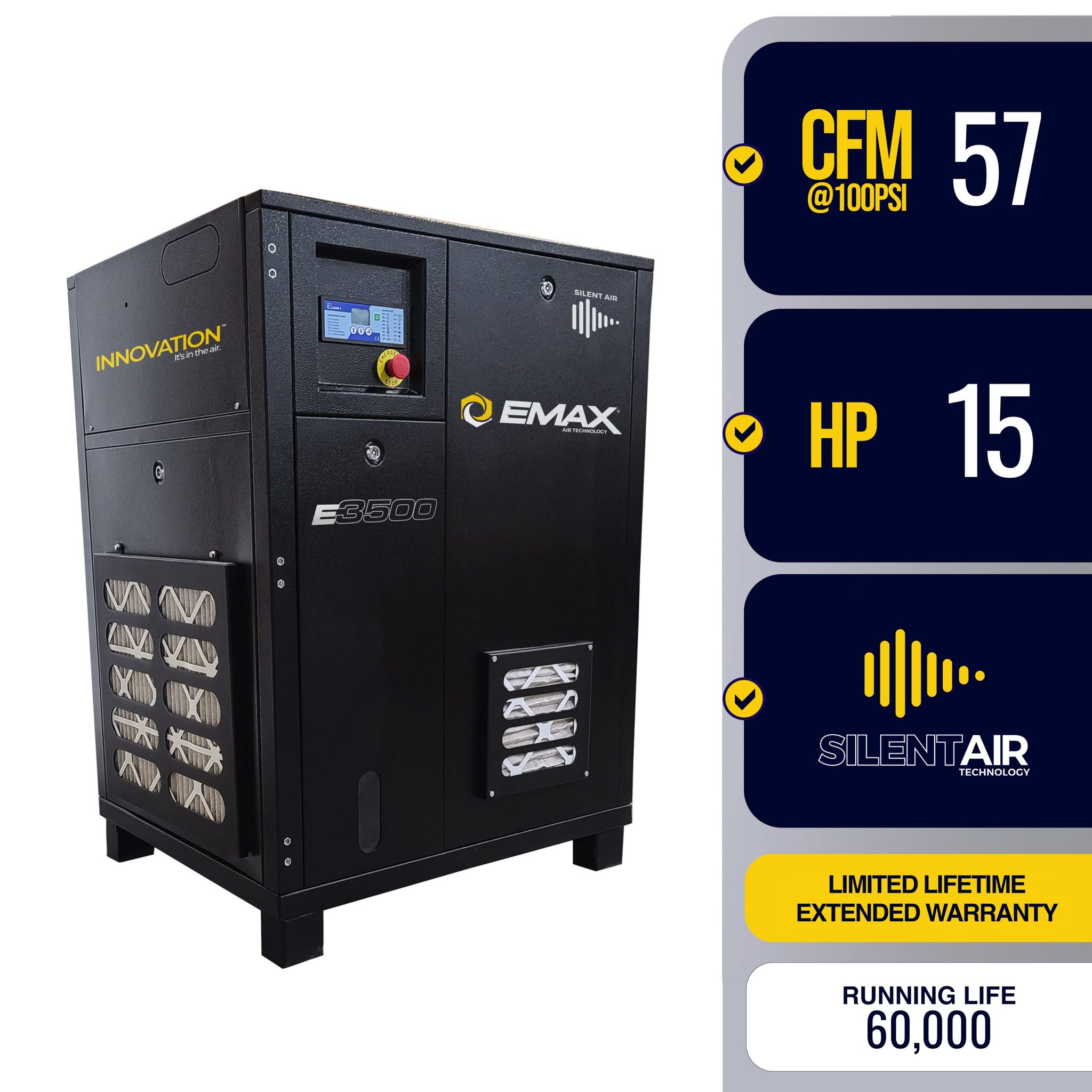

The EMAX ERI0150003-208 is a 15 HP fixed speed industrial rotary screw air compressor, supplied as a cabinet-only unit with no tank. It delivers 56 CFM at up to 145 PSI on 208V three-phase power. It suits industrial plants and operations that need consistent, continuous airflow.
Rotary Screw Air End
Oil-Injected Design: The air end uses an oil-injected male and female rotor pair to compress air. It is engineered for up to 100% duty cycle and runs relatively quietly.
Continuous Airflow: The rotary screw design produces continuous, steady airflow for applications where consistent air is a must.
Single-Stage Pump: The 1-stage rotary air end is rated for a maximum of 145 PSI.
Estimated Pump Life: The pump is rated for an estimated 60,000 hours.
Reliability and Durability: Screw air ends are known for reliability in harsh conditions. Mining rigs, construction rigs, and firefighting equipment manufacturers choose them for that reason.
Fixed Speed Operation
Constant RPM: This fixed speed compressor runs at a constant speed during run cycles and does not vary its RPM.
TEFC Motor: The 15 HP totally enclosed fan-cooled electric motor runs at 1,750 RPM.
Multi-Belt V-Belt Drive
B and C-Width Belts: The drive uses a two-belt system with B and C-width belts rather than narrow, single A-width belts.
Better Grip: The wider belts provide more surface area for better grip.
Reduced Strain: Lower belt tension reduces strain on the motor and compressor bearings.
Longer Life: Lower noise and vibration help extend belt and system life. The result is a durable, efficient, low-maintenance drive built for thousands of hours of use.
Electrical Requirements
Power Supply: The unit is configured for 208V, three-phase power. The manufacturer rates its voltage tolerance at 230V +/- 10%.
Amperage: Full-load amps are 43.1 with a 1.15 service factor. Locked rotor and peak starting amps are 237.
Recommended Breaker: Use a 60 amp breaker.
Certifications: The unit is listed as UL/CSE certified.
Installation and Maintenance
Cabinet-Only Footprint: The cabinet measures 38" L x 31" W x 49" H uncrated. Crated weight is 806 lbs.
Oil Capacity: The compressor holds 1.5 gallons of oil.
Service Kit: Use service kit SKIT003WB for routine maintenance.
Not sure if a 15 HP rotary screw compressor is the right fit for your shop or plant? Call Pittsburgh Spray Equipment at 888-714-1410. We can help you size the right compressor for your air demand and electrical service.
Specifications — ERI0150003-208
| HP | 15 |
| Voltage +/- 10% | 230 |
| Phase | 3 |
| Drive Type | Electric |
| CFM | 56.00 |
| Silent Air | N |
| Smart Air | N |
| Compressor Type | ROTARY |
| Motor Type | TEFC |
| Belt Count | 2 |
| Pump Stage | 1 |
| Pump Riser | N |
| Belt Tensioner | N |
| Mag Starter | N |
| Radiator | N |
| Peak Starting Amps | 237.00 |
| Motor RPM | 1750.00 |
| FLA + 1.15 Service Factor | 43.10 |
| Locked Rotor Amps | 237.00 |
| Recommended Breaker | 60.00 |
| Max PSI | 145.00 |
| Uncrated Length | 38 |
| Uncrated Width | 31 |
| Uncrated Height | 49 |
| Crated Length | 43 |
| Crated Width | 48 |
| Crated Height | 56 |
| Oil Capacity | 1.50 |
| Oil U/M | Gallons |
| Estimated Pump Life (Hours) | 60000.00 |
| Certifications | UL/CSE |
| Service Kit | SKIT003WB |
