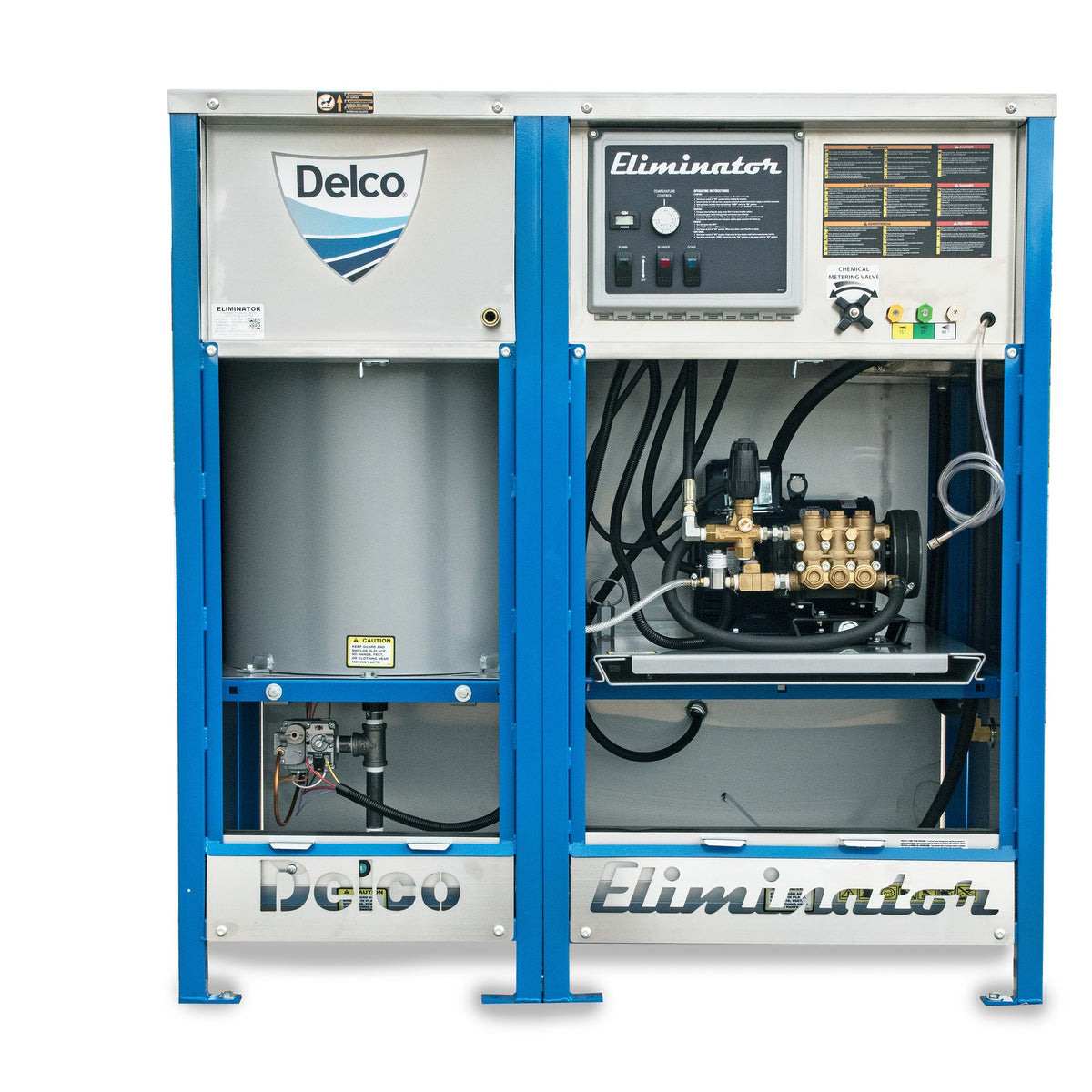

The Delco Eliminator XL ELM3080041DLP (FNA part 65286) is an industrial, stationary, enclosed-cabinet hot water pressure washer built to be easily serviced. It delivers 3000 PSI at 8.0 GPM (24,000 cleaning units) from a 15HP, 460V, 3-phase, 18A electric motor. The motor belt-drives a UDOR® industrial triplex pump. A 760,000 BTU liquid propane (LP) burner provides the hot water. A 24V operating system with time delay shut-off is standard. It suits facilities with 460V 3-phase power that need a fixed, wall-mounted hot water cleaning station.
Cabinet & Controls
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
- 24V operating system with time delay shut-down
- Remote box ready-wired
- Roll-down doors with lock
- High-pressure soap with metering valve
Pump & Drive
- UDOR® industrial triplex pump with forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
- Belt drive running at 1750 RPM slow speed
- Slide-out motor pump tray for service access
Heating System
- 760,000 BTU liquid propane (LP) burner
- 1/2" schedule 80 vertical coil
- Float tank
Frame & Installation
- Powder-coated frame for corrosion resistance
- Corrosion-resistant stainless steel vented panels
- Wall-mount design
- Movable water inlet/outlet point with 3 locations: front, side or back
- Dimensions: L 64" x W 36" x H 61"; weight 1660 lbs.
Included Equipment & Warranty
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Nozzles: 15°, 25° and 40°
- High-pressure soap injector
- Warranty: 10-year frame, 5-year pump, 1-year motor
Optional accessories include a Draft Diverter (7100283), an Auto Start/Stop Shut-Off (7110785) and a 24V Remote Box Kit (80654). Have questions about the Delco Eliminator XL ELM3080041DLP, installation requirements or accessories? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | ELM3080041DLP |
| Part Number | 65286 |
| Series | Eliminator XL |
| Pressure | 3000 PSI |
| Flow | 8.0 GPM |
| Cleaning Units | 24,000 |
| Motor | 15HP / 460V / 3-phase / 18A |
| Pump | UDOR® industrial triplex |
| Drive | Belt (1750 RPM) |
| Burner Output | 760,000 BTU |
| Burner Fuel | Liquid propane (LP) |
| Coil | 1/2" schedule 80 vertical |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 1660 lbs |
| Dimensions | L 64" x W 36" x H 61" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
