Delco Eliminator DNG3080031D 3000 PSI @ 8.0 GPM 15HP 460V 3-Phase Electric UDOR® Triplex Natural Gas Hot Water Pressure Washer

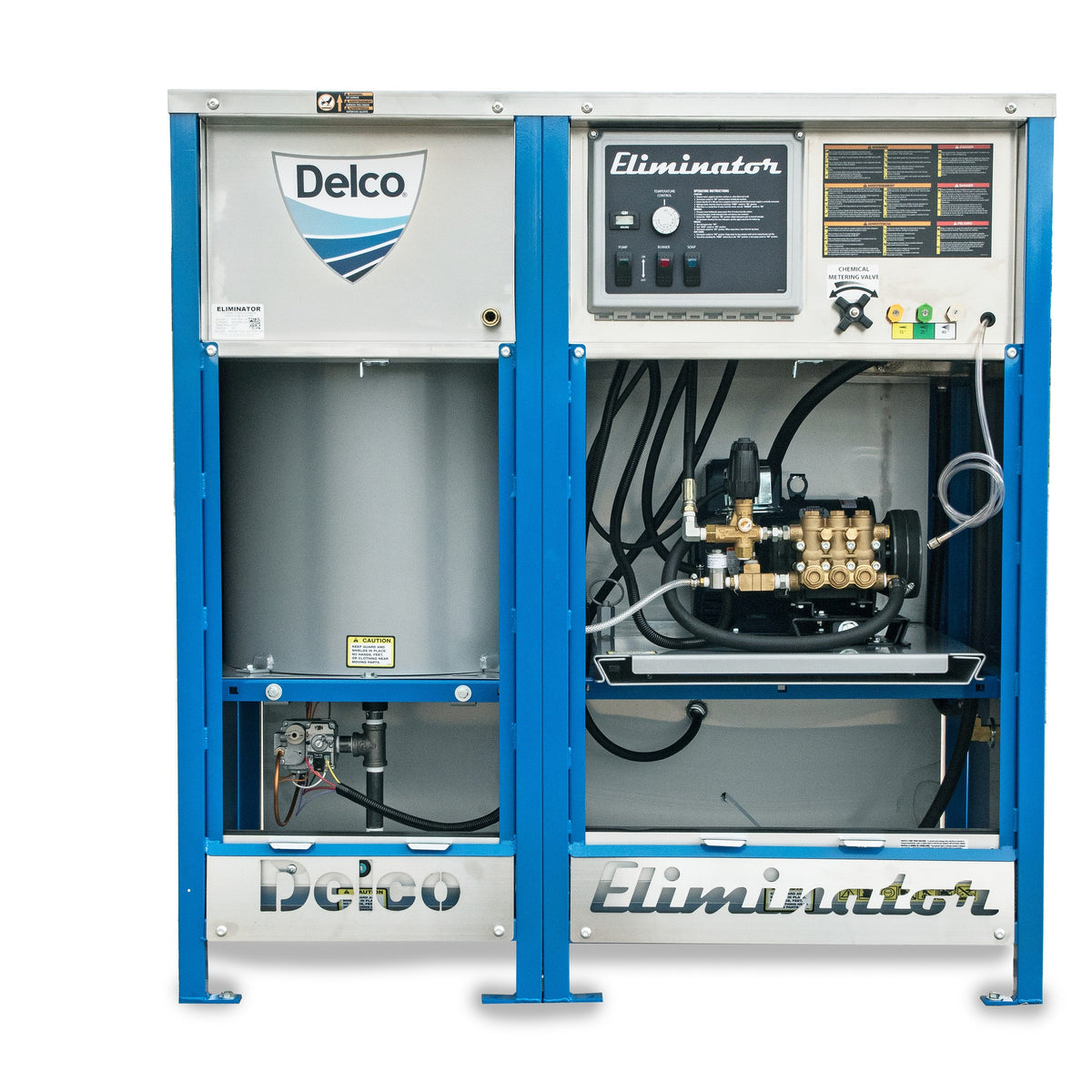

The Delco Eliminator DNG3080031D (part 65049) is a stationary, wall-mount hot water pressure washer rated at 3000 PSI and 8.0 GPM, for 24,000 cleaning units. A 15HP, 460V, 3-phase motor (17.5A) drives a UDOR® industrial triplex pump through a belt drive. A 380,000 BTU natural gas burner heats the water. The fully enclosed industrial cabinet is designed for easy servicing and has roll-down locking doors that help protect internal components from weather, debris and damage. It suits facilities, shops, industrial plants and commercial operations that need reliable, high-demand hot water cleaning.

Operation & Controls

• 24V operating system with time delay shut-down
• NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
• Remote box ready-wired
• High-pressure soap with metering valve
• 1750 RPM slow speed

Pump & Drive

• UDOR® Industrial Triplex Pump with belt drive
• Forged brass manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Slide-out motor pump tray

Burner, Cabinet & Frame

• 380,000 BTU natural gas burner
• 1/2" schedule 80 vertical coil
• Float tank
• Roll-down doors with lock
• Powder-coated frame for corrosion resistance
• Corrosion-resistant stainless steel vented panels
• Wall-mount design

Included Equipment

• 3/8" x 50' steel-braided Armor Hose®
• Trigger gun and lance
• Nozzles: 15°, 25° and 40°
• High-pressure soap injector

Warranty

• 10-Year Frame
• 5-Year Pump
• 1-Year Motor

Several optional accessories are available for this unit: a Draft Diverter (7100283), an Auto Start/Stop Shut-Off (7110785) and a Wired NEMA 4X Remote Operating Station (7110510). For questions about the Delco Eliminator DNG3080031D, call Pittsburgh Spray Equipment at 888-714-1410.

Specifications
