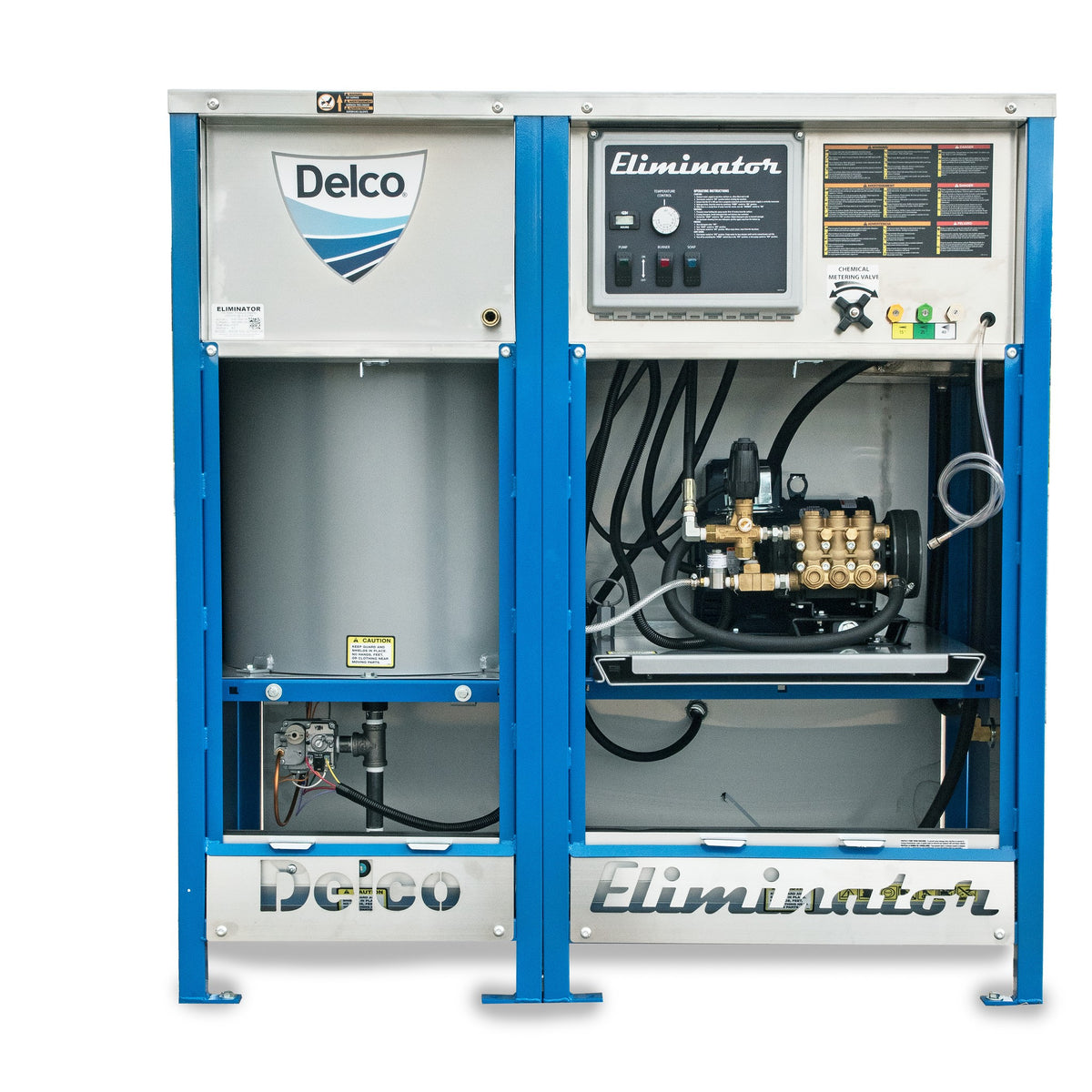

The Delco Eliminator DNG3080031C (part 65048) is an industrial, stationary, electric hot water pressure washer delivering 3000 PSI at 8 GPM (24,000 cleaning units). It is powered by a 15HP, 230V, 3-phase, 35A electric motor driving a belt-driven UDOR® industrial triplex pump. Hot water comes from a 380,000 BTU natural gas burner. The Eliminator's fully enclosed, roll-down locking cabinet is designed for easy servicing and protects internal components from weather, debris and damage. A 24V operating system with time delay shut-off is standard. It is built for facilities, shops, industrial plants and commercial operations where reliability, power and safety are essential.
Performance & Controls
- 1750 RPM slow-speed system
- 380,000 BTU natural gas burner with 1/2" schedule 80 vertical coil
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
- High-pressure soap with metering valve
- Time delay shut-down and remote box ready-wired
- Float tank
UDOR® Industrial Triplex Pump
- Belt drive
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Cabinet & Frame
- Roll-down doors with lock
- Slide-out motor pump tray for easy service
- Powder-coated frame for corrosion resistance
- Corrosion-resistant stainless steel vented panels
- Wall-mount design
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Nozzles: 15°, 25° and 40°
- High-pressure soap injector
Warranty & Optional Accessories
- Warranty: 10-Year Frame, 5-Year Pump, 1-Year Motor
- Optional Draft Diverter (7100283)
- Optional Auto Start/Stop Shut-Off (7110785)
- Optional Wired NEMA 4X Remote Operating Station (7110510)
Have questions about the Delco Eliminator DNG3080031C or need help choosing the right accessories for your facility? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DNG3080031C |
| Part Number | 65048 |
| Pressure | 3000 PSI |
| Flow | 8 GPM |
| Cleaning Units | 24,000 |
| Motor | 15HP / 230V / 3-phase / 35A |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Pump Speed | 1750 RPM |
| Burner Output | 380,000 BTU |
| Burner Fuel | Natural gas |
| Coil | 1/2" schedule 80 vertical coil |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 800 lbs |
| Dimensions | L 30" x W 50" x H 53" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
