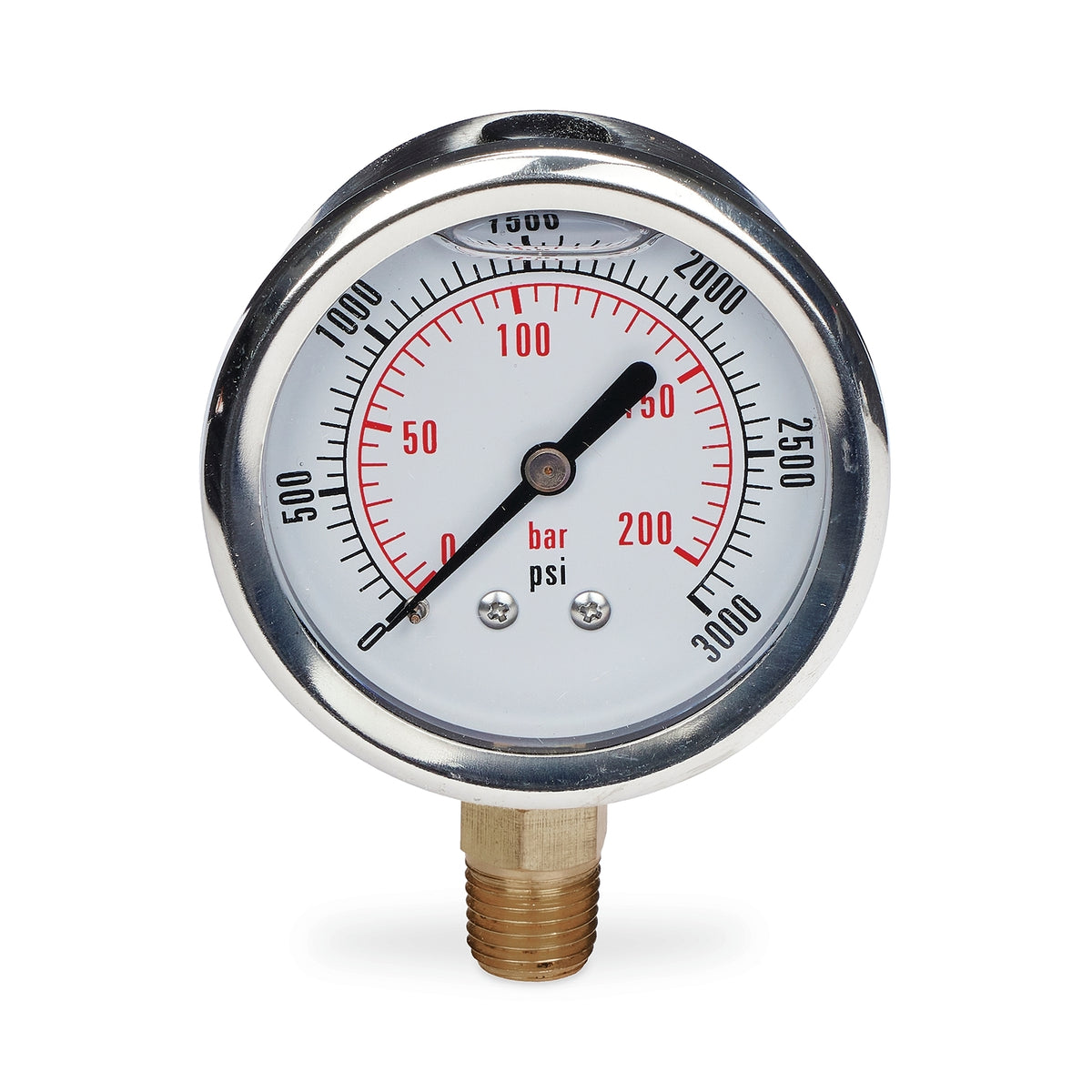

Graco 17L706 GAUGE,PRESSURE,FLUID,316 SST

Graco 17L706 GAUGE,PRESSURE,FLUID,316 SST

Regular price
$142.00
Sale price
$142.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

These gauges from Graco, Inc. are simple, dependable, economical and proven over a wide variety of applications to be accurate to ± 2% over the dial range.

They are recommended for use with grease, oil, air, water or any other medium that will not deteriorate brass.

  • 0-3000 psi Pressure Gauge, bottom-mounted

  • 2.5" Dial Diameter

  • Lubriquip part number 526-200-300
UPC Product: 00633955366718
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.45 IN   |  3.683 CM
Length: 3.65 IN   |  9.271 CM
Width: 2.95 IN   |  7.493 CM
Volume: .009 FT3   |  0 M3
Chargeable Weight: .46 LBS  | .21 KG

Technical Specifications

Dial Diameter (cm) 6
Dial Diameter (in) 2.5
Dial Diameter (mm) 64
For Use With LubeMaster Pumps
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Type NPT
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3000
Overall Height (cm) 3.25
Overall Height (in) 1.28
Overall Height (mm) 32.51
Overall Width (cm) 6.35
Overall Width (in) 2.5
Overall Width (mm) 63.5
Type Liquid-Filled
Maximum Working Pressure (MPa) 20.7
