MSP and MHH Divider Valves - Magnetic Visual Cycle Indicator, O-Ring Seal
MSP and MHH Divider Valves - Magnetic Visual Cycle Indicator, O-Ring Seal

MSP and MHH Divider Valves - Magnetic Visual Cycle Indicator, O-Ring Seal

Regular price
$125.00
Sale price
$125.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 6-10 days, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

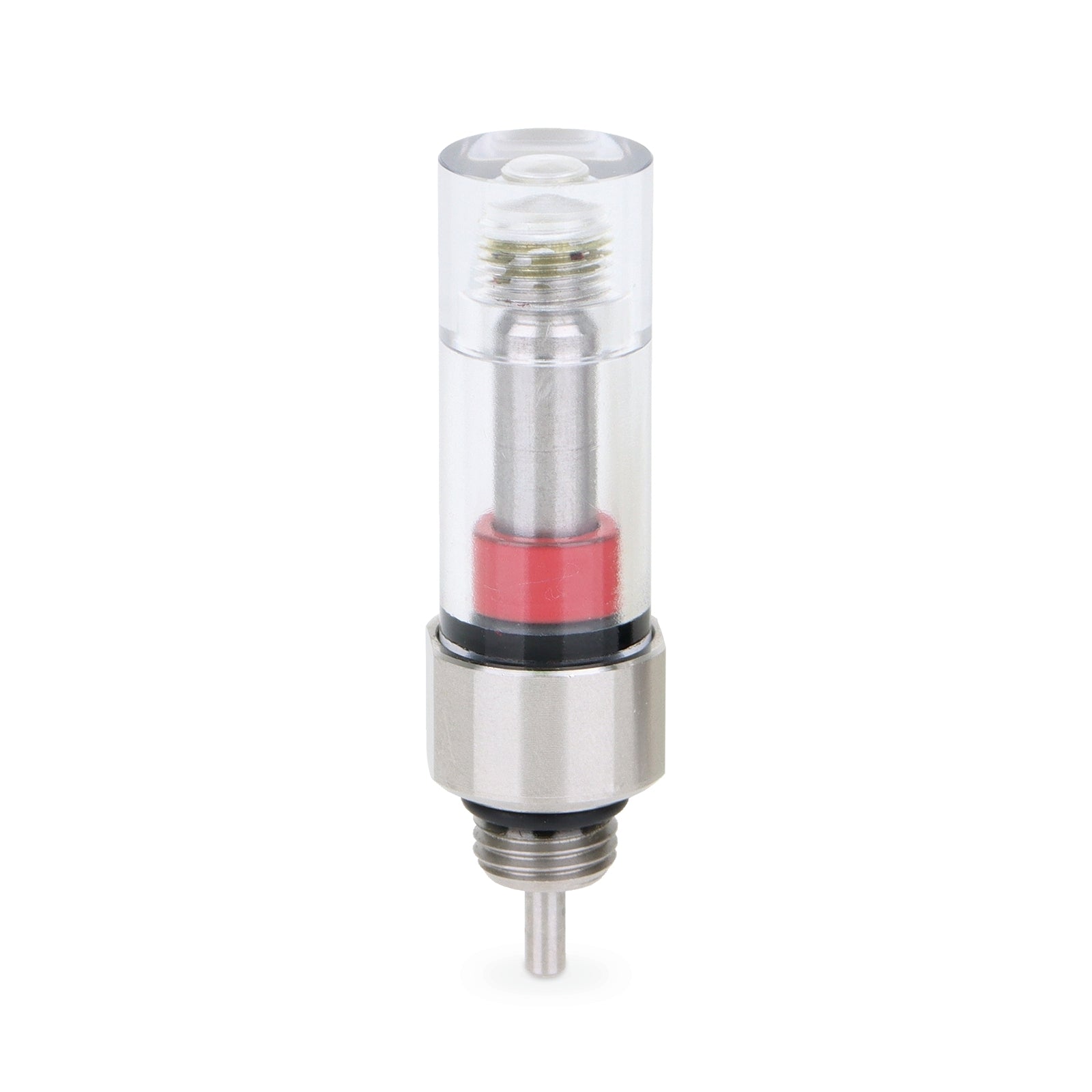

These self-contained Magnetic Visual Cycle Indicators for MSP and MHH valves are designed to allow for easy installation, while the bright orange indicator provides enhanced visual management.

For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar).

  • Makes physical contact with valve piston
  • Polycarbonate housing allows for clear view of red indicator ring
  • All parts are captured
  • FKM o-ring seal for broad compatibility with synthetic oils and greases
  • Replaces Lubriquip part number 509-932-522
UPC Product: 00633955360822
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.8 IN   |  4.572 CM
Length: .55 IN   |  1.397 CM
Width: .55 IN   |  1.397 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: .12 LBS  | .05 KG

Technical Specifications

Application On-Road Vehicles, Off-Road Equipment, Compressor Equipment
Compatible Material Oil, Grease
Indicator Type Cycle Indicator
Maximum Working Pressure (bar) 517.11
Maximum Working Pressure (kPa) 51711
Maximum Working Pressure (psi) 7500
Type Cycle Indicator
Maximum Working Pressure (MPa) 51.7
Model Trabon
