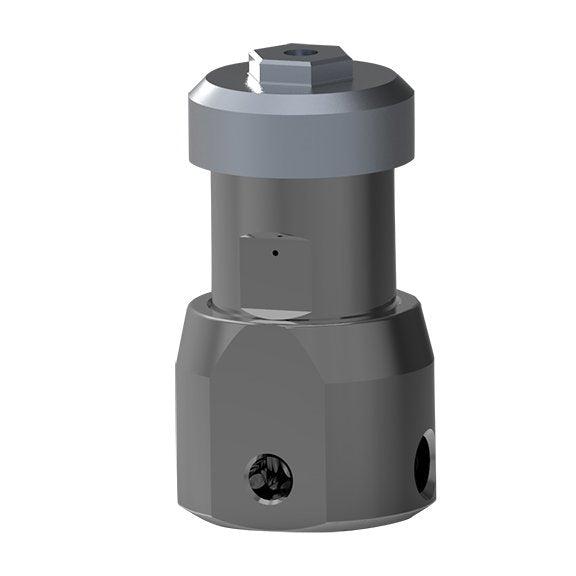

Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
- Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
UPC Product: 00769946172096
Family Code: FAMCNV
Unit of Measure: EA
Height:
6 IN
| 15.24 CM
Length:
21.59 CM
| 8.5 IN
Width:
6.75 IN
| 17.145 CM
Volume:
.199 FT3
| .006 M3
Chargeable Weight:
4.65 LBS
| 2.11 KG
Technical Specifications
| Compatible Material | Waterborne, Solventborne |
|---|---|
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 0.95 |
| Inlet Size (in) | 0.375 |
| Inlet Size (mm) | 9.5 |
| Inlet Thread Type | NPT |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kg/cm²) | 7 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 19 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Regulated Pressure (bar) | 70 |
| Maximum Regulated Pressure (kg/cm²) | 70 |
| Maximum Regulated Pressure (kPa) | 7000 |
| Maximum Regulated Pressure (psi) | 1000 |
| Maximum Viscosity (cP) | 250 |
| Maximum Working Pressure (bar) | 211 |
| Maximum Working Pressure (kg/cm²) | 211 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Regulated Pressure (bar) | 7 |
| Minimum Regulated Pressure (kg/cm²) | 7 |
| Minimum Regulated Pressure (kPa) | 690 |
| Minimum Regulated Pressure (psi) | 100 |
| Outlet Size (cm) | 0.95 |
| Outlet Size (in) | 0.375 |
| Outlet Size (mm) | 9.5 |
| Outlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Tungsten Carbide, PTFE, Acetal Homopolymer |
| Type | Back Pressure Regulator |
