Husky 515 – Dual Inlet Bulk Anti-Freeze and Windshield Solvent Transfer Packages

Husky 515 – Dual Inlet Bulk Anti-Freeze and Windshield Solvent Transfer Packages

Regular price
$3,120.69
Sale price
$3,120.69
Quantity must be 1 or more

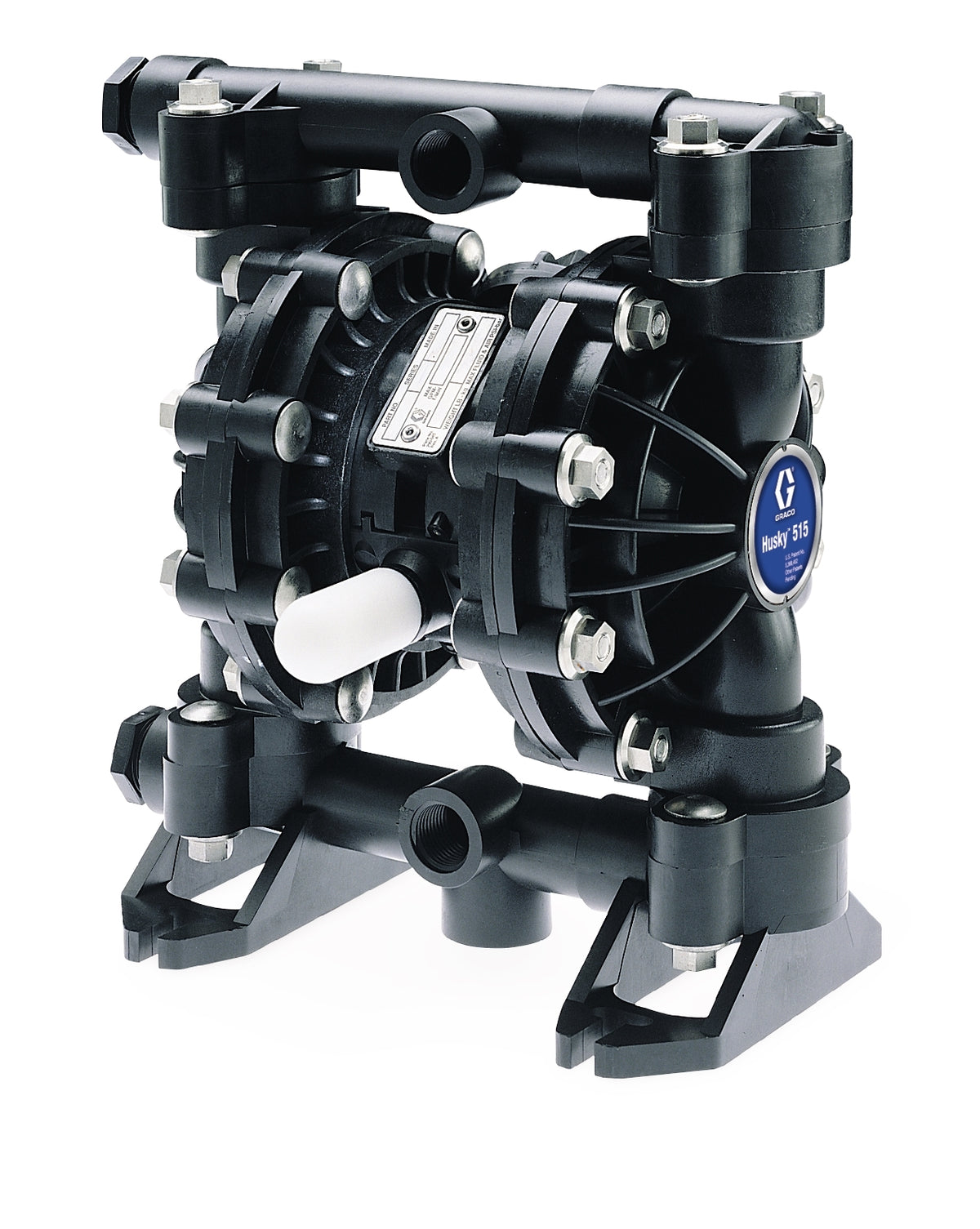

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Centre and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Split manifold option to pump multiple fluids without mixing
  • Operates on as little as 1.4 bar, 0.14 MPa (20 psi)
  • Delivery up to 56.7 lpm (15 gpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance
UPC Product: 00633955648067
Family Code: FAMPDI
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 54.83 LBS  | 24.87 KG

Technical Specifications

Application Industrial
Compatible Material Antifreeze, Windshield Washer Fluid
Fluid Inlet Size (cm) 1.9050
Fluid Inlet Size (in) 3/4
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.27
Fluid Outlet Size (in) 1/2
Fluid Outlet Size (mm) 12.70
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With 防冻剂,挡风玻璃溶剂, Anti-Freeze, Windshield Solvent, Anti-Freeze, Windshield Solvent, Antigel, solvant pour pare-brise, 부동액, 윈드실드 솔벤트, Frostschutzmittel, Windschutzscheiben-Lösungsmittel, Antivries, voorruitoplosmiddel
Includes AODD 泵, AODD Pump, AODD Pump, Pompe AODD, AODD 펌프, Luftbetriebene Doppelmembran-Pumpe, AODD-pomp, 空气调节器, Air Regulator, Air Regulator, régulateur d’air , 에어 레귤레이터, Luftregler, luchtregelaar, 流体连接软管, Fluid Connect Hose, Fluid Connect Hose, flexible de raccordement du fluide , 유체 연결 호스, Materialanschlussschlauch, vloeistofverbindingsslang, 空气连接软管, Air Connect Hose, Air Connect Hose, flexible de raccordement d’air , 에어 연결 호스, Luftverbindungsschlauch, luchtverbindingsslang, 空气截止阀, Air Shut-Off Valve, Air Shut-Off Valve, vanne d’arrêt d’air , 에어 차단 밸브, Luftabsperrventil, luchtafsluitventiel, 壁式支架, Wall Mount Bracket, Wall Mount Bracket, support pour montage mural , 벽 장착형 브래킷, Wandmontagehalterung, wandmontageconsole, 吸料配件包, Suction Kit, Suction Kit, kit d’aspiration , 흡입 키트, Ansaug-Satz, aanzuigset, 散热盘配件包, Thermal Relief Kit, Thermal Relief Kit, kit de décompression thermique, 열 부하 경감 키트, thermischer Entlastungssatz, thermische ontluchtingsset
Inlet Thread Gender Female
Inlet Thread Type NPT
Material Acetal, Buna-N
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 70
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (GPM) 15
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 70
Maximum Fluid Pressure (psi) 100
Maximum Solid Size (cm) 0.2381
Maximum Solid Size (in) 0.09375
Maximum Solid Size (mm) 2.3813
Series 515
Type Diaphragm Pump Package
Maximum Fluid Pressure (MPa) 0.7
Model Husky
