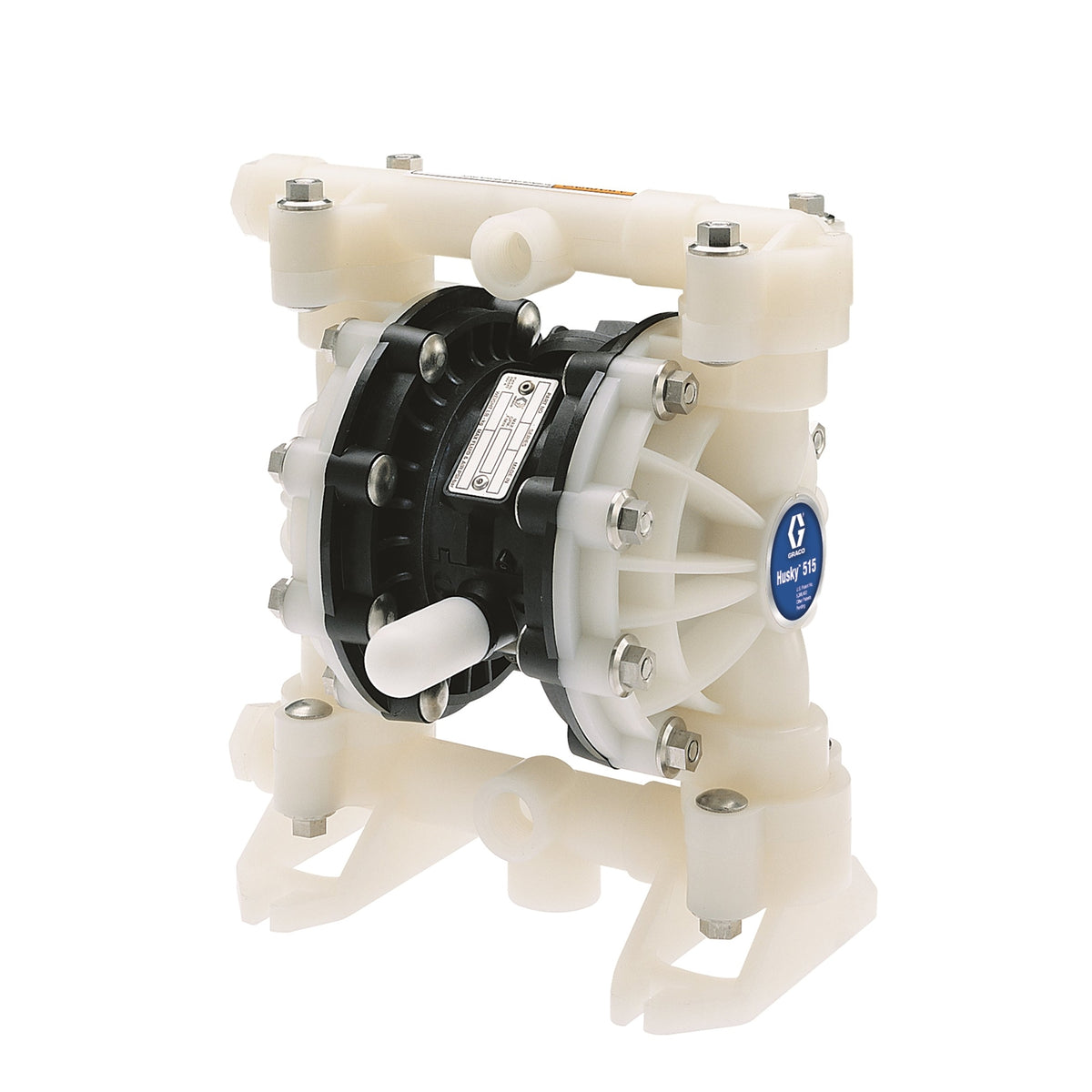

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Specifications
UPC Product: 633955904774
Family Code: FAMAOD
Unit of Measure: EA
Height:
8.3 IN
| 21.082 CM
Length:
12.6 IN
| 32.004 CM
Width:
10.8 IN
| 27.432 CM
Volume:
.654 FT3
| .019 M3
Chargeable Weight:
9.72 LBS
| 4.41 KG
Technical Specifications
Type
Pneumatic Diaphragm Pump
Air Exhaust Port Size (in)
3/8
Air Exhaust Port Thread Gender
Female
Air Exhaust Port Thread Type
NPT
Air Inlet Size (in)
1/4
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Application
Industrial
Ball Material
Urethane Duckbill
Center Section Material
Polypropylene
Compatible Material
Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Diaphragm Material
Buna-N
Fluid Inlet Size (cm)
1.27
Fluid Inlet Size (in)
1/2
Fluid Inlet Size (mm)
12.7
Fluid Inlet Thread Gender
Female
Fluid Inlet Thread Type
NPT
Fluid Outlet Size (cm)
1.27
Fluid Outlet Size (in)
1/2
Fluid Outlet Size (mm)
12.7
Fluid Outlet Thread Gender
Female
Fluid Outlet Thread Type
NPT
Fluid Section Material
Acetal
Manifold Configuration
Center Port
Material
Acetal
Maximum Air Consumption (SCFM)
28
Maximum Air Pressure (bar)
7
Maximum Air Pressure (kPa)
700
Maximum Air Pressure (psi)
100
Maximum Cycle Rate (CPM)
400
Maximum Flow Rate (GPM)
15
Maximum Flow Rate (L/min)
56.8
Maximum Fluid Pressure (bar)
7
Maximum Fluid Pressure (kPa)
700
Maximum Fluid Pressure (psi)
100
Maximum Operating Temperature (°C)
82
Maximum Operating Temperature (°F)
180
Maximum Solid Size (cm)
0.2383
Maximum Solid Size (in)
0.09375
Maximum Solid Size (mm)
2.4
Minimum Operating Temperature (°C)
4
Minimum Operating Temperature (°F)
40
Model
Husky
Overall Height (in)
10.63
Power Source
Air
Seat Material
Urethane Duckbill
Series
515
Standards Met
ATEX, CE
Weight (lb)
7.8
Maximum Fluid Pressure (MPa)
0.7
Maximum Air Pressure (MPa)
0.7
Connection Type
Threaded
diaphragm_compatible_material
Buna
