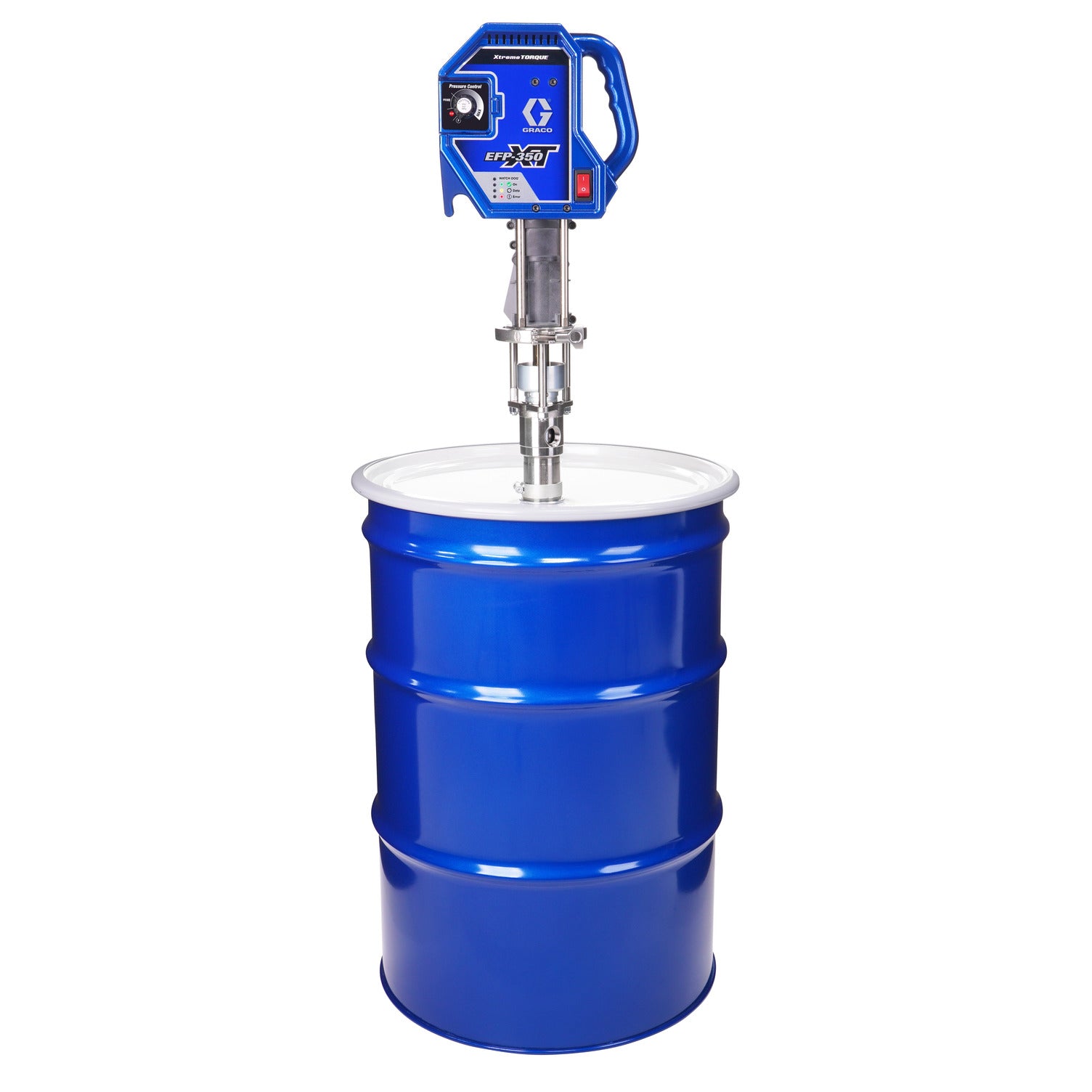

Introducing the industry's most versatile electric transfer pump! Designed for the thickest of protective and roofing coatings, this pump delivers unmatched performance with the flexibility of 120V or 230V power source. Equiped with innovative features that reduce downtime.
Perfect for Protective Coatings, Roofing, and other general fluid transfer applications.
-
Maximum Performance with Xtreme Torque Motor Technology
- High-Torque, low rpm design for maximum performance

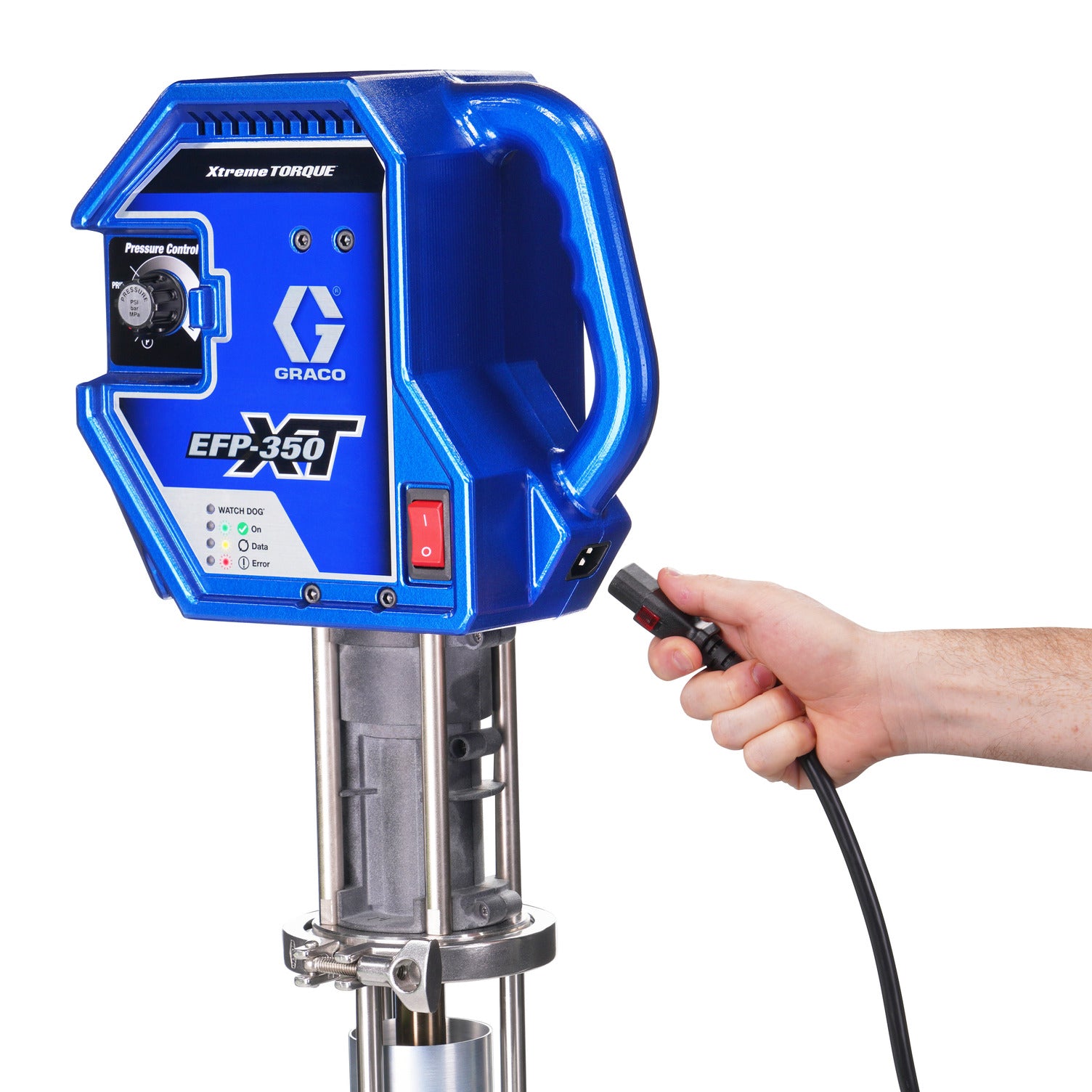

- 120v 15a or 230v 10a input power
- Zero-mainteance brushless design
- Designed for and manufactured by Graco
-
Longer Pump Life with Precision Drive
- Precise, linear action for long pump life and no side loading
- Rugged steel components for long life
- Durable composite shroud keeps debris out
-

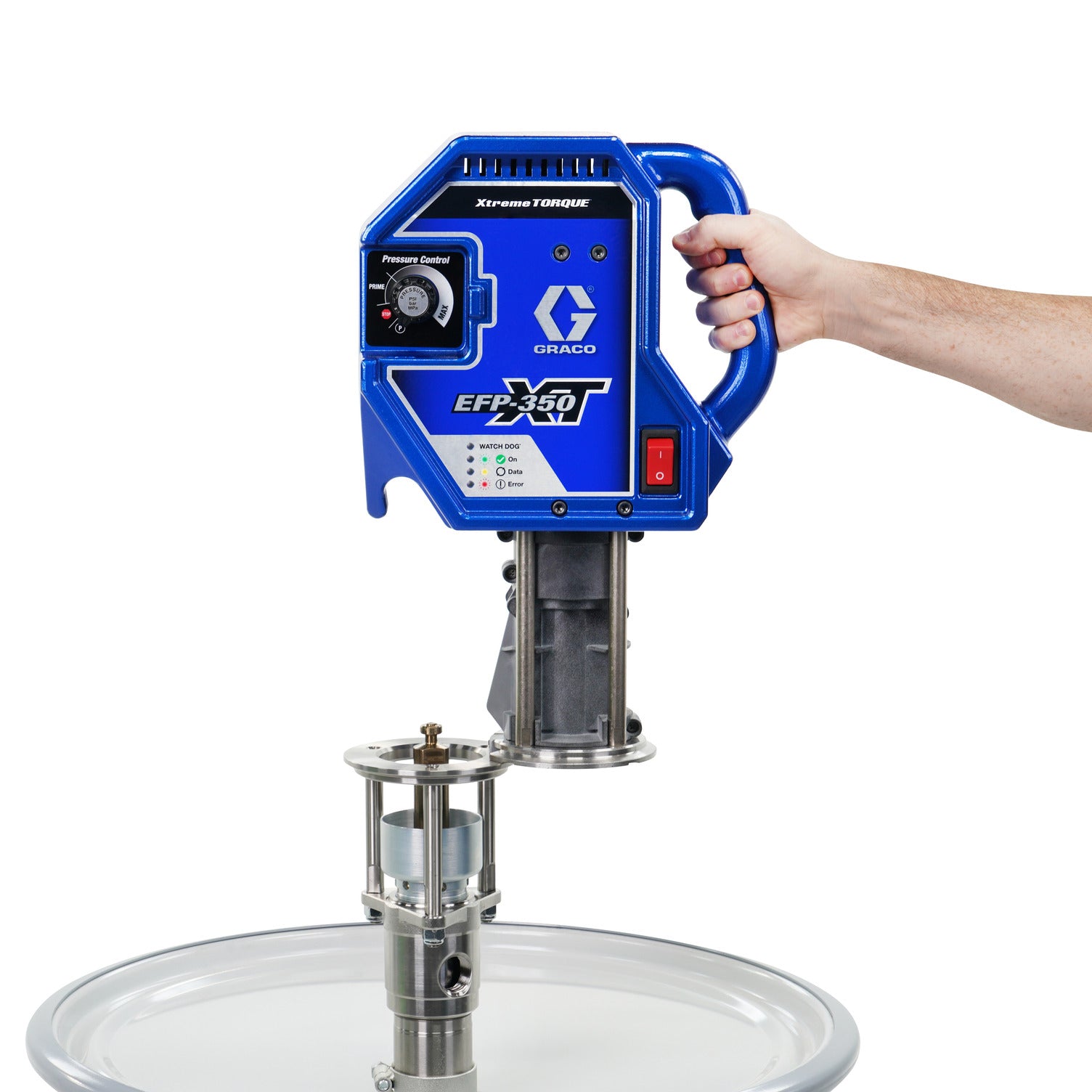

Built in Hook Design
- Built in barrel Hook designed to fit on 55 gallon barrel top
- Easily store the power head while changing material drums
-
SmartControl
- Advanced control offers consistent fluid transfer without pressure fluctuations at all pressures
-
Watchdog Pump Protection
- Prevent unwanted pump damage by shutting off the transfer pump when it is time to swap barrels
-

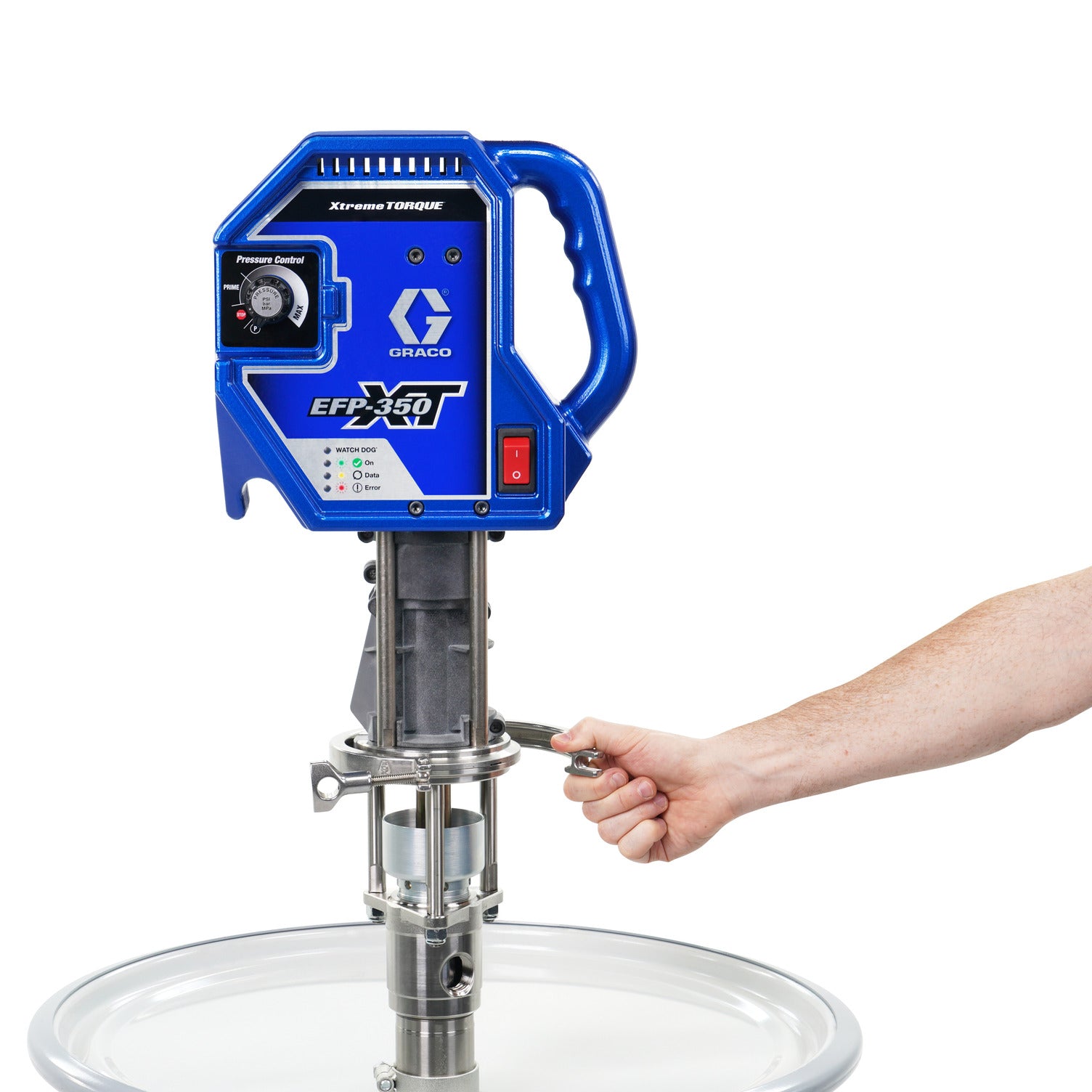

ProConnect Fluid Pump for Reduced Downtime

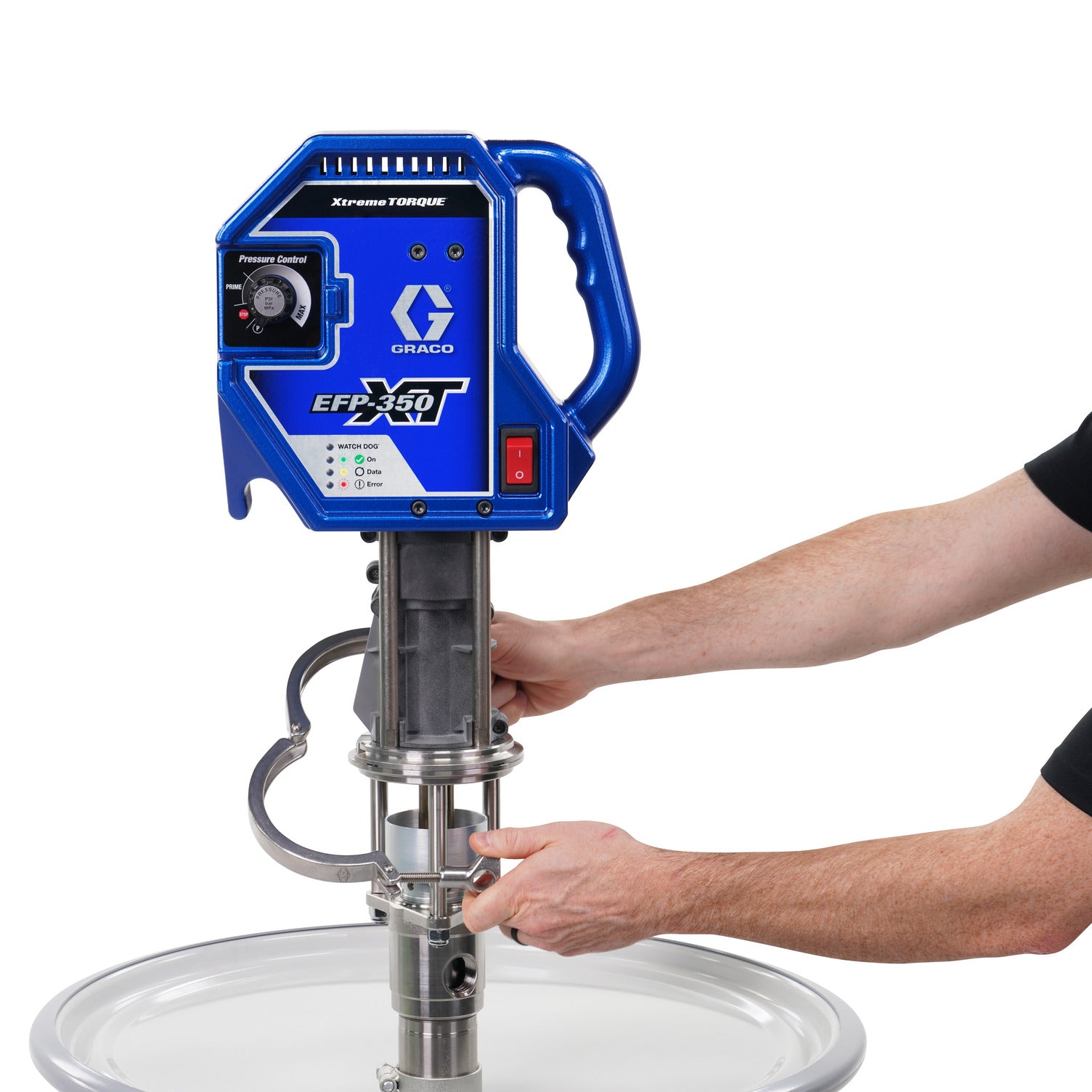

- Tool-less pump removal and replacement keeps you from having prolonged downtime
- Designed to handle the thickest coatings - up to 20,000 centipoise
- Oversized fluid passages and check balls allowing for improved fluid flow
- Adjustable ball travel for proper loading of any heavy coating
-
Optional 250 gallon Tote extension
- For the largest of jobs, you can extend the size of this pump to fit into most common IBC totes
Technical Specifications
| Application | Protective Coatings, Roofing, General Fluid Transfer |
|---|---|
| Construction | Carbon Steel, UHMWPE, 304 Stainless Steel, Chrome-Plated Steel, PTFE |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | Direct Immersion |
| Includes | Complete Pump, Hose, Fittings, Y-Strainer |
| Input Cycle Rate (Hz) | 50/60 |
| Maximum Continuous Cycle Rate (CPM) | 120 |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Fluid Output Pressure (psi) | 350 |
| Maximum Input Amperage (A) | 10/6 |
| Maximum Operating Temperature (°F) | 120 |
| Phase | 1 |
| Piston Travel (in) | 2.5 |
| Type | Feed Pump |
| Voltage (V ac) | 120/230 |
