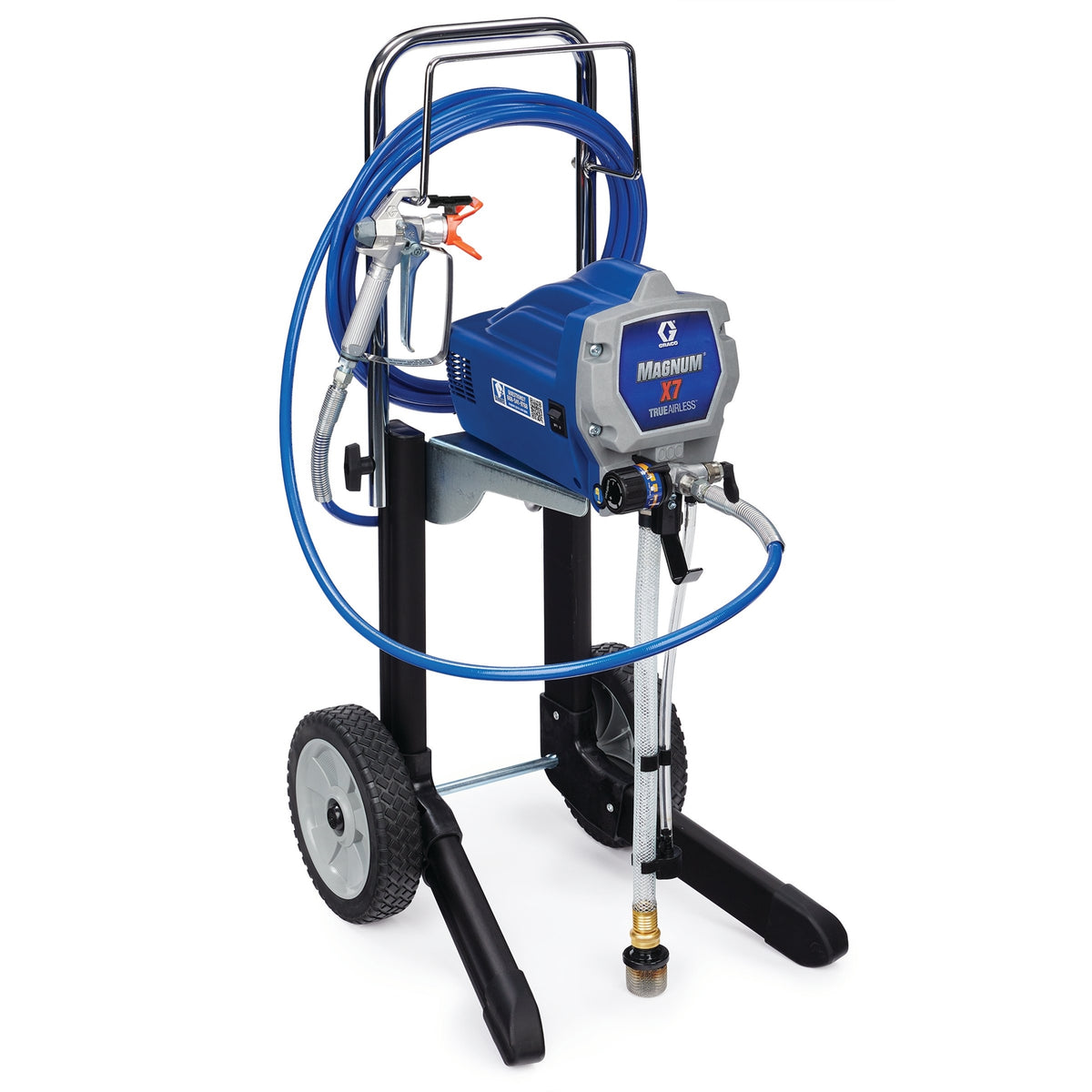

Graco 16W121 MAGNUM SPRAYER, X7,230V AP/SCA

Graco 16W121 MAGNUM SPRAYER, X7,230V AP/SCA

Regular price
$1,035.00
Sale price
$1,035.00
Quantity must be 1 or more


UPC Product:  633955480001
Family Code:  MISC
Country of Origin:  US
Unit of Measure:  EA
Height: 30 IN   |  76.200 CM
Length: 21.6 IN   |  54.864 CM
Width: 16.8 IN   |  42.672 CM
Volume: 6.3 FT3   |  0.178 M3
Shipping Weight: 36 LBS  | 16.329 KG

Technical Specifications

Engine Size (HP) .625
Fluid Inlet Size (in) 1/4
Fluid Inlet Size (mm) 6.35
Fluid Inlet Thread Type NPSM
Frame Configuration Cart
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.31
Maximum Flow Rate (L/min) 1.2
Maximum Sound Pressure Level (dB(A)) 85
Maximum Tip Size Gun 1 (in) 0.017
Maximum Working Pressure (psi) 3000
Maximum Working Pressure (kPa) 20700
Power Rating (HP) 0.625
Power Source Electric
Power Rating (kW) 0.47
Power Rating (W) 466
Maximum Working Pressure (MPa) 20.7
Pressure Control Type Adjustable
Model Magnum
Maximum Working Pressure (bar) 207
Weight (kg) 12
Weight (lb) 27
Series X7
Recommended Annual Usage (gal) 125
Type Airless Sprayer
Compatible Tip Size (in) .011, .013, .015, .017
Phase 1
Motor Type Universal
Pump Rod Type Stainless Steel
Minimum Generator Power (W) 1500
Number of Guns 1
