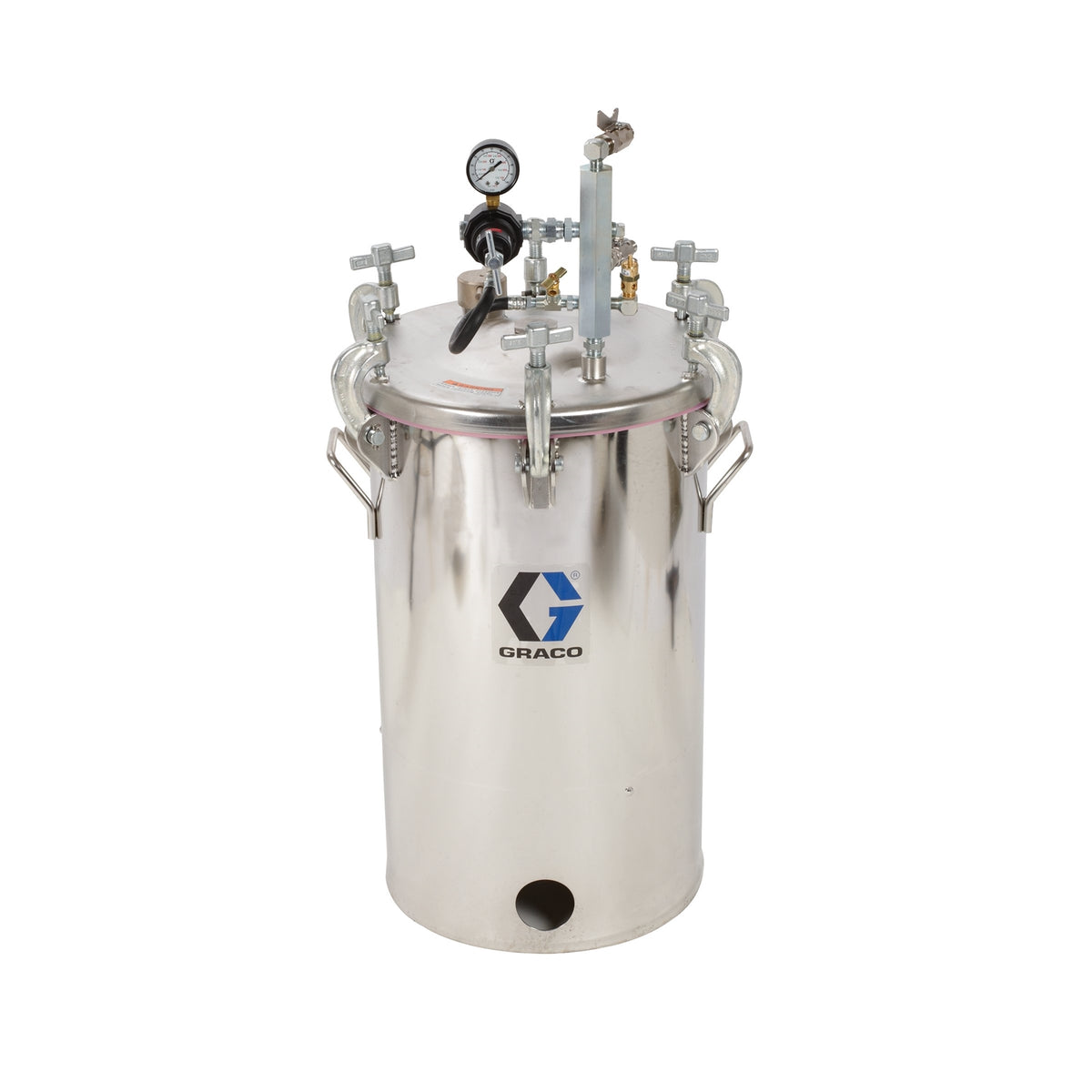

Industrial-grade pressure tanks used to supply, agitate and pressurise finishing liquids. For professional use only.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- 38 Litre (10 Gallon) High-Pressure Tank
- Maximum Air Inlet Pressure 7 bar (0.7 MPa, 100 psi)
- Maximum Working Fluid Pressure 7 bar (0.7 MPa, 100 psi)
UPC Product: 00633955936072
Family Code: FAMQFP
Unit of Measure: EA
Height:
38.4 IN
| 97.536 CM
Length:
22.8 IN
| 57.912 CM
Width:
22.8 IN
| 57.912 CM
Volume:
11.55 FT3
| .327 M3
Chargeable Weight:
120.253 LBS
| 54.52 KG
Technical Specifications
| Inlet Size (cm) | 0.635 |
|---|---|
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Type | NPT |
| Maximum Volume Capacity (gal) | 10 |
| Maximum Volume Capacity (L) | 38 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Type | NPSM |
| Wetted Material | Stainless Steel, Santoprene, Polyamide, PET |
| Type | Tank |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Maximum Working Pressure (MPa) | 0.7 |
