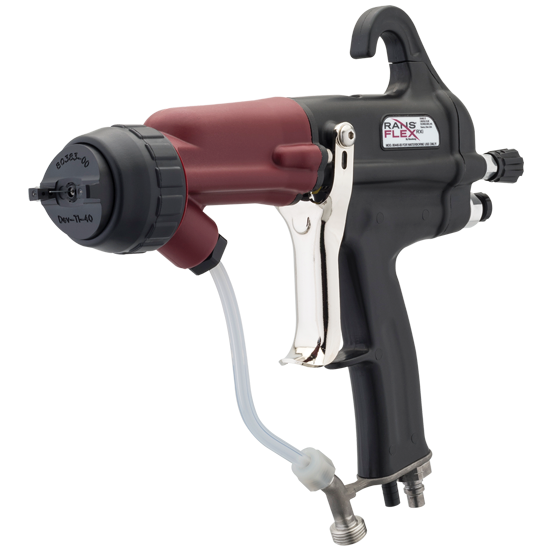

The all new RansFlex RFXi 65kV spray gun delivers features and benefits that surpass all other electrostatic applicators. RFXi is a low pressure air atomizing electrostatic spray gun powered by an inbuilt turbine generator. Designed with the operator in mind, the handle incorporates many fit and feel improvements with better balanced weight to reduce operator fatigue.
RFXi uses indirect electrostatic charging technology which means there is no longer any need to isolate the waterborne paint feed containers or paint pumps with expensive isolation cages or tanks, saving users significant expense and floor space.
DeVilbiss World renowned air cap atomization technology is coupled with Ransburg electrostatic power to provide superior atomization, transfer efficiency and performance, all backed by a 5-year limited warranty.
Typical applications
Aerospace industry
General Metal spraying
Marine and Yacht applications
Commercial and off Road Vehicles
Intricate metal components and parts
Plus many others…
Universal Water Based Paint Compatibility Sprays straight from your regular paint pumps or pressure feed tanks without the need for expensive isolation tables or enclosures.
World Renowned DeVilbiss Atomisation Technology For superior atomization and finish quality.
Ergonomic Fit and Feel with easy to use Controls The curved gun handle required less “grip-force” with a softer trigger pull which means users experience less joint or muscle strain reducing the risk of RSI and operator fatigue. On/Off voltage switch is on the gun.
Triple Turbine Protection Three phases of turbine protection include a divorced turbine air supply cartridge, sealed nozzle/atomisation passages and the strategic turbine location provide a long trouble free working life.
Designators
Dash no.
Includes
A
1
T Series 1.4mm (80383-00, 80239-14, 74963-05)
B
1
Adjustable Fluid (80262-00)
C
1
2-Finger Trigger (80211-00)
D
1
STD Fluid Inlet Tube (80269-45)
E
1
Fluid Hose, 10m (80303-10)
F
2
Standard Air Hose, 10m (80558-10, 80868-00)
Technical Specifications
Atomization
T Series 1.4MM
Fluid Control
Adjustable
Trigger Style
2-Finger
Fluid Tube
STD
Fluid Hose
10m
Air Hose
10m, Standard
Environmental/Physical
Applicator Length:
254mm (10 inches)
Weight: (Without Hose)
600 grams (21.3 oz.)
Hose 80558-XX Lengths (Std):
5m, 10m, 15m and 20m
Electrical
Operating Voltage:
65kV DC (-) maximum
Current Output:
120 microamperes maximum
Paint Resistance:*
Water base paint only * Use Model No. 76652, Test Equipment
Part Sprayability:
Determine sprayability of part to be coated using 76652, Test Equipment
Mechanical
Fluid Flow Capacity:
1000 ml/minute** This reflects the maximum fluid volume the applicator can deliver. The maximum spray volume that can be effectivelatomized depends on fluid rheology, spray technology, and finish quality required.
