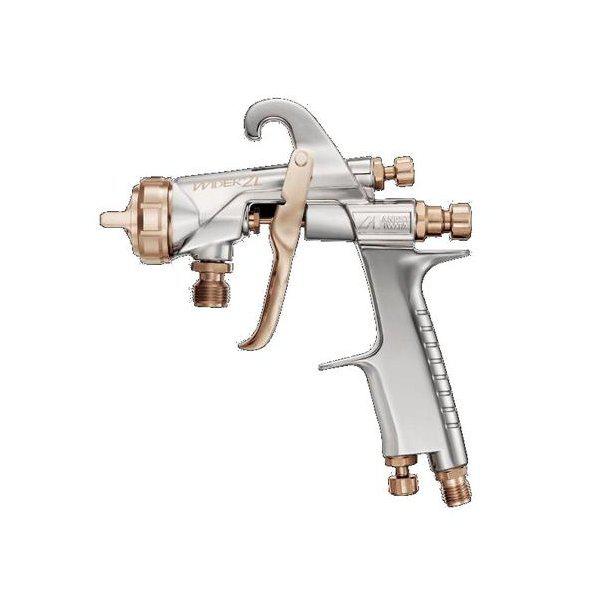

Ergonomic Design with the Focus on Functionality. In the course of applying an ergonomic design throughout, we also achieved a 5-g weight reduction. Every adjustment knob is tapered with deeper grooves, providing a surer grip for easier fine adjustments. We also built in a bushing into the back of the needle valve spring to make paint output adjustment smoother. The tip of the trigger has a smoother shape, for easier operation when applying lower paint volumes.
| Type of feed | Pressure |
| Fluid Nozzle diameter (Fmm) | 1.4 |
| Atomizing air pressure (MPa) | 0.2 |
| Pressure in air cap (MPa) | 0.069 |
| Air consumption (L/min) | 470 |
| Fluid output (mL/min) | 500 |
| Pattern width (mm) | 300 |
| Atomization | High atomization |
| Air Cap | WIDER2L-G2 |
| Application | Large parts and vehicles, line painting |
