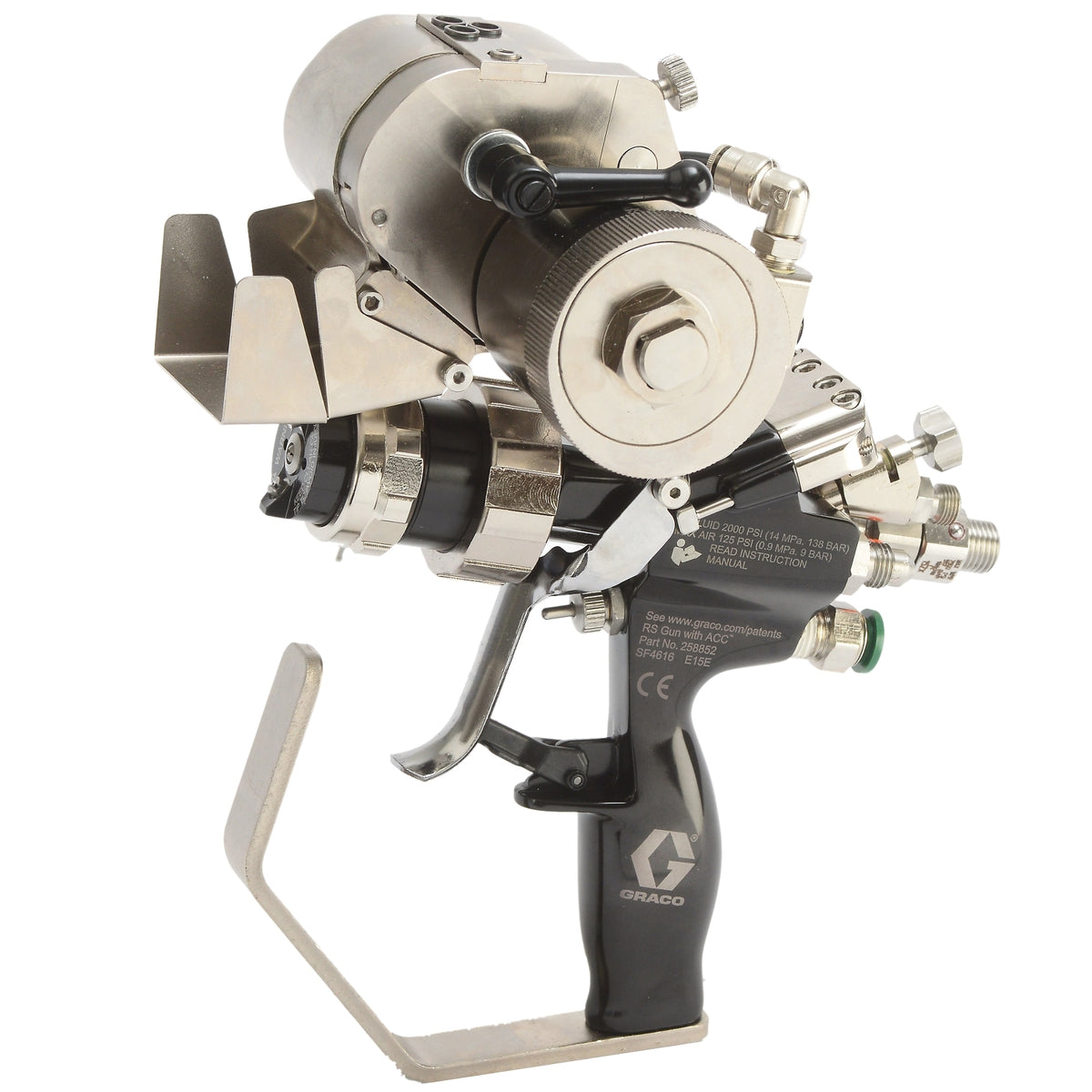

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Makes production easier
- Simple, quick start up and shut down
- Quick tool-less blade change
- No need to adjust needle settings after maintenance
-
Improves product quality
- Lightweight cutter gives better chopping control
- Easy one-hand cutter speed control
- Superior spray pattern
-
Improves operator comfort for increased job satisfaction
- Lighter, ergonomic gun reduces fatigue
- Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
- No problems soaking the RS Gun in solvents overnight
-
Saves material costs
- Air Assist Containment (AAC®) standard on all RS Guns
- Lower pressure reduces overspray
UPC Product: 00633955591820
Family Code: FAMGCA
Unit of Measure: EA
Height:
4.8 IN
| 12.192 CM
Length:
16.8 IN
| 42.672 CM
Width:
13.2 IN
| 33.528 CM
Volume:
.62 FT3
| .018 M3
Chargeable Weight:
6.413 LBS
| 2.908 KG
Technical Specifications
| Compatible Material | Polyester Resin, Gel-Coat |
|---|---|
| For Use With | FRP 系统, FRP システム, FRP System, Sistema FRP, FRP 시스템 |
| Gun Type | Chop Gun |
| Gun Weight (g) | 1057 |
| Gun Weight (kg) | 1.06 |
| Gun Weight (lb) | 2.33 |
| Gun Weight (oz) | 37.28 |
| Includes | CST443 喷嘴, CST443 チップ, CST443 Tip, Boquilla CST443, CST443 팁, 刀具, カッター, Cutter, cortador, 커터 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kg/cm²) | 8.79 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Fluid Pressure (bar) | 138 |
| Maximum Fluid Pressure (kg/cm²) | 141 |
| Maximum Fluid Pressure (kPa) | 13800 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Fluid Temperature (°C) | 38 |
| Maximum Fluid Temperature (°F) | 100 |
| Minimum Air Inlet Pressure (bar) | 5.5 |
| Minimum Air Inlet Pressure (kPa) | 550 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Model | RS |
| Trigger Lock | Locking |
| Type | Chop Gun |
| Chop Gun Type | With Cutter |
| Mix Type | External Mix |
