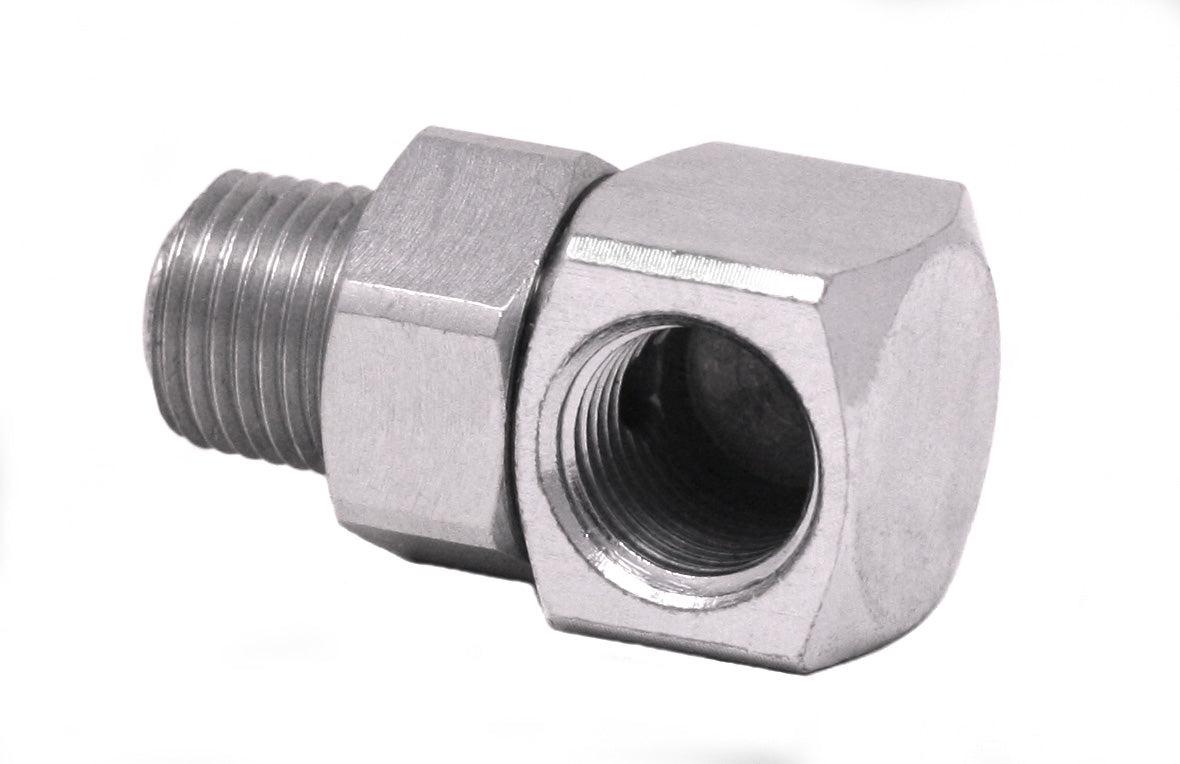

The Trabon Straight and Angle Swivels are available in standard ball bearing or compact types. Primarily designed for medium to high pressure service in centralized oil and grease systems, these swivels provide a simple and inexpensive means of making line connections between either stationary, or oscillating surfaces.
UPC Product: 633955331167
Family Code: FAMCPT
Unit of Measure: EA
Height:
.65 IN
| 1.651 CM
Length:
.55 IN
| 1.397 CM
Width:
1 IN
| 2.54 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
.05 LBS
| .02 KG
Technical Specifications
| Angle (°) | 90 |
|---|---|
| Application | On-Road Vehicles |
| Compatible Material | Oil, Grease |
| Connection Type | Threaded |
| For Use With | Pipe |
| Material | Steel |
| Maximum Working Pressure (bar) | 34 |
| Maximum Working Pressure (kPa) | 3400 |
| Maximum Working Pressure (psi) | 500 |
| Size A (in) | 1/8 |
| Size A (mm) | 3.175 |
| Size B (in) | 1/8 |
| Size B (mm) | 3.175 |
| System of Measurement | Imperial |
| Thread Type | NPT |
| Type | Elbow |
| Style | Swivel |
| Maximum Working Pressure (MPa) | 3.4 |
