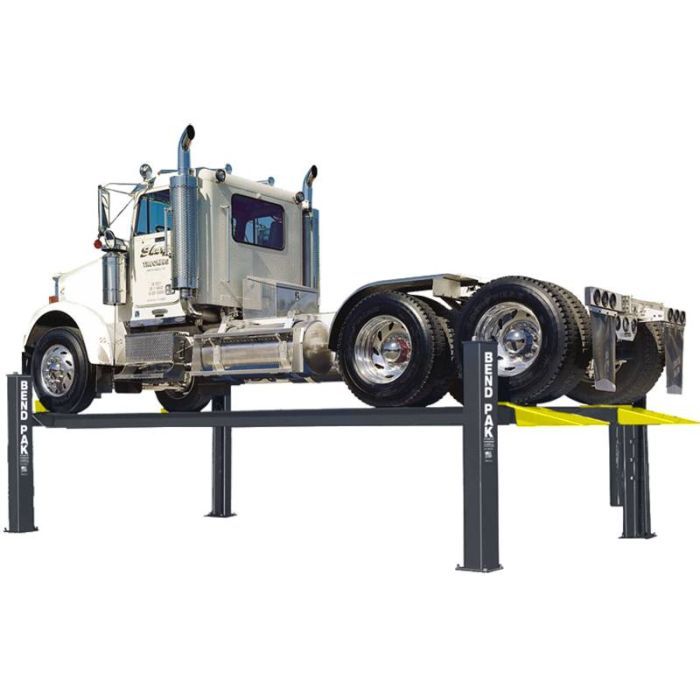

HDS-40 40,000-lb. Capacity Four-Post Lift Standard

HDS-40 40,000-lb. Capacity Four-Post Lift Standard

$32,695.00

See Lower Price in Cart

Quantity must be 1 or more
Request More Information

Our sales team typically responds within 1 business day.

Sign-up to get 5% off your first order
Click for recommended parts and accessories


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.
Specifications HDS-40
  • 40,000-lb. lifting capacity
  • Supersized 12" diameter cable sheaves
  • Galvanized lifting cables
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Runways feature a durable matte finish
  • Optional rolling jacks

Capacity

Lifting Capacity*
40,000 lbs. (18,144 kg)
*Max Capacity / Front Axle
20,000 lbs. (9,072 kg)
*Max Capacity / Rear Axle
20,000 lbs. (9,072 kg)

Rise

A - Min. Runway Height:
9.5" (241 mm)
B - Max. Rise:
60" (1,524 mm)
C - Max. Lifting Height:
69.5" (1,765 mm)
Time to Full Rise:
75 seconds

Outside Dimensions

D - Overall Width:
153.5" (3,899 mm)
E - Outside Length:
257" (6,528 mm)
F - Overall Length:
313.75" (7,969 mm)
G - Height of Columns:
91.25" (2,318 mm)

Inside Dimensions

H - Width Between Columns:
133.5" (3,391 mm)
I - Drive-Thru Clearance:
109" (2,769 mm)

Runways

J - Runway Width:
28" (711 mm)
K - Length of Runways:
255.5" (6,490 mm)
L - Width Between Runways:
40.75" (1,035 mm)
M - Runway Centerline:
74" (1,880 mm)
N - Outside Edge of Runways:
102" (2,591 mm)

Minimum Wheelbase

Rated Capacity:
185" (4,699 mm)
75% Capacity:
160" (4,064 mm)
50% Capacity:
135" (3,429 mm)
25% Capacity:
110" (2,794 mm)

Locking

Locking Positions:
13
Lock Spacing:
Every 4" / 100 mm

Power Unit

Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB

Shipping

Weight:
6,748-lbs. (3,060 kg)
Dimensions:
266'' x 33'' x 37'' (6,756 mm x 838 mm x 940 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
